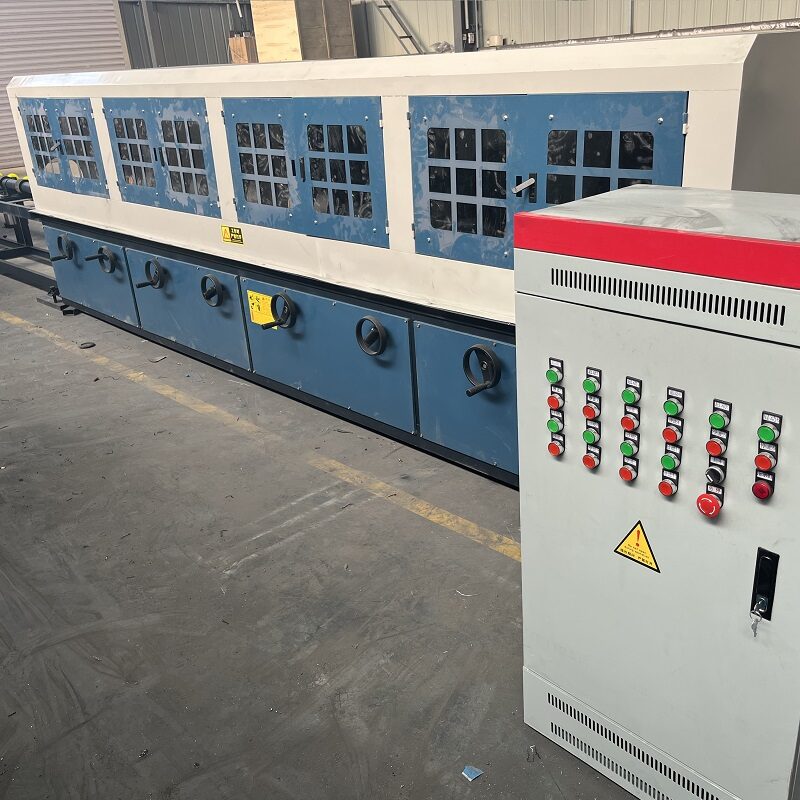

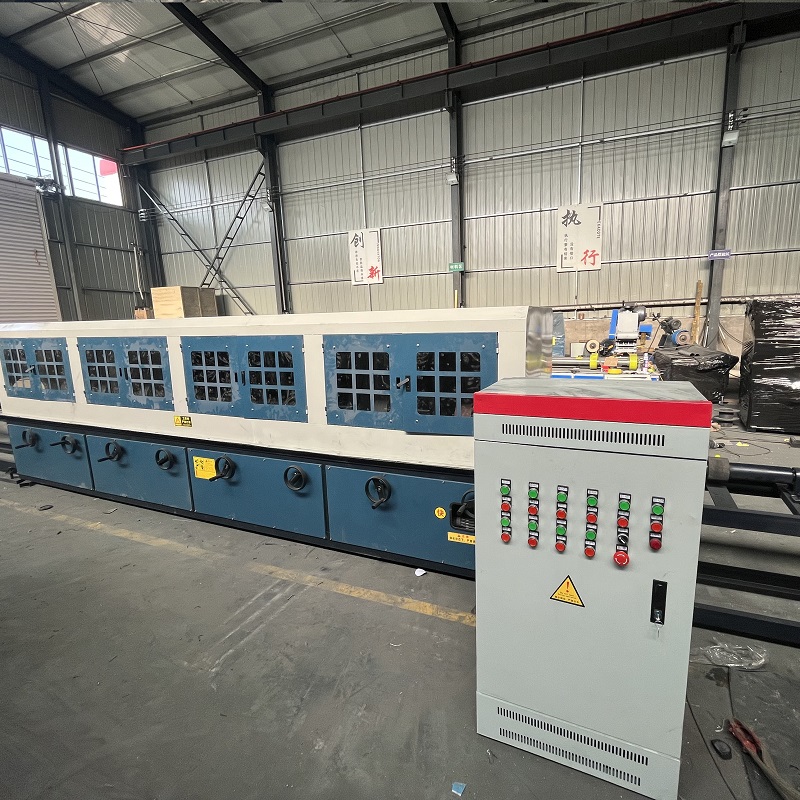

8-Station Mirror Finish Pipe Polishing Machine

Pipe polishing machine- Polishing is a process in which rough and coarse surfaces become smooth and shiny, and this process is done through grinding machines or polishing machines (Buffing machines). The pipe polishing machine can be equipped with various polishing wheels to create different drawing effects, widely used in polishing of stainless steel, steel non-ferrous metals, plastic, and wood on the grinding, polishing, fine polishing.

Product Specification

• Model number: WSPR-8-160
• Vertical type 8 station pipe polishing machine
• Working capacity (min.and max.diameter) : 8-160mm
• Working capacity (min.and max.pipe length): 500mm to any
• Station no.:8
• Feeding speed:1-6m/min(adjustable, stepless speed adjusting)
• Abrasive wheel speed:2800rpm
• Abrasive wheel size:Dia250xthickness80mm,hole32mm
• Wheel motor:4kw * 8pieces
• Feeding motor:5kw
• Air blower motor:2kw * 2pieces
• Total power:34kw
• Consumption:68A
• Voltage:3-phase customized
• Standard with 1 set grinding wheel
• Gross weight:2000kgs
• Dimension:4850x1100x1200 (wooden case size)

Hangzhou wise machinery co., ltd. offers a complete line of finishing equipment for tube and pipe processing. Designed to limit your downtime and minimize material waste, our equipment is customized to fit your specifications and integrate seamlessly within your production line. We prioritize operator safety and efficiency by offering both manual and automatic pipe tube feeding solutions. Contact us to find the full finishing system or single machine to fit your needs.

Tube polishing machine – WSPR-8-160 – is the perfect choice for finishing the surface of round pipe and tubes.
It is simple to work with. You only have to insert the pipe manually and the guide wheel will push the pipe go forward in the meantime the grinding wheel will polish the pipe automatically.
