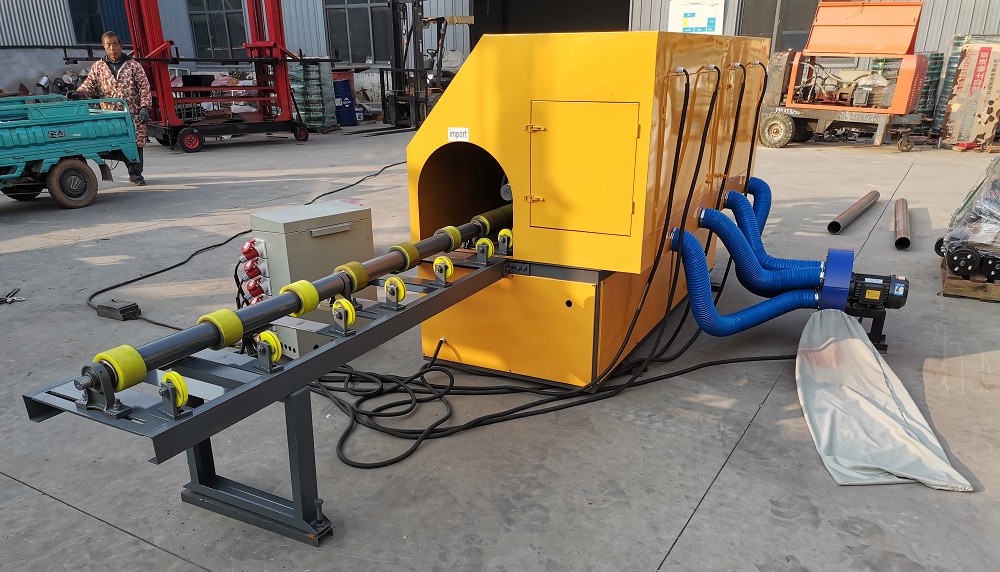

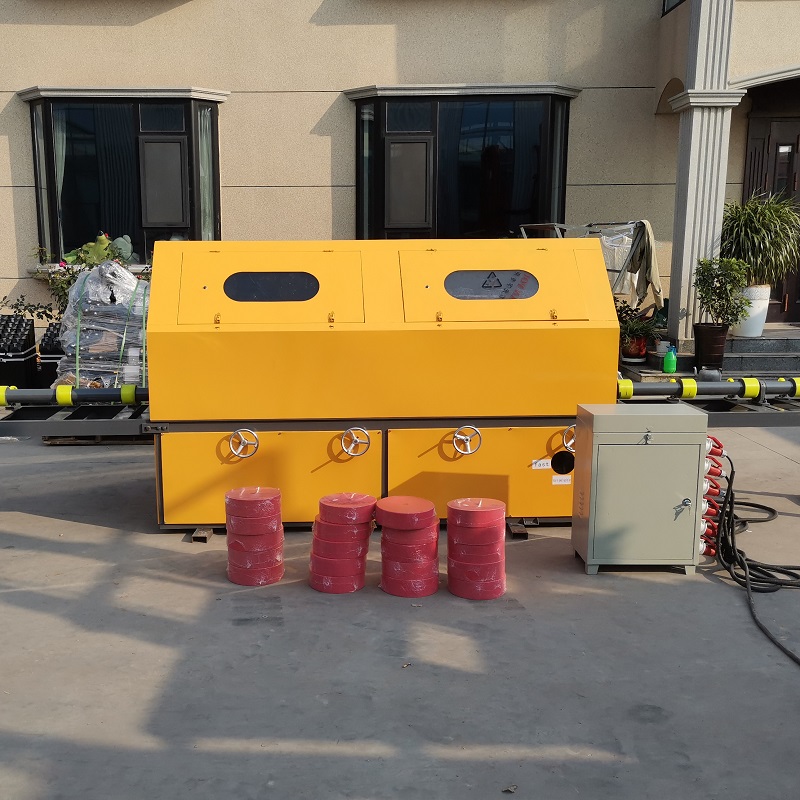

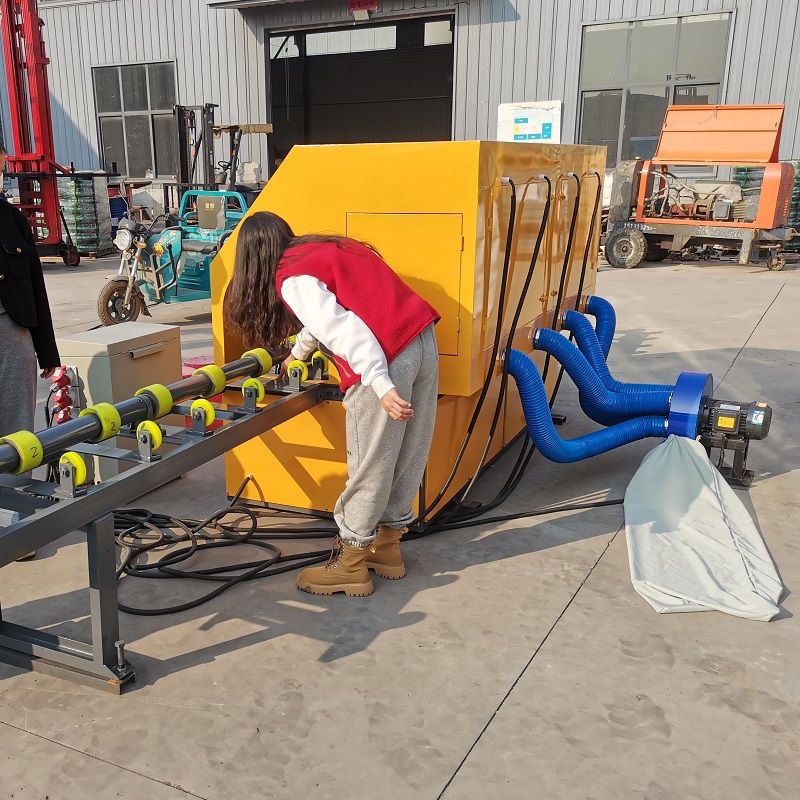

Fire groove pipe polishing machine
- Technical Details
- Fire groove pipe polishing machine
- Model no.: WSPR-4-380
- Working capacity (min.and max.diameter) 50-380mm
- Working capacity (min.and max.pipe length) 200mm to any
- Station no. 4
- Feeding speed 1-6m/min(adjustable, stepless speed adjusting)

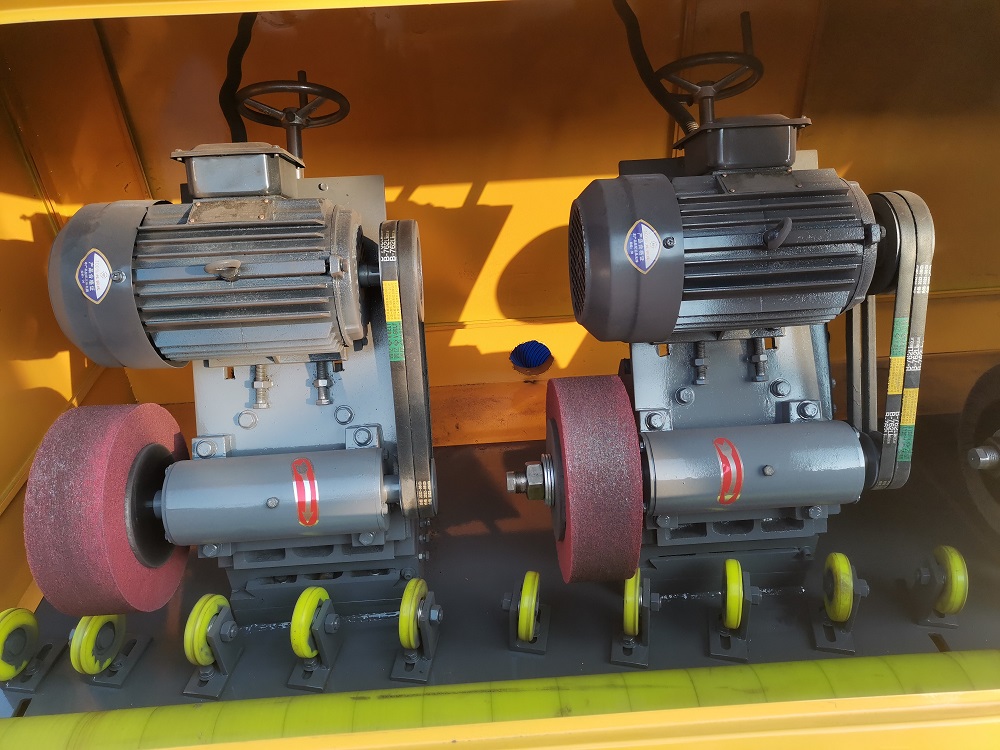

- Abrasive wheel speed 2800rpm
- Abrasive wheel size Dia250xthickness80mm,hole32mm
- Wheel motor 4kw * 4pieces
- Feeding motor 1.5kw
- Air blower motor 2.2kw
- Total power 20kw
- Voltage 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight 1300kgs
- Dimension 2400x1100x1450 (wooden case size)
PRODUCT SPECIFICATION
- Technical Details
- Fire groove pipe polishing machine
- Model no.: WSPR-4-380
- Working capacity (min.and max.diameter) 50-380mm
- Working capacity (min.and max.pipe length) 200mm to any
- Station no. 4
- Feeding speed 1-6m/min(adjustable, stepless speed adjusting)
- Abrasive wheel speed 2800rpm
- Abrasive wheel size Dia250xthickness80mm,hole32mm
- Wheel motor 4kw * 4pieces
- Feeding motor 1.5kw
- Air blower motor 2.2kw
- Total power 20kw
- Voltage 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight 1300kgs
- Dimension 2400x1100x1450 (wooden case size)
PICTURES
