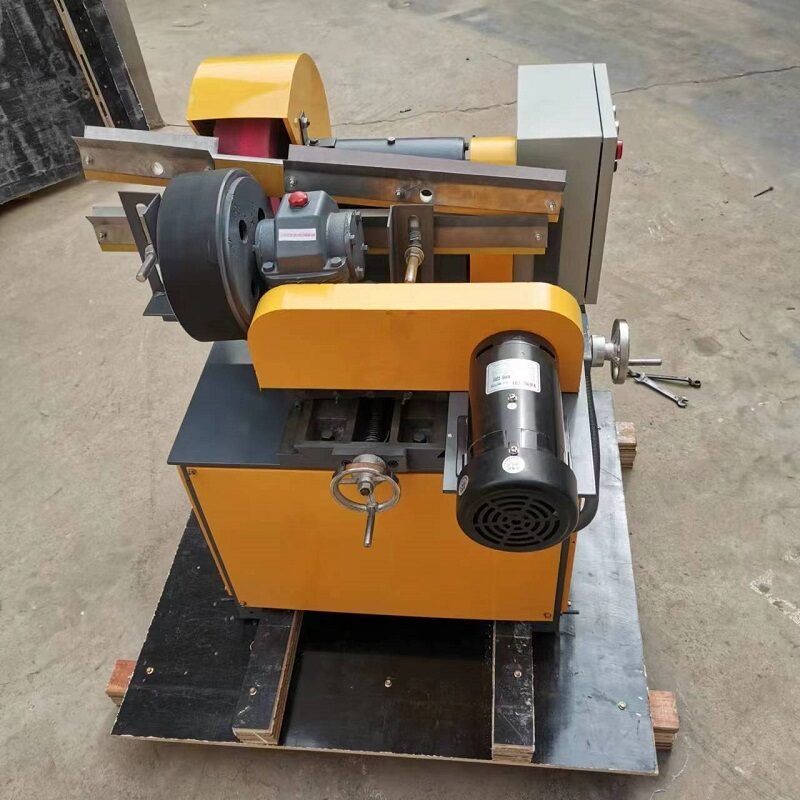

Wood polishing machine

Wood polishing machine is for round shape wooden product polishing, such as wood pipe and wood stick grinding and polishing. This machine can handle both wooden pipe and solid wooden stick polishing.

PRODUCT SPECIFICATION

• Wood polishing machine
• Model:WSPR-1-100
• Working capacity (min.and max.diameter):2-100mm
• Working capacity (min.and max.pipe length):1-3000mm
• Station no.:1
• Feeding speed: 1-6m/min(adjustable, stepless speed adjusting)
• Abrasive wheel speed: 2800rpm
• Abrasive wheel size:Dia250xthickness80mm,hole32mm
• Wheel motor:4kw
• Feeding motor:0.4kw
• Total power:4.4kw
• Consumption:9A
• Voltage:single-phase / 3-phase customized
• Standard with 1 set grinding wheel
• Gross weight:200kgs
• Dimension:950x950x1100mm (wooden case size)


APPLICATION

Wood polishing machine are for below product polishing.

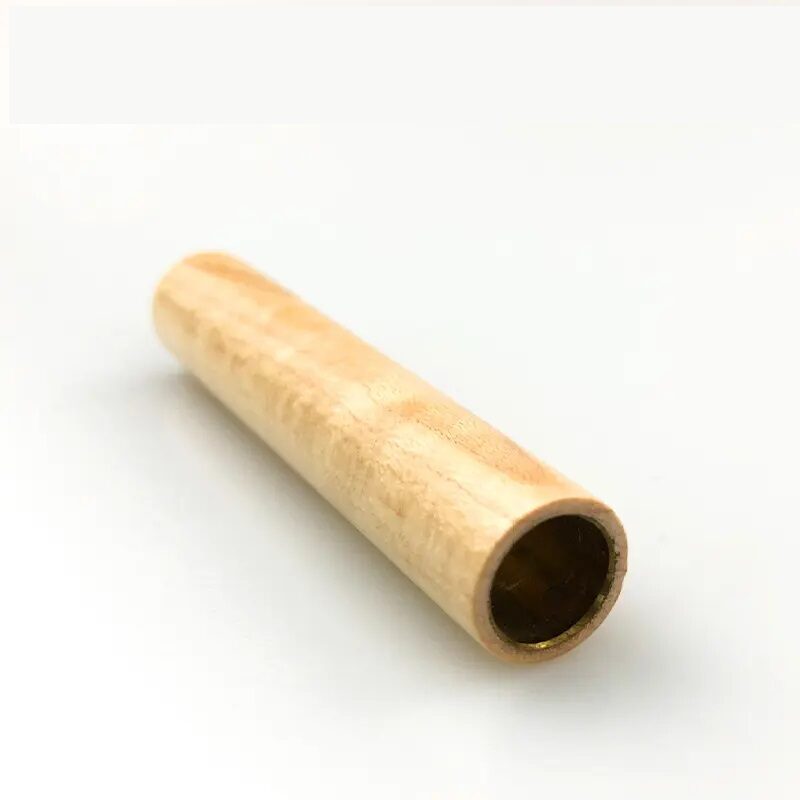

• Wooden tube polishing
• Wooden pipe polishing
• Wood stick polishing
• Other round wood product polishing
• Metal pipe and tube polishing

FAQ

• What else material can be polished by this machine?
• This polishing machineworks for not only wood pipe but also plastic pipe and metallic pipe polishing.

• What is the difference between single-station machine and multi-station polishing machine?
• Single-head machine means there is only single one polishing wheel while for multi-head machine there is several working position with different material of polishing

• What kind of grinding wheel do we use on our machine?
• We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.

• What is the life span of the abrasive wheel?
• 3500meters rodpolishing each.

• Do you have machine in stock?
• Yes, we have ready stock for regular machines, but if your voltage are different from what in China we will need 7-10days to customize motor for you.
