2mm 4mm Rod polishing machine
- Technical Detail
- 2mm 4mm Rod polishing machine
- Model:WSPR-1-100
- Working capacity (min.and max.diameter):2-100mm
- Working capacity (min.and max.pipe length):1-3000mm
- Station no.:1
- Feeding speed: 1-6m/min(adjustable, stepless speed adjusting)
- Abrasive wheel speed: 2800rpm
- Abrasive wheel size:Dia250xthickness80mm,hole32mm
- Wheel motor: 4kw
- Feeding motor: 0.4kw
- Total power: 4.4kw
- Consumption:9A
- Voltage:single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:200kgs
- Dimension:950x950x1100mm (wooden case size)

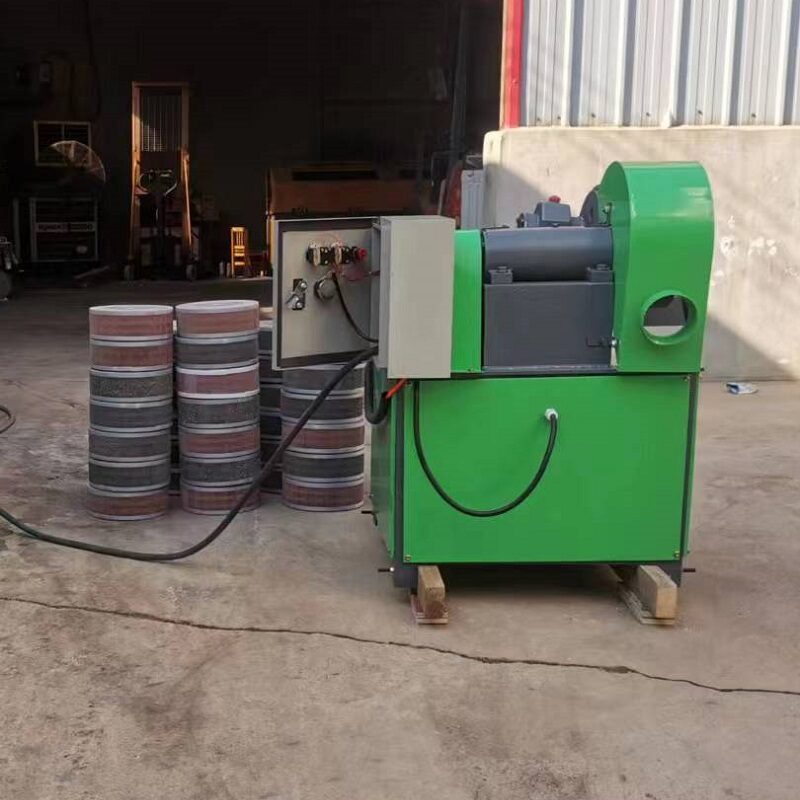

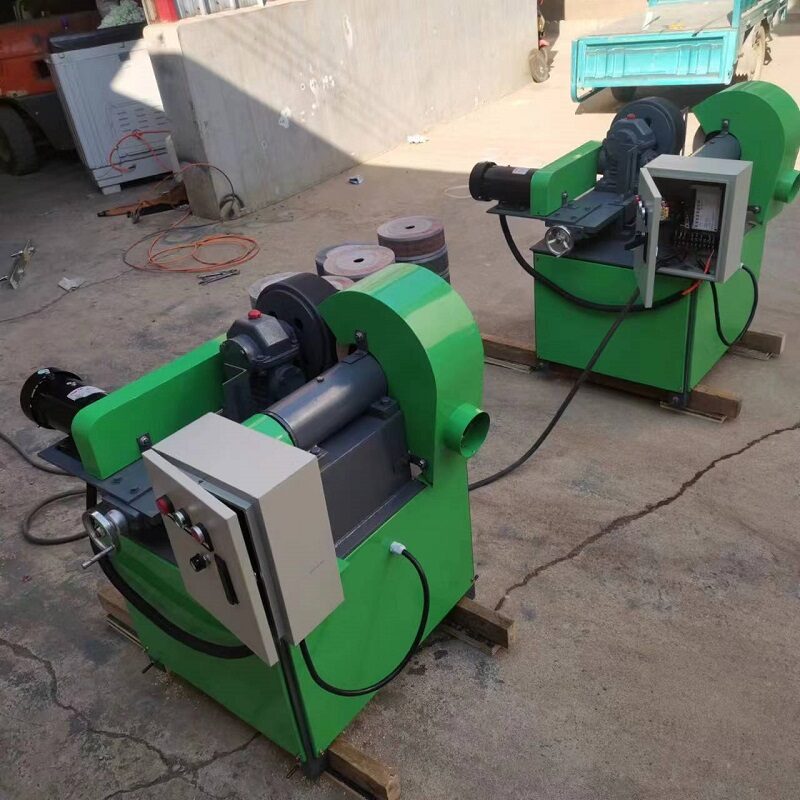

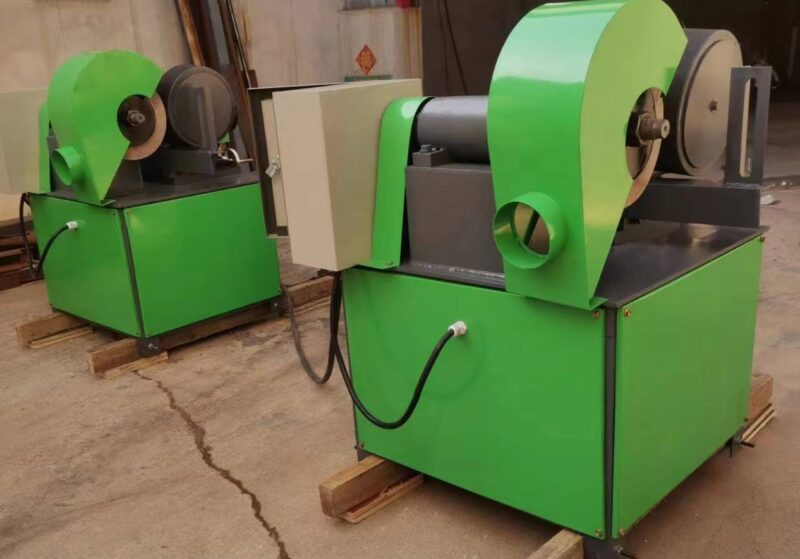

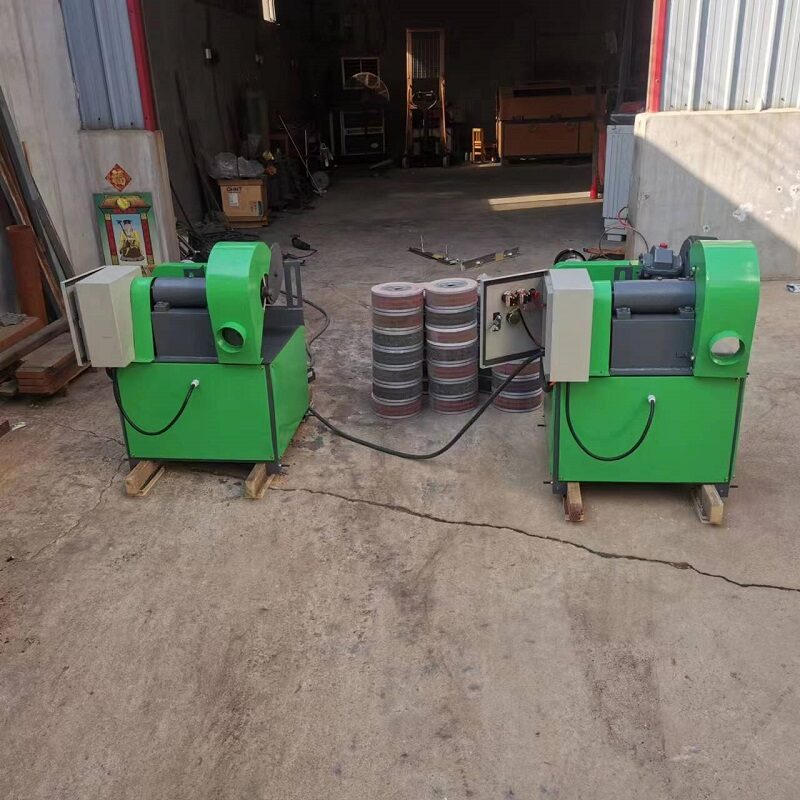

2mm 4mm Rod polishing machine is for slender rod polishing. The minimum diameter can be 2mm, 3mm or 4mm.
PRODUCT SPECIFICATION
- 2mm 4mm Rod polishing machine
- Model:WSPR-1-100
- Working capacity (min.and max.diameter):2-100mm
- Working capacity (min.and max.pipe length):1-3000mm
- Station no.:1
- Feeding speed: 1-6m/min(adjustable, stepless speed adjusting)
- Abrasive wheel speed: 2800rpm
- Abrasive wheel size:Dia250xthickness80mm,hole32mm
- Wheel motor:4kw
- Feeding motor:0.4kw
- Total power:4.4kw
- Consumption:9A
- Voltage:single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:200kgs
- Dimension:950x950x1100mm (wooden case size)
| Content | Data | Content | Data | ||||
| Working capacity | 2-100mm diameter | Wheel motor | 4kw | ||||
| Working capacity | Length 1mm-3000mm | Feeding motor | 0.4kw | ||||
| Station no. | One Station | Voltage | single-phase / 3-phase | ||||
| Feeding speed | 1-6m/min(adjustable) | Gross weight | 200kgs | ||||
| Abrasive wheel speed | 2800rpm | Dimension | 950*950*1100mm |
APPLICATION
2mm 4mm Rod polishing machine are widely used in below applications.

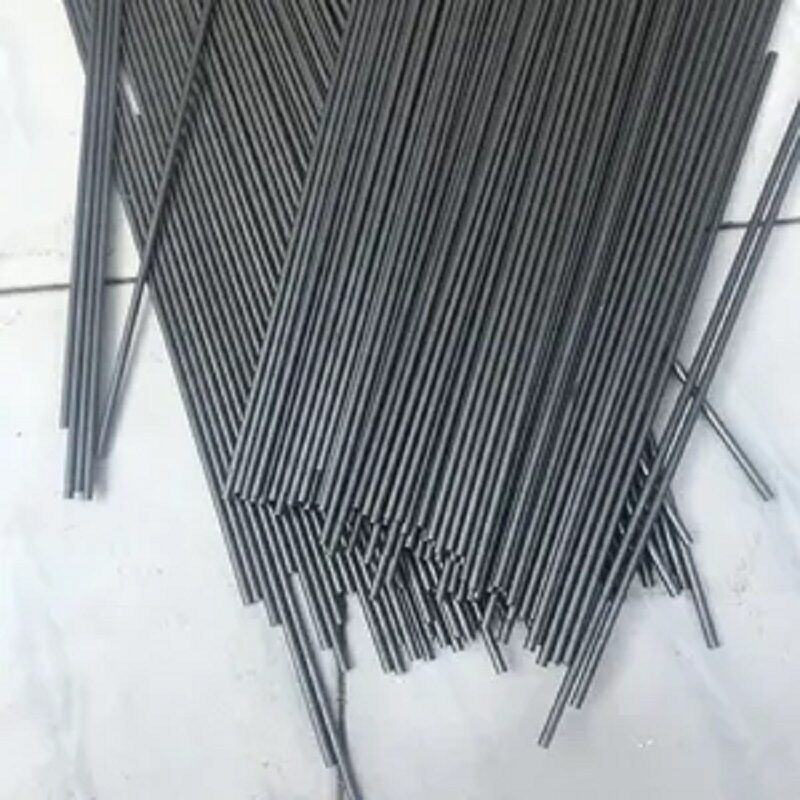

- Small diameter rod polishing
- Fine rods polishing
- Slender rod polishing
- Small diameter bolt polishing
FAQ
- Is this stickpolishing machine working for both pipe and solid rod?
- Yes, it works for both of them.
- What is the difference between single-station machine and multi-station polishing machine?
- Single-head machine means there is only single one polishing wheel while for multi-head machine there is several working position with different material of polishing
- What kind of grinding wheel do we use on our machine?
- We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.
- What is the life span of the abrasive wheel?
- 3500meters rodpolishing each.
- Do you have machine in stock?
- Yes, we have ready stock for regular machines, but if your voltage are different from what in China we will need 7-10days to customize motor for you.
