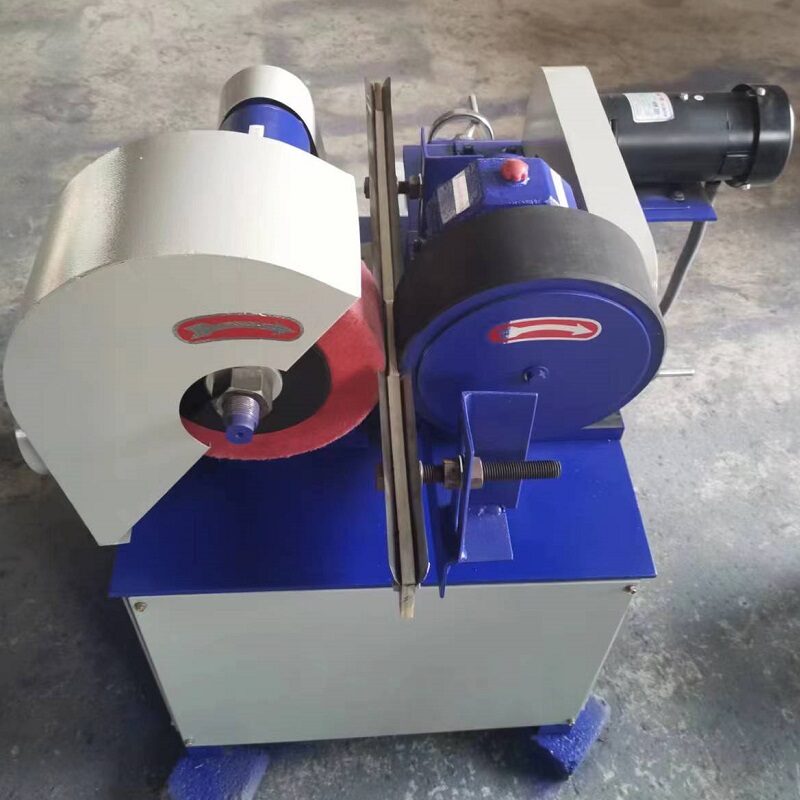

Bar polishing machine
- Technical Details
- Bar polishing machine
- no: WSPR-1-100
- Working capacity (min.and max.diameter):2-100mm
- Station no.:1
- Feeding speed:0-6m/min(adjustable)
- Abrasive wheel speed:1400rpm
- Abrasive wheel size:Dia250xthickness80mm,hole32mm
- Wheel motor:4kw
- Feeding motor:0.4kw
- Total power:4.4kw
- Voltage:single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:200kgs
- Dimension:950x950x1100(H) (wooden case size)

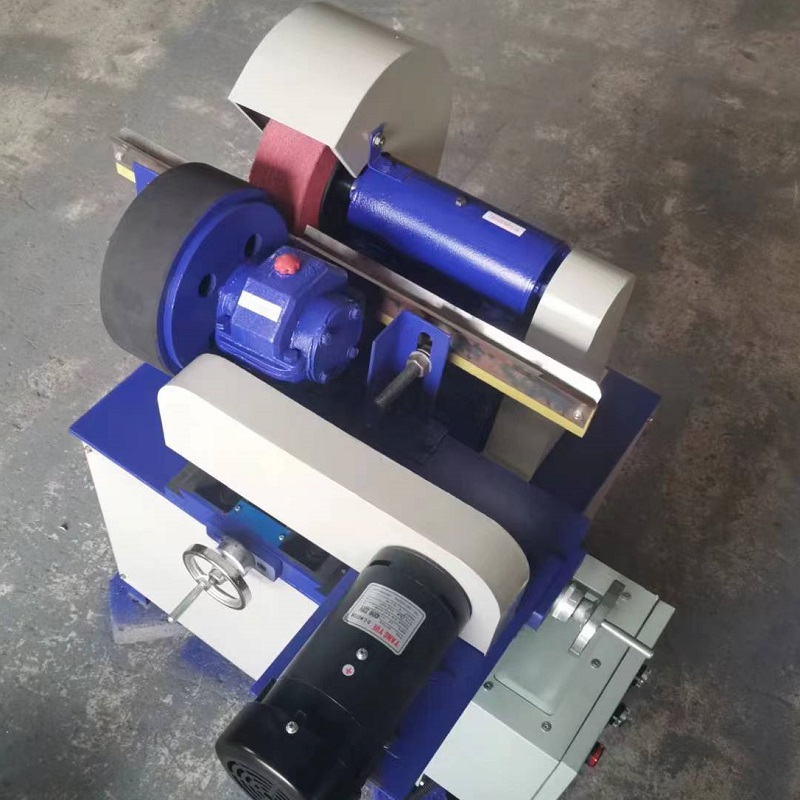

Bar polishing machine can be used for round solid bar polishing, worker feed the bar manually into machine head, there is a polishing wheel driven by the main motor which will polish the bar and push the bar to the outlet. By changing the speed and polishing wheel you can have different finish on the surface of the steel bar.
PRODUCT SPECIFICATION
- Bar polishing machine
- no: WSPR-1-100
- Working capacity (min.and max.diameter):2-100mm
- Station no.:1
- Feeding speed:0-6m/min(adjustable)
- Abrasive wheel speed:1400rpm
- Abrasive wheel size:Dia250xthickness80mm,hole32mm
- Wheel motor:4kw
- Feeding motor:0.4kw
- Total power:4.4kw
- Voltage:single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:200kgs
- Dimension:950x950x1100(H) (wooden case size)
| Content | Data | Content | Data | ||||
| Working capacity | 2-100mm diameter | Wheel motor | 4kw | ||||
| Working capacity | Length 1mm-3000mm | Feeding motor | 0.4kw | ||||
| Station no. | One Station | Voltage | single-phase / 3-phase | ||||
| Feeding speed | 1-6m/min(adjustable) | Gross weight | 200kgs | ||||
| Abrasive wheel speed | 2800rpm | Dimension | 950*950*1100mm |
FEATURE
This machine is in new design with fast polishing speed. The regulating wheel speed can be adjusted to meet the requirements of different polishing requirements and different speed of the workpiece grinding and polishing requirements. Optional dust removal system is available. It is suitable for polishing and polishing of all kinds of rod, square pipe, rectangular pipe and strip steel outer surface in metal plating, auto and motorcycle parts,machinery manufacturing, decoration and for other industries.
FAQ
- Why should you buy from us not from other suppliers?
- We focus on metal pipe polishing machine and after-sale service.
- How we guarantee the quality?
- We will test at least one pipes on every polishing machine before shipping out.Some of our heavy duty models of tube polishing machine works well after even 8 years according to our client feedback, for all of our machine we offer one year warranty.
- For a taper shape metal pipe, can both big diameter side and smaller diameter side been polished well?
- Yes, this machine can polish all position on a cone shape pipe.
- What kind of grinding wheel do we use on our machine?
- We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.
- What is the life span of the abrasive wheel?
- 3500meters pipe polishing each.
- What is the assembly size of the abrasive wheel?
- Diameter 250mm, width 40x2mm, Inner hole diameter 32mm.
- Do you have machine in stock?
- Yes, we have ready stock for regular machines, but if your voltage are different from what in China we will need 7-10days to customize motor for you.
- What accessories are included in machine?
- One set free abrasive wheel and air blower, dust collector
- How is the packaging?
- We use wrapping film and wooden crate to pack each machine.
