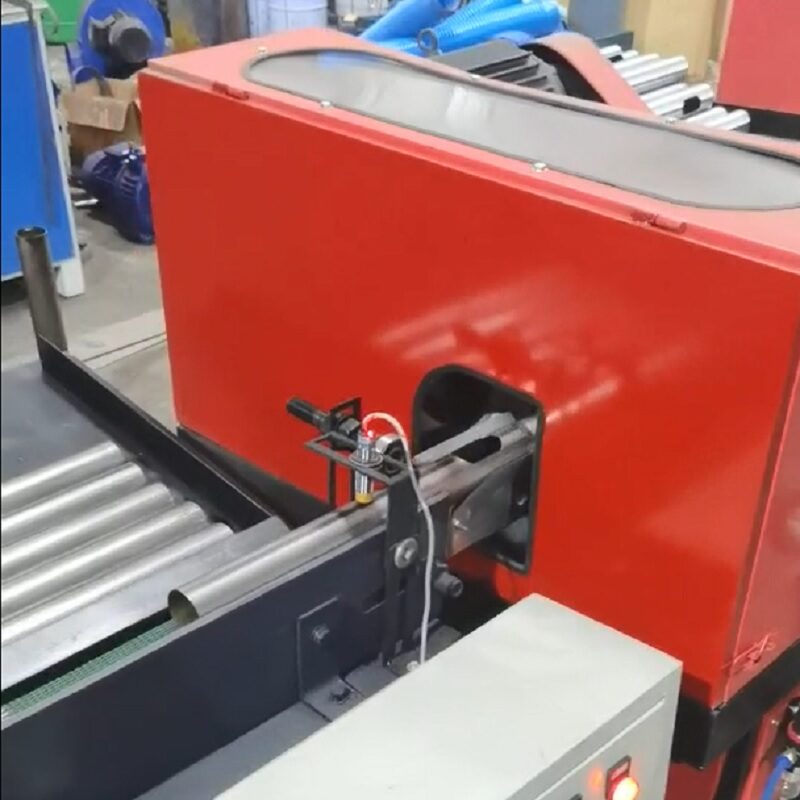

Automatic polishing machine manufacturers

We are automatic polishing machine manufacturers, we produce pipe polishing machine that allows fully automatic polishing for tube and pipes, you have only to feed bundles of pipes onto the feeding table, the machine will pick every pipe and automatically feed them into polishing machine. After polishing, it will feed out the pipe automatically to the collect table.

PRODUCT SPECIFICATION

• Automatic polishing machine manufacturers
• Model:WSPR-1-120HA
• Working capacity (min.and max.diameter):5-120mm
• Working capacity (min.and max.pipe length):20mm-any
• Station no.:1
• Feeding speed: 1-12m/min(adjustable, stepless speed adjusting)
• Abrasive wheel speed: 2800rpm
• Abrasive wheel size:Dia250xthickness80mm,hole32mm
• Wheel motor:3kw
• Feeding motor:0.75kw
• Feed-in motor: 400w
• Feed-out motor: 400w
• Total power:4.6kw
• Voltage:single-phase / 3-phase customized
• Standard with 1 set grinding wheel
• Gross weight:210+150+250kgs
• Dimension:Feed-in unit 1100x800x1300mm, feed-out unit 1100x800x850mm, polishing main machine 1400x1000x1150mm
• Including air blower dust collector, feed-in and feed-out unit and raw pipe and finished pipe supporting platform

APPLICATION

Automatic feeding tube polishing machine are widely used in below applications.

• Automatic feed steel pipe polishing
• Bundles metal pipes automatically polishing
• Automatic feeding stainless steel rod polishing
• Auto feed aluminum tube polishing
• High speed automatic pipe polishing for mass production

FAQ

• What can you purchase from us?
• All kind of grinding and polishing machines, such as round and rectangular pipe polishing machine, wire rod polishing machine, metal plate polishing machine etc..

• Is this automatic feeding pipepolishing machine working for both pipe and solid rod?
• Yes, it works for both of them.

• What is the difference between single-station machine and multi-station polishing machine?
• Single-head machine means there is only single one polishing wheel while for multi-head machine there is several working position with different material of polishing

• What kind of grinding wheel do we use on our machine?
• We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.

• What is the life span of the abrasive wheel?
• 3500meters rodpolishing each.

• How can you place order?
• We accept T/T payment directly to our company account and we can also accept payment through Paypal and westernunion. We can ship by sea to sea port nearest to your city or ship to door. We do not have MOQ for our machines, we can ship any quantity.
