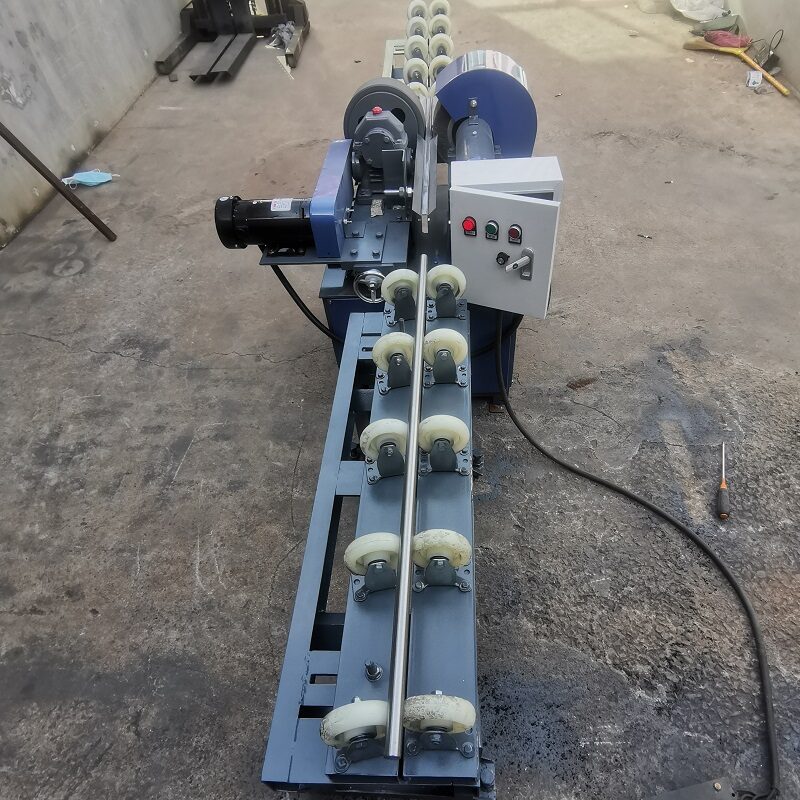

Automatic Tube Polishing Machine With Pipe Stands

Automatic Tube Polishing Machine With Pipe Stands works for round metal tube and pipe polishing, according to the length of your tube we will make same length feed in and feed out pipe stands with rollers on it to place the pipe on. By using different material and grit polishing wheels and choosing a proper speed you can have various finish on the surface of your steel tube.

PRODUCT SPECIFICATION

• Technical Data
• Automatic Tube Polishing Machine With Pipe Stands
• Model: WSPR-1-100
• Capacity of diameter:2-100mm
• Station number:one
• Feeding speed:0-6m/min(adjustable)
• Abrasive wheel speed:1400rpm
• Abrasive wheel size:dia250 x thickness80mm, hole32mm
• Wheel motor:4kw
• Feeding motor:4kw
• Total power:4.4kw
• Voltage:single phase / three phase
• Standard with 1 set polishingwheel
• Gross weight:200kgs
• Dimension:950x950x1100mm (wooden crate size)
• Standard with feed-in and feed-out pipe stands (pipe supporting rack with rollers)
