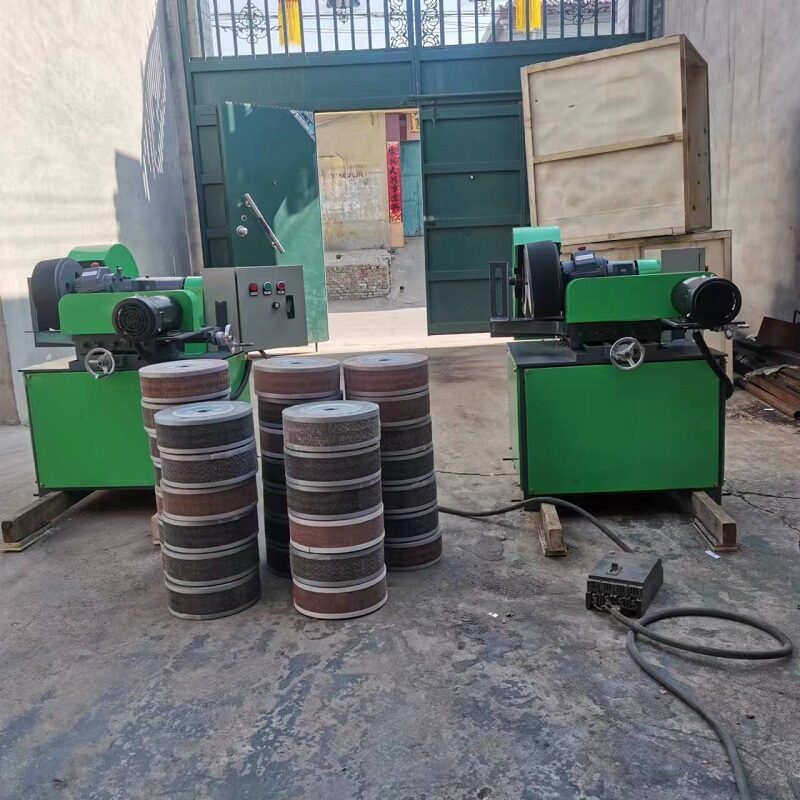

Screw rod polishing machine
- Technical Detail
- Screw rod polishing machine
- Model:WSPR-1-100
- Working capacity (min.and max.diameter):2-100mm
- Working capacity (min.and max.pipe length):1-3000mm
- Station no.:1
- Feeding speed: 1-6m/min(adjustable, stepless speed adjusting)
- Abrasive wheel speed: 2800rpm
- Abrasive wheel size:Dia250xthickness80mm,hole32mm
- Wheel motor:4kw
- Feeding motor:0.4kw
- Total power:4.4kw
- Consumption:9A
- Voltage:single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:200kgs
- Dimension:950x950x1100mm (wooden case size)
Screw rod polishing machine is for polishing the surface of ball screw. The product is transported through the feeding wheel, and polishing wheels of different thickness can be installed to complete the effect of coarse grinding to fine polishing on the surface at one time; The surface effect is uniform, fine, and easy to operate.
PRODUCT SPECIFICATION
- Screw rod polishing machine
- Model:WSPR-1-100
- Working capacity (min.and max.diameter):2-100mm
- Working capacity (min.and max.pipe length):1-3000mm
- Station no.:1
- Feeding speed: 1-6m/min(adjustable, stepless speed adjusting)
- Abrasive wheel speed: 2800rpm
- Abrasive wheel size:Dia250xthickness80mm,hole32mm
- Wheel motor:4kw
- Feeding motor:0.4kw
- Total power:4.4kw
- Consumption:9A
- Voltage:single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:200kgs
- Dimension:950x950x1100mm (wooden case size)
| Content | Data | Content | Data | ||||
| Working capacity | 2-100mm diameter | Wheel motor | 4kw | ||||
| Working capacity | Length 1mm-3000mm | Feeding motor | 0.4kw | ||||
| Station no. | One Station | Voltage | single-phase / 3-phase | ||||
| Feeding speed | 1-6m/min(adjustable) | Gross weight | 200kgs | ||||
| Abrasive wheel speed | 2800rpm | Dimension | 950*950*1100mm |
APPLICATION
Screw rod polishing machine are used in below applications.

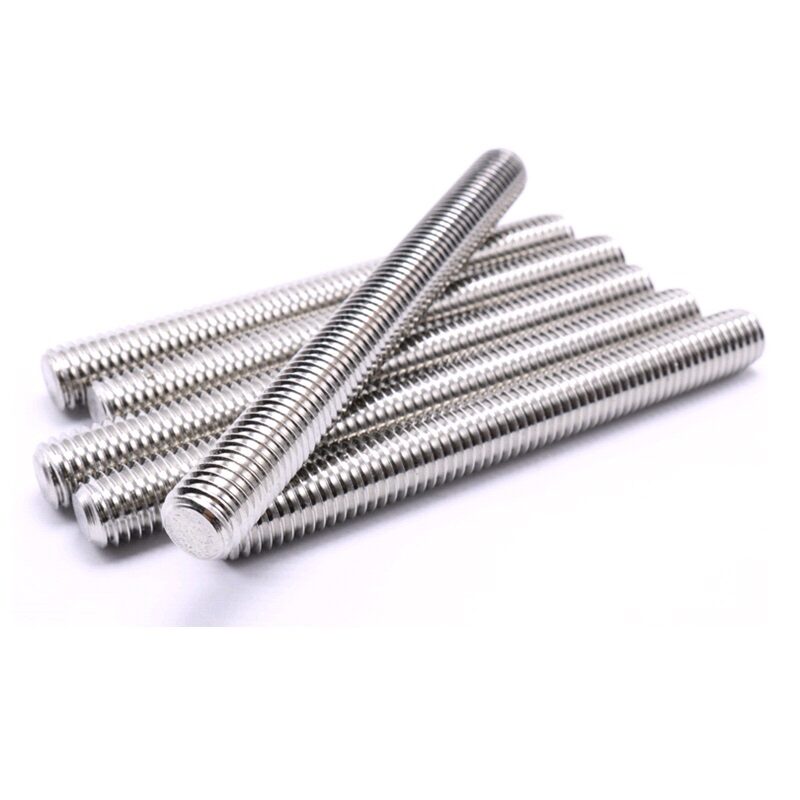

- Screw rods polishing
- Lead screw polishing
- Guide screw polishing
- Ball screw polishing
FAQ
- Is this screw rodpolishing machine working for both pipe and solid rod?
- Yes, it works for both of them.
- What is the difference between single-station machine and multi-station polishing machine?
- Single-head machine means there is only single one polishing wheel while for multi-head machine there is several working position with different material of polishing
- What kind of grinding wheel do we use on our machine?
- We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.
- What is the life span of the abrasive wheel?
- 3500meters rodpolishing each.
- Do you have machine in stock?
- Yes, we have ready stock for regular machines, but if your voltage are different from what in China we will need 7-10days to customize motor for you.
