Profile polishing machine
- Technical Details
- Profile polishing machine
- Model no. WSPF-1-120
- Station no. 1
- Abrasive wheel speed 2800rpm
- Abrasive wheel size Dia250xthickness80mm,hole32mm
- Wheel motor 4kw
- Feeding motor 0.75kw
- Total power 18kw
- Voltage 3-phase customized
- Standard with up/down/left/righttotally four grinding wheel each working position
- Gross weight 1300kgs
- Dimension 1800x1500x1450 (wooden case size)
Profile polishing machine is a machine that for polishing grinding the four side of a aluminum profile. Each station of machine has got four polishing wheels on it.
PRODUCT SPECIFICATION
- Profile polishing machine
- Model no. WSPF-1-120
- Station no. 1
- Abrasive wheel speed 2800rpm
- Abrasive wheel size Dia250xthickness80mm,hole32mm
- Wheel motor 4kw
- Feeding motor 0.75kw
- Total power 18kw
- Voltage 3-phase customized
- Standard with up/down/left/righttotally four grinding wheel each working position
- Gross weight 1300kgs
- Dimension 1800x1500x1450 (wooden case size)
| Content | Data | Content | Data | ||||
| Working capacity | customized | Wheel motor | 4kw | ||||
| Working capacity | customized | Feeding motor | 0.75kw | ||||
| Station no. | One Station | Voltage | single-phase / 3-phase | ||||
| Feeding speed | 1-6m/min(adjustable) | Gross weight | 1300kgs | ||||
| Abrasive wheel speed | 2800rpm | Dimension | 1800*1500*1450mm |
APPLICATION
Profile polishing machine are widely used in below applications.
- Angle steel polishing
- U-steel polishing
- Aluminum profile polishing
- Rectangular tube polishing
FAQ
- What is the maximum capacity for aluminum profile surface polishing machine?
- It is customized according to client’s workpiece.
- How many station required onour machine?
- It depends on your workpiece, each one station have got 4 polishing wheels on it.
- What is the life span of the abrasive wheel?
- 3500meters pipe polishing each.
- What is the assembly size of the abrasive wheel?
- Diameter 250mm, width 40x2mm, Inner hole diameter 32mm.
- Is the profile polishing machine fully automatic?
- It is manual feeding.
- Do you have machine in stock?
- Yes, we have ready stock for regular machines, but if your voltage are different from what in China we will need 7-10days to customize motor for you.
- What accessories are included in machine?
- One set free abrasive wheel and air blower, dust collector

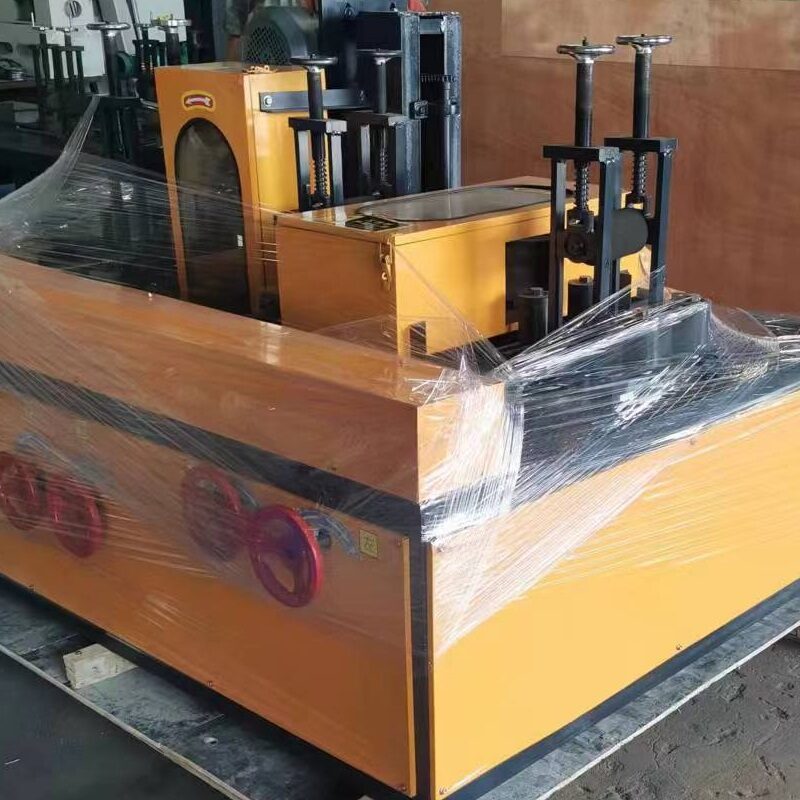

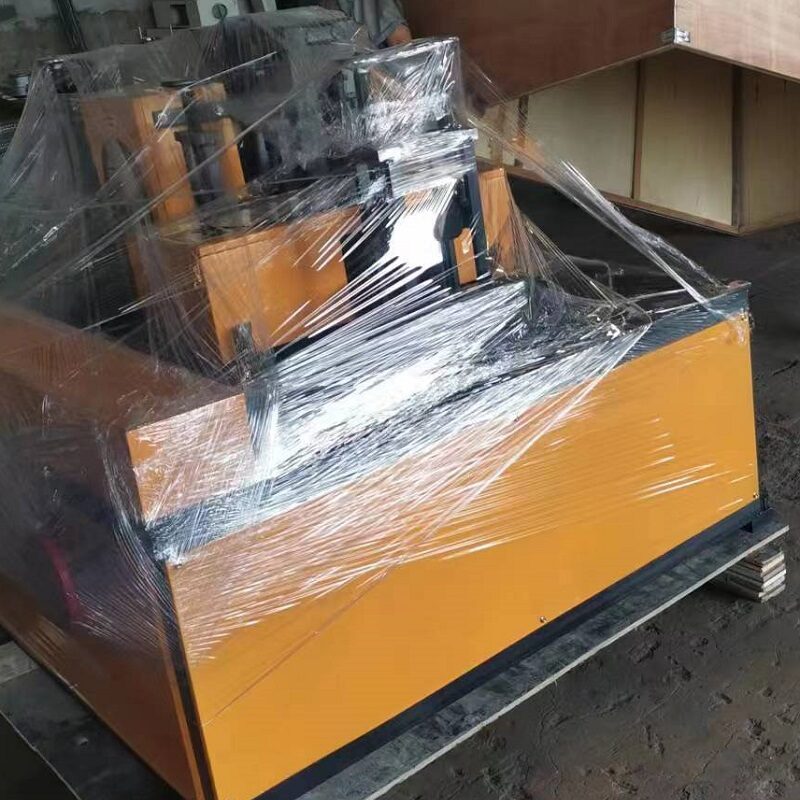

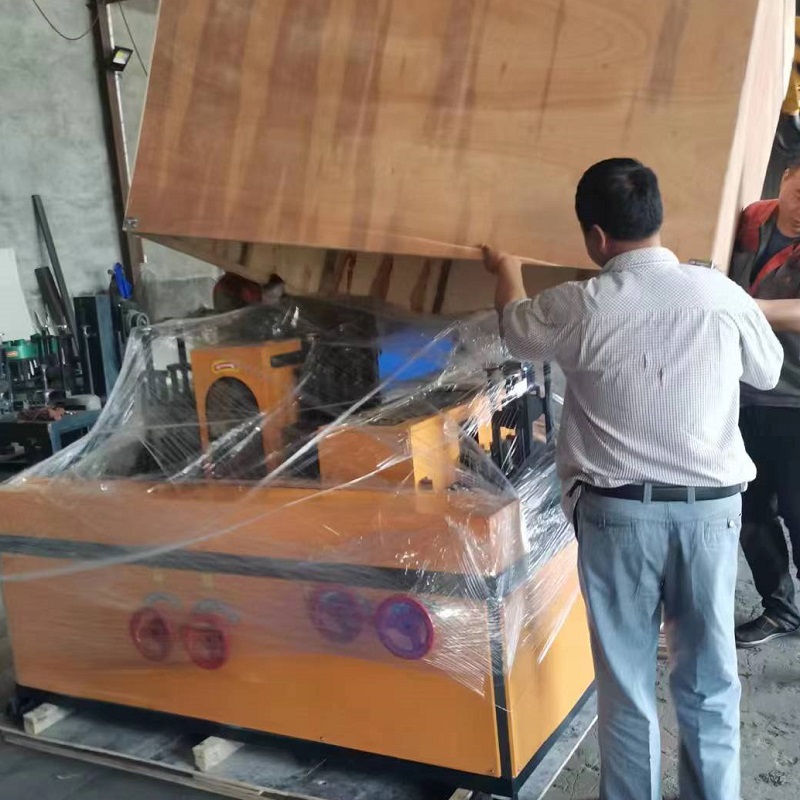

- How is the packaging?
- We use wrapping film and wooden crate to pack each machine.
