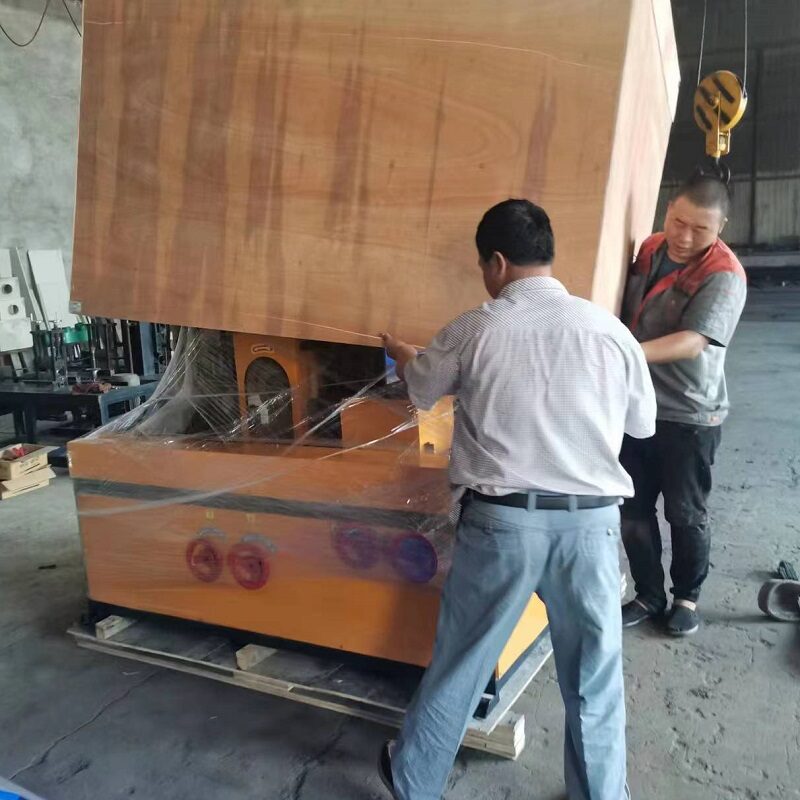

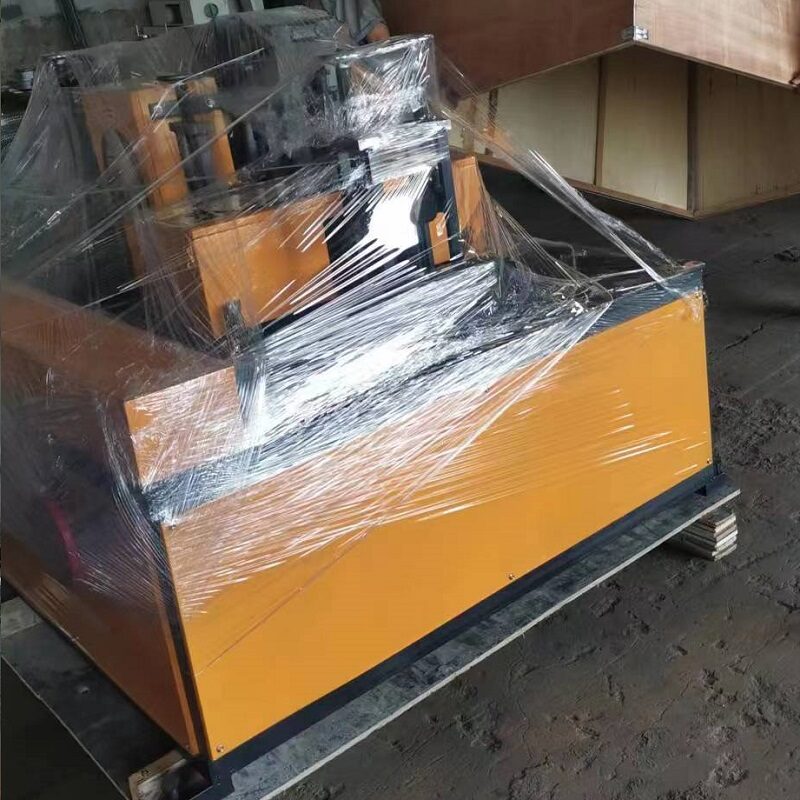

U-channel steel polishing machine
- Technical Details
- U-channel steel polishing machine
- Model no. WSUS-1-120
- Station no. 1
- Abrasive wheel speed 2800rpm
- Abrasive wheel size Dia250xthickness80mm,hole32mm
- Wheel motor 4kw
- Feeding motor 0.75kw
- Total power 18kw
- Voltage 3-phase customized
- Gross weight 1650kgs
- Dimension 1800x1500x1750 (wooden case size)
INTRODUCTION
U-channel steel polishing machine works for polishing surface of the U-steel surface.
We can customize machine to polish any side of your workpiece.
PRODUCT SPECIFICATION
- U-channel steel polishing machine
- Model no. WSUS-1-120
- Station no. 1
- Abrasive wheel speed 2800rpm
- Abrasive wheel size Dia250xthickness80mm,hole32mm
- Wheel motor 4kw
- Feeding motor 0.75kw
- Total power 18kw
- Voltage 3-phase customized
- Gross weight 1650kgs
- Dimension 1800x1500x1750 (wooden case size)
| Content | Data | Content | Data | ||||
| Working capacity | customized | Wheel motor | 4kw | ||||
| Working capacity | customized | Feeding motor | 0.75kw | ||||
| Station no. | One Station | Voltage | single-phase / 3-phase | ||||
| Feeding speed | 1-6m/min(adjustable) | Gross weight | 1650kgs | ||||
| Abrasive wheel speed | 2800rpm | Dimension | 1800*1500*1750mm |
APPLICATION
U channel steel polishing machine are widely used in below applications.
- Angle steel polishing
- U-steel polishing
- Profile polishing
- Rectangular tube polishing
FAQ
- What is the maximum capacity for U channel steelpolishing machine?
- It is customized according to client’s workpiece.
- How many station required onour machine?
- It depends on your workpiece, each one station have got 4 polishing wheels on it.
- What is the life span of the abrasive wheel?
- 3500meters pipe polishing each.
- Is the U channel steelpolishing machine fully automatic?
- It is manual feeding.
- Do you have machine in stock?
- Yes, we have ready stock for regular machines, but if your voltage are different from what in China we will need 7-10days to customize motor for you.
- What accessories are included in machine?
- One set free abrasive wheel and air blower, dust collector
- How to place order?
- We accept T/T payment directly to our company account and we can also accept payment through Paypal and westernunion. We can ship by sea to sea port nearest to your city or ship to door. We do not have MOQ for our machines, we can ship any quantity.
