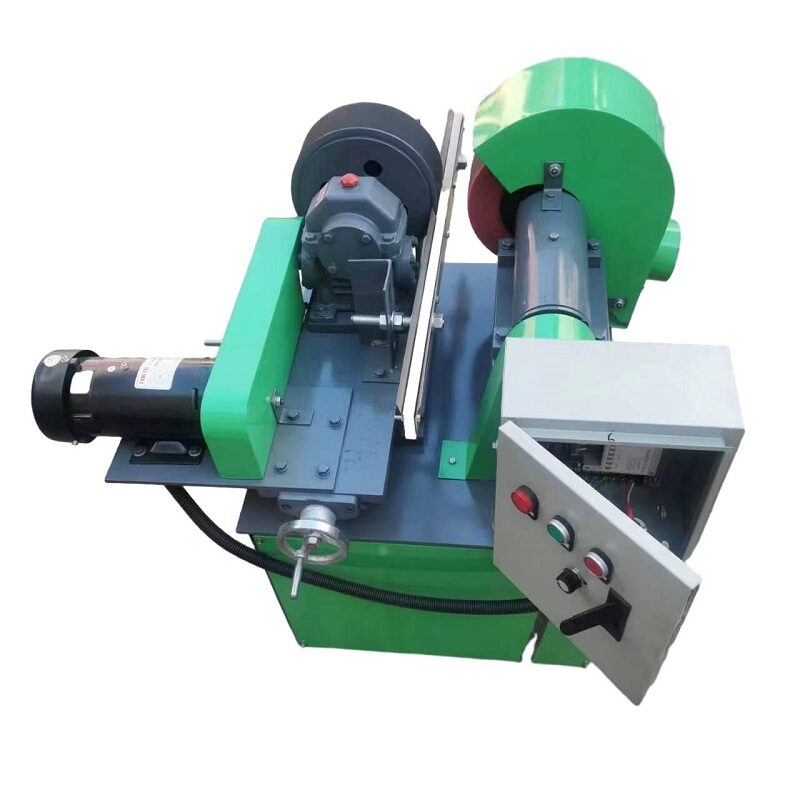

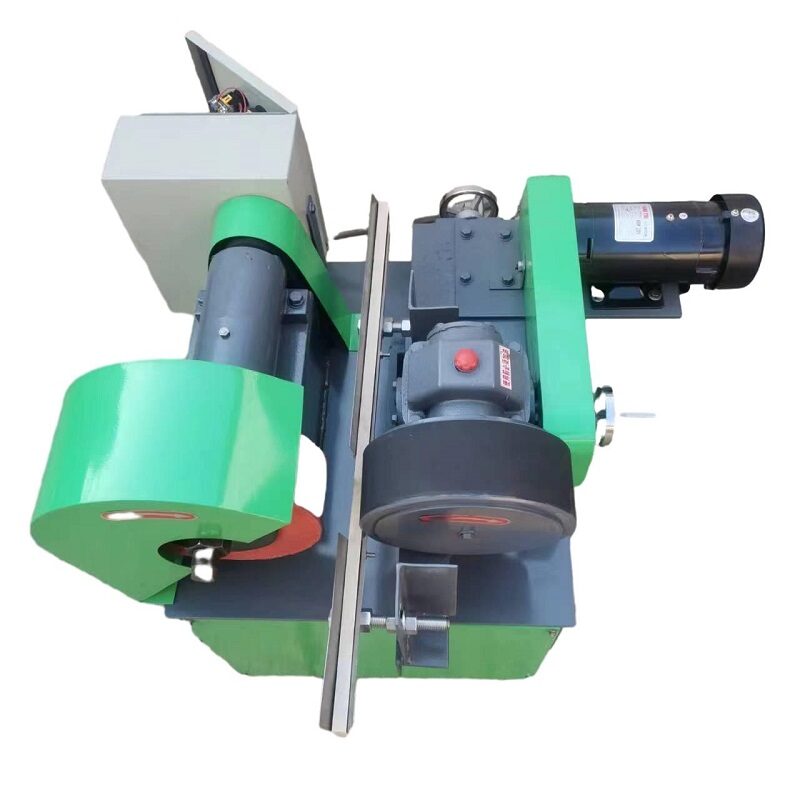

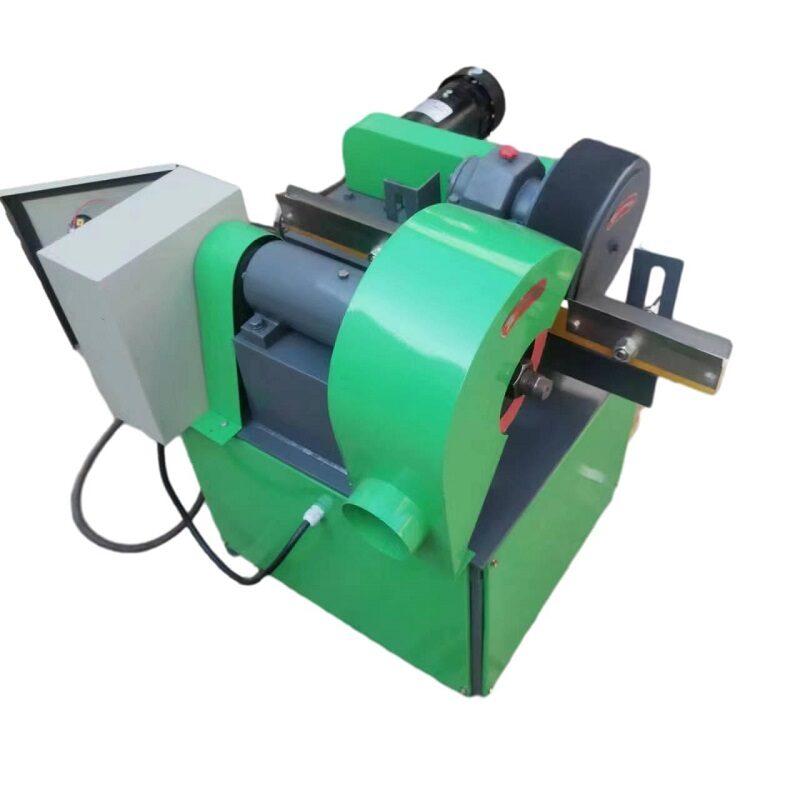

Tapered Tube Polishing Machine

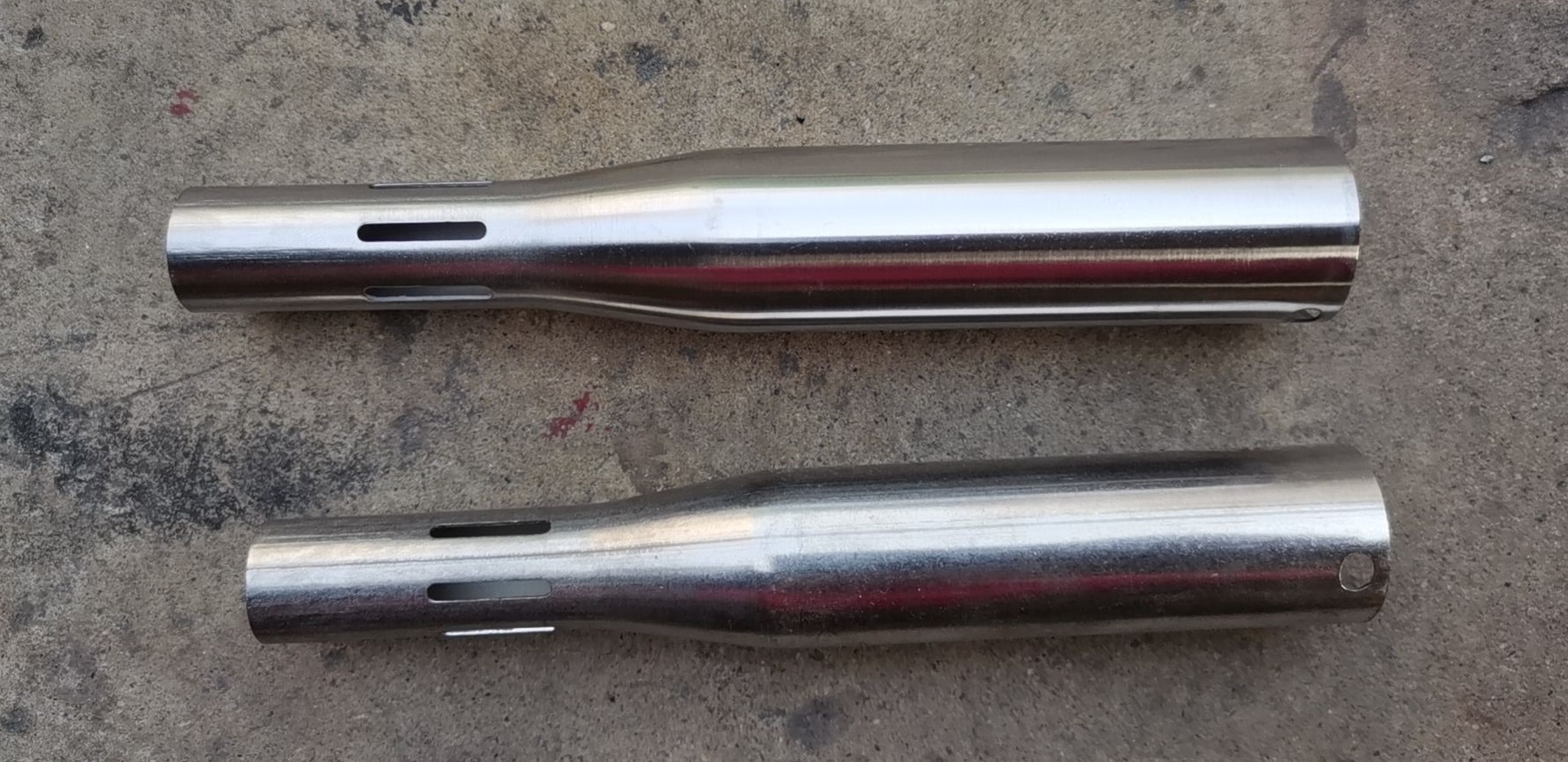

Tapered tube polishing machine is a pneumatic pipe polishing machine, by using footpedal it can control the distance between abrasive wheel and guide rubber wheel during polishing process, which makes it possible to polish a certain position of your pipe and hose. This machine can also polish taper tube or similar workpiece.

PRODUCT SPECIFICATION

• Tapered tube polishing machine
• Model: WSPR-1-100P
• Working capacity (min.and max.diameter) : 3-100mm
• Working capacity (min.and max.pipe length): 1-3000mm
• Station no.: 1
• Feeding speed: 1-6m/min(adjustable, stepless speed adjusting)
• Abrasive wheel speed: 2800rpm
• Abrasive wheel size: Dia250xthickness80mm,hole32mm
• Wheel motor: 4kw
• Feeding motor: 0.4kw
• Total power: 4.4kw
• Consumption: 9A
• Voltage: single-phase / 3-phase customized
• Standard with 1 set grinding wheel
• Gross weight: 220kgs
• Dimension: 950x950x1100 (wooden case size)

FEATURE

1 Suitable for iron pipes, steel pipes, stainless steel pipes, copper pipes, aluminum pipes etc..

2 Mainly used for rust removal and polishing in hardware manufacturing, vehicle parts, hydraulic cylinders, steel-wood furniture, standard parts, and before and after electroplating, from rough polishing to fine polishing.

3 The round pipe polishing machine is to polish round pipes, round sticks and slender shafts.

4 Machine can be standard with various polishing wheels, such as flap wheels, hemp wheels, nylon wheels, wool wheels, cloth wheels, PVA wheel etc..

5 The stepless speed control guide wheel is simple to operate.

6 The optimized steel structure ensure machine stable and durable, the back side output hole connected with a dust removal blower.


FAQ

• Is this pipe polishing machine working for both round hoseand round rods?
• Yes, it works for both of them.

• What kind of grinding wheel do we use on our machine?
• We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.

• What is the life span of the abrasive wheel?
• 3500meters pipe polishing each.

• What is the assembly size of the abrasive wheel?
• Diameter 250mm, width 40x2mm, Inner hole diameter 32mm.

• Is thepneumatic sprinkler tube polishing machine requiring an air compressor?
• Yes.

• Do you have machine in stock?
• Yes, we have ready stock for regular machines, but if your voltage are different from what in China we will need 7-10days to customize motor for you.

• What accessories are included in machine?
• One set free polishwheel

• How is the packaging?
• We use wrapping film and wooden crate to pack each machine.

• How we guarantee the quality?
• We will test at least one pipes on every polishing machine before shipping out.Some of our heavy duty models of tube polishing machine works well after even 8 years according to our client feedback, for all of our machine we offer one year warranty.

• How can you place order?
• We accept T/T payment directly to our company account and we can also accept payment through Paypal and westernunion. We can ship by sea to sea port nearest to your city or ship to door. We do not have MOQ for our machines, we can ship any quantity.
