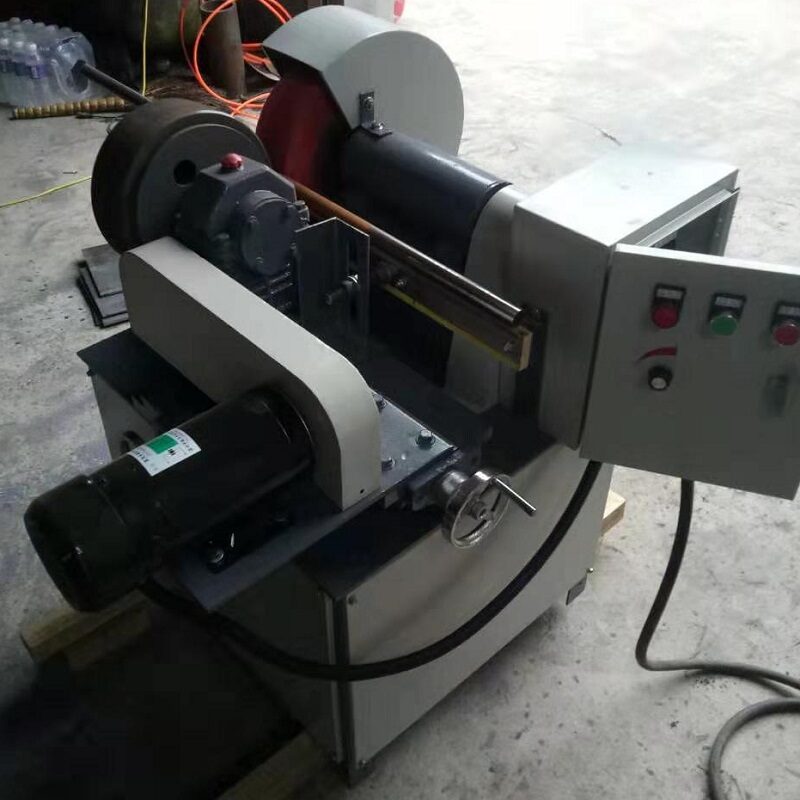

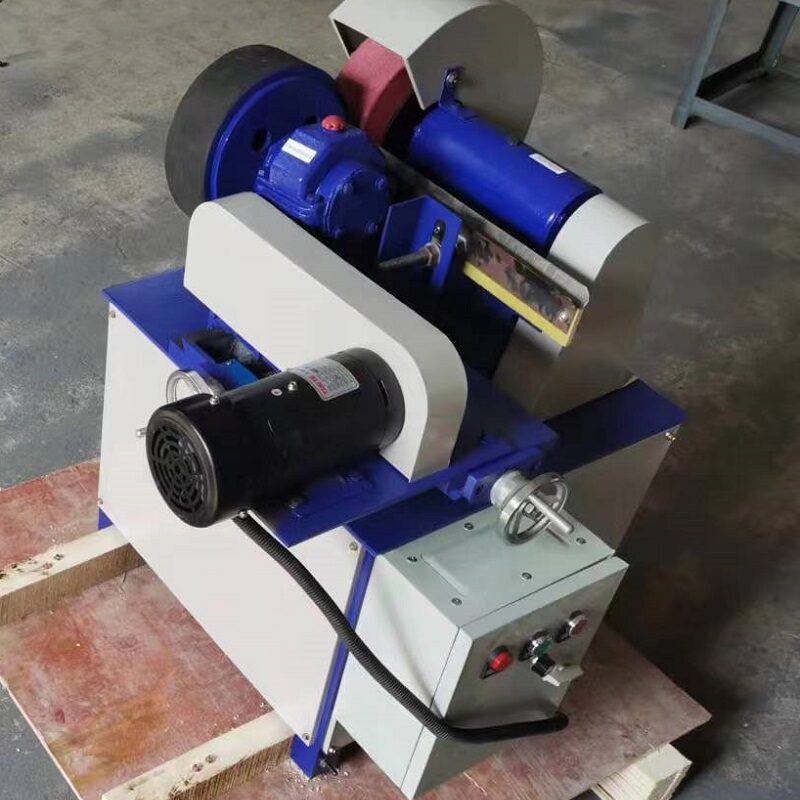

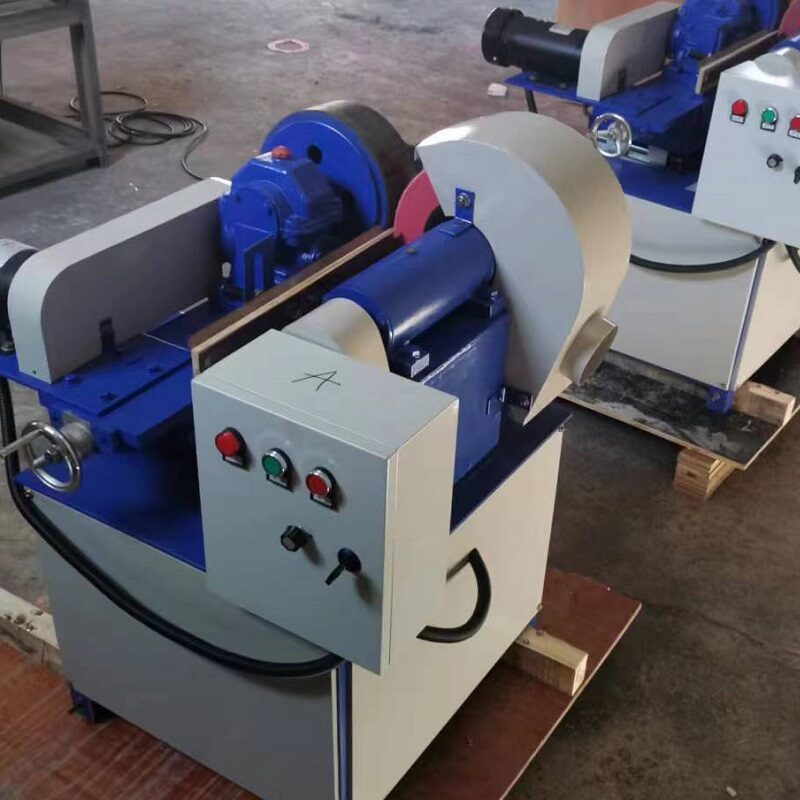

Tapering pipe concial tube polishing machine
- Technical Details
- Tapering pipe concial tube polishing machine
- no: WSPR-1-100
- Working capacity (min.and max.diameter):2-100mm
- Station no.:1
- Feeding speed:0-6m/min(adjustable)
- Abrasive wheel speed:1400rpm
- Abrasive wheel size:Dia250xthickness80mm,hole32mm
- Wheel motor:4kw
- Feeding motor:0.4kw
- Total power:4.4kw
- Voltage:single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:200kgs
- Dimension:950x950x1100(H) (wooden case size)
Tapering pipe concial tube polishing machine are used for polishing tapered pipes, but the diameter reducing can not be too much from one end of the pipe to another end, for example one side diameter is 60mm, then the other side can not be less than 30mm. Please feel free to send inquiry to us with the size of your metal tapered tube and pipes.
PRODUCT SPECIFICATION
- Tapering pipe concial tube polishing machine
- no: WSPR-1-100
- Working capacity (min.and max.diameter):2-100mm
- Station no.:1
- Feeding speed:0-6m/min(adjustable)
- Abrasive wheel speed:1400rpm
- Abrasive wheel size:Dia250xthickness80mm,hole32mm
- Wheel motor:4kw
- Feeding motor:0.4kw
- Total power:4.4kw
- Voltage:single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:200kgs
- Dimension:950x950x1100(H) (wooden case size)
| Content | Data | Content | Data | ||||
| Working capacity | 2-100mm diameter | Wheel motor | 4kw | ||||
| Working capacity | Length 1mm-3000mm | Feeding motor | 0.4kw | ||||
| Station no. | One Station | Voltage | single-phase / 3-phase | ||||
| Feeding speed | 0-6m/min(adjustable) | Gross weight | 200kgs | ||||
| Abrasive wheel speed | 1400rpm | Dimension | 950*950*1100mm |
APPLICATION
Tapering pipe concial tube polishing machine are widely used for below polishing work.
- Reducing pipe polishing
- Taper tube polishing
- Reduced tube grinding
- Cone-shaped tube polishing
- Conical pipe polishing
- Steel conepipe grinding and polishing
FAQ
- Why should you buy from us not from other suppliers?
- We focus on metal pipe polishing machine and after-sale service.
- How we guarantee the quality?
- We will test at least one pipes on every polishing machine before shipping out.
- For a taper shape metal pipe, can both big diameter side and smaller diameter side been polished well?
- Yes, this machine can polish all position on a cone shape pipe.
- What kind of grinding wheel do we use on our machine?
- We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.
- What is the life span of the abrasive wheel?
- 3500meters pipe polishing each.
- What is the assembly size of the abrasive wheel?
- Diameter 250mm, width 40x2mm, Inner hole diameter 32mm.
- Do you have machine in stock?
- Yes, we have ready stock for regular machines, but if your voltage are different from what in China we will need 7-10days to customize motor for you.
- What accessories are included in machine?
- One set free abrasive wheel and air blower, dust collector
- How is the packaging?
- We use wrapping film and wooden crate to pack each machine.
