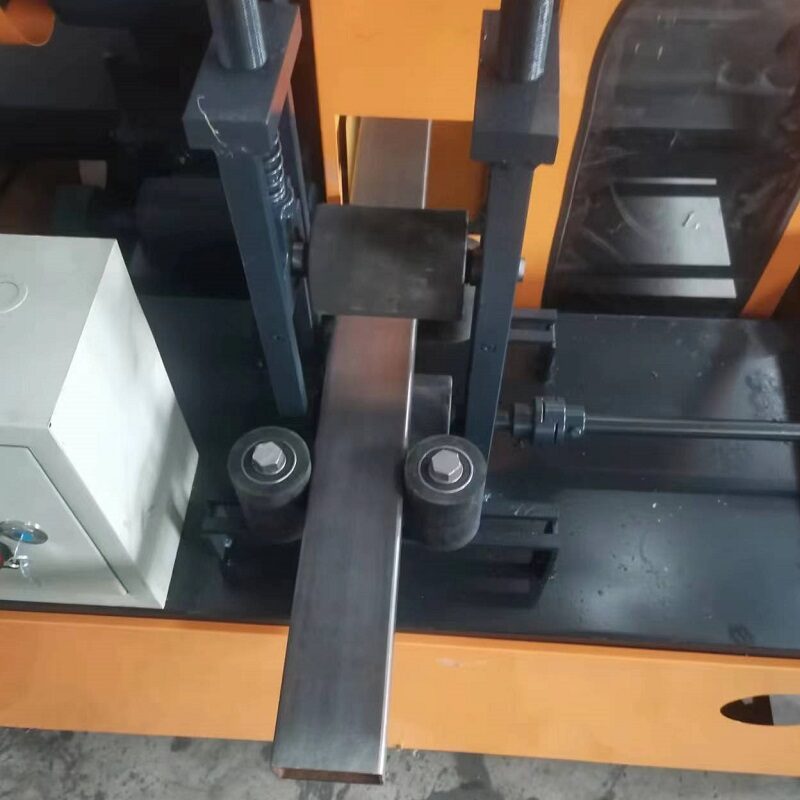

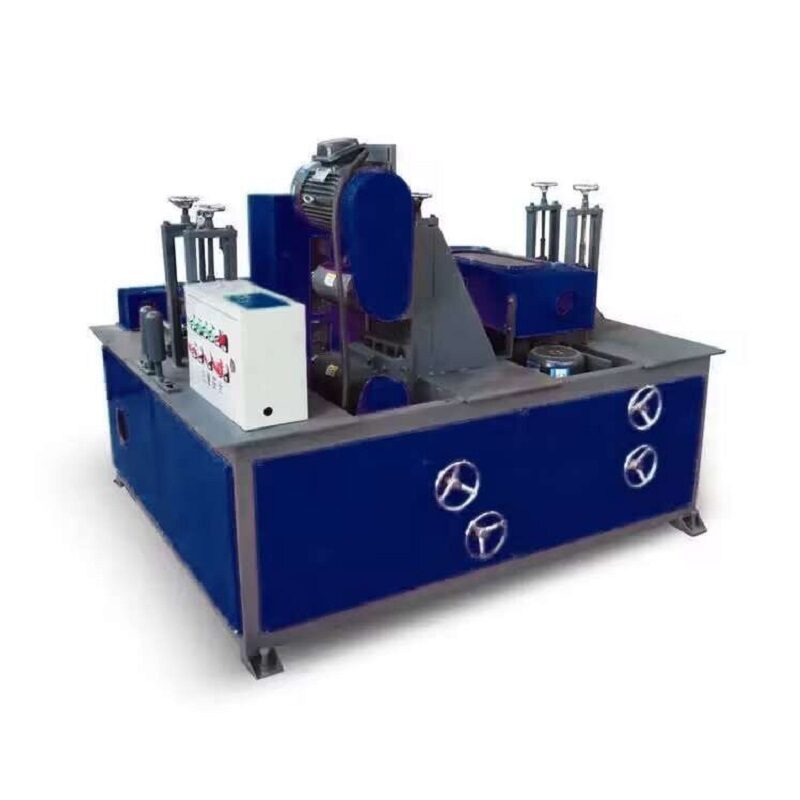

4-Station Metal Square Pipe Polishing Machine

4-STATION METAL SQUARE PIPE POLISHING MACHINE IS DESIGNED FOR ANY SQUARE OR RECTANGULAR SHAPE PIPE, TUBE AND FLAT BAR POLISHING.

WITH THIS MACHINE, YOU CAN HAVE ALL FOUR SIDE OF THE SQUARE WORKPIECE WELL POLISHED.

PRODUCTION SPECIFICATION

• 4-Station Metal Square Pipe Polishing Machine
• Model no.: WSPS-4-120
• Working capacity (min.and max.diameter) 10*10mm to 120*120mm
• Working capacity (min.and max.pipe length) 500mm to any
• Station no. 4
• Feeding speed  1-10m/min(adjustable, stepless speed adjusting)
• Abrasive wheel speed 2800rpm
• Abrasive wheel size Dia250xthickness80mm,hole32mm
• Wheel motor 4kw * 4pieces
• Feeding motor 0.75kw
• Air blower motor 2.2kw
• Total power 19kw
• Consumption 38A
• Voltage 3-phase customized
• Standard with 1 set grinding wheel
• Gross weight 800kgs
• Dimension 1800x1350x1300 (wooden case size)

APPLICATION

Pipe polishing machine are widely used in below applications.

• Hardware accessories and metal partspolishing
• Aluminumpipe hairline effect
• Mirror effect for stainless steel pipe
• Natural gas pipe line derusting
• Exhaust pipe
• Plastic pipe burrs removing
• Smooth surface of wooden stick
• Glass fiber pipe
• Flexible pipe
• Special item such as battery and electric heating pipe
• Copper product workshop
• Road fire hydrant

FAQ

• Is this pipe polishing machine working for both rectangular pipe and solidbar?
• Yes, it works for both of them.

• What is the difference between single-station machine and multi-station polishing machine?
• Single-head machine means there is only single one polishing wheel while for multi-head machine there is several working position with different material of polishing

• Can the rectangular pipepolishing machine polish four sides of the pipe?
• We have two different type machine, one is to polish one two side of pipe, while another is 4-side polishing which can polish left, right, top and bottom side in one time.

• What kind of grinding wheel do we use on our machine?
• We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.

• What is the life span of the abrasive wheel?
• Approx. 3500meters pipe polishing each.

• What is the assembly size of the abrasive wheel?
• Diameter 250mm, width 40x2mm, Inner hole diameter 32mm.

• Is the tube polishing machine fully automatic?
• We have both manual feeding and automatic feeding.

• Do you have machine in stock?
• Yes, we have ready stock for regular machines, but if your voltage are different from what in China we will need 7-10days to customize motor for you.

• What accessories are included in machine?
• One set free abrasive wheel and air blower, dust collector

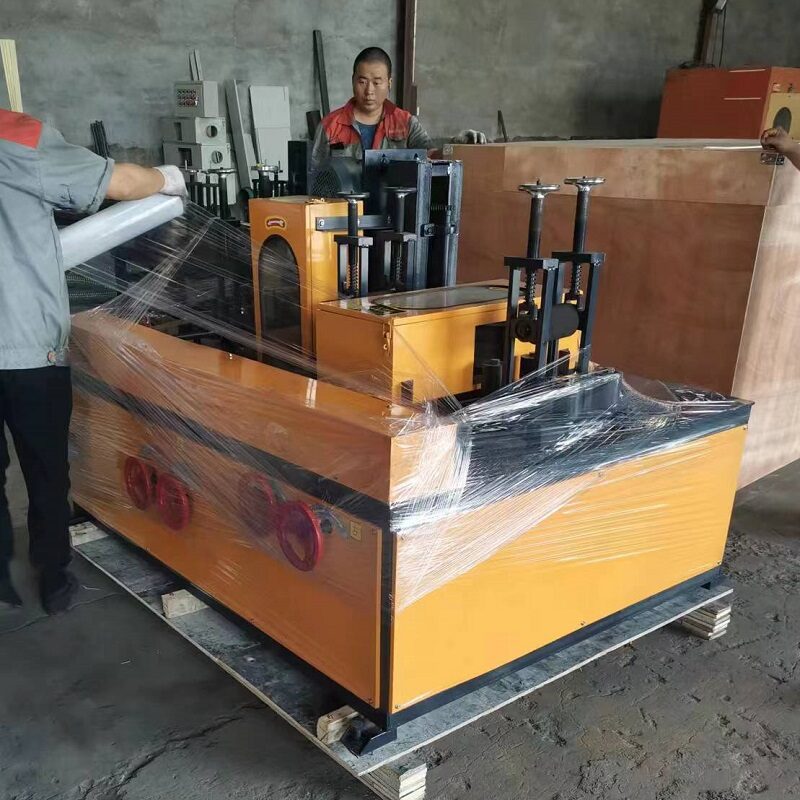

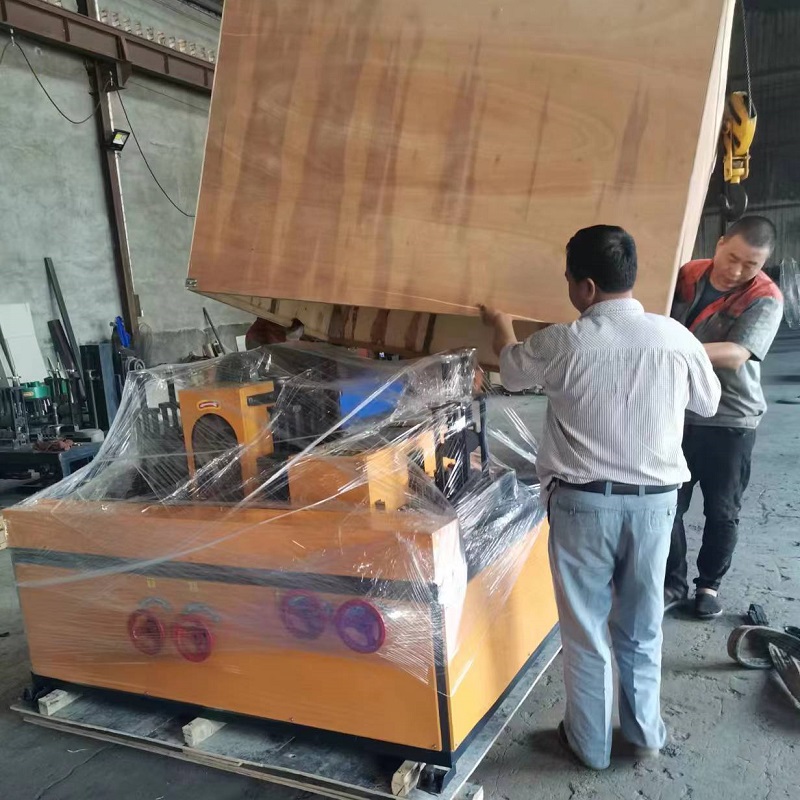

• How is the packaging?
• We use wrapping film and wooden crate to pack each machine.
