Metal square tube polishing machine for rust removal
- Technical Details
- Metal square tube polishing machine for rust removal
- Model no. WSPS-1-120
- Station no. 1 (up/down/left/right 4pcs polishing wheel)
- Abrasive wheel speed 2800rpm
- Abrasive wheel size Dia250xthickness80mm,hole32mm
- Wheel motor 4kw
- Feeding motor 0.75kw
- Total power 18kw
- Voltage 3-phase customized
- Standard with up/down/left/righttotally four grinding wheel each working position
- Gross weight 1650kgs
- Dimension 1800x1500x1750 (wooden case size)

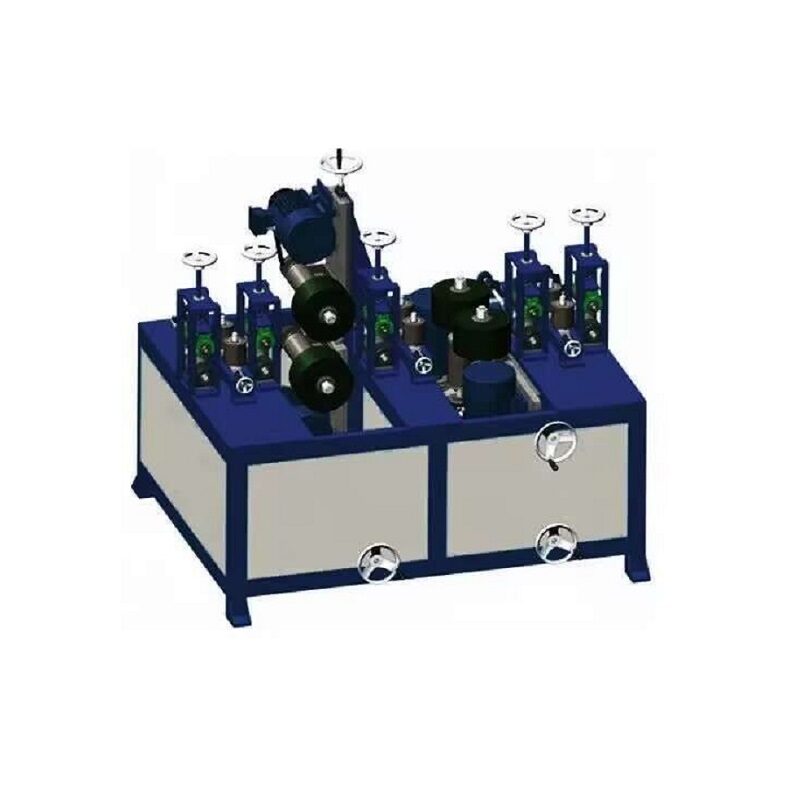

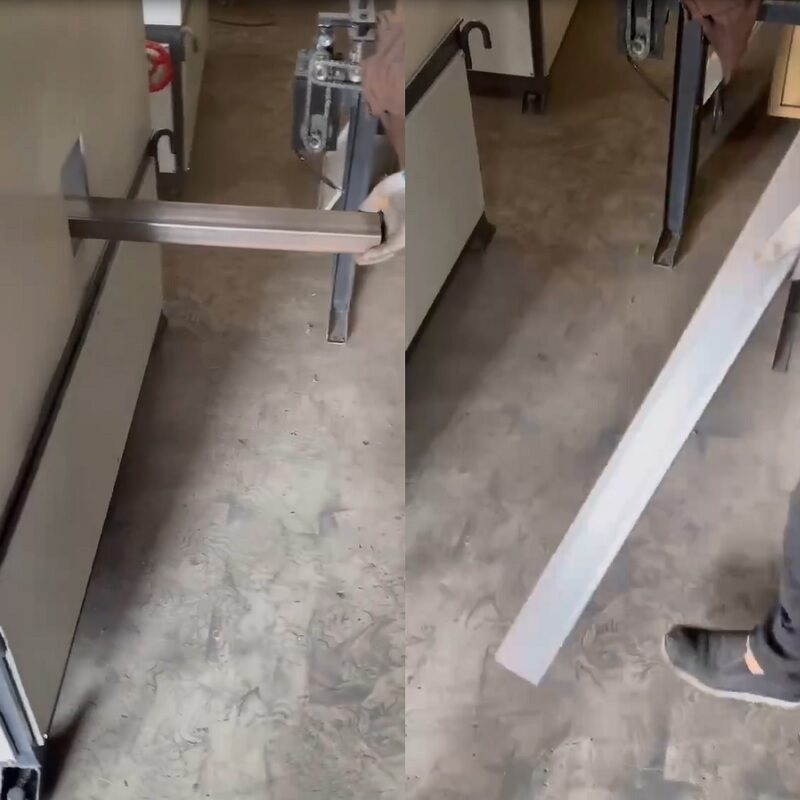

Metal square tube polishing machine for rust removal can polish square shape pipe and tubings, there is 4 polishing head on one working station that can have all four side of the flat pipe polished. We have polishing machine with the capability for industrial and commercial tube polishing of all types of metal tubes in any size, shape, and material to virtually any finish internal and external tube polishing.
PRODUCT SPECIFICATION
- Metal square tube polishing machine for rust removal
- Model no. WSPS-1-120
- Station no. 1 (up/down/left/right 4pcs polishing wheel)
- Abrasive wheel speed 2800rpm
- Abrasive wheel size Dia250xthickness80mm,hole32mm
- Wheel motor 4kw
- Feeding motor 0.75kw
- Total power 18kw
- Voltage 3-phase customized
- Standard with up/down/left/righttotally four grinding wheel each working position
- Gross weight 1650kgs
- Dimension 1800x1500x1750 (wooden case size)
| Content | Data | Content | Data | ||||
| Working capacity | customized | Wheel motor | 4kwx4pcs | ||||
| Working capacity | customized | Feeding motor | 0.75kw | ||||
| Station no. | One Station | Voltage | single-phase / 3-phase | ||||
| Feeding speed | 1-6m/min(adjustable) | Gross weight | 1650kgs | ||||
| Abrasive wheel speed | 2800rpm | Dimension | 1800*1500*1750mm |
APPLICATION

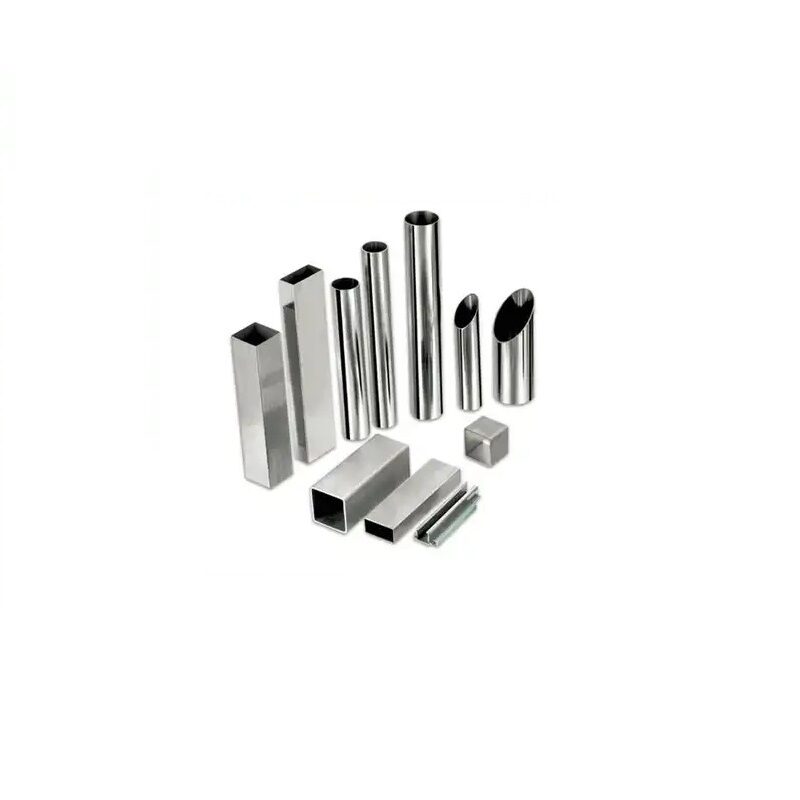

Metal square tube polishing machine for rust removal are widely used in below applications.
- Angle steel polishing
- U-steel polishing
- Flat tube polishing
- Rectangular tube polishing
FAQ
- What is the maximum capacity for U-steelpolishing machine?
- It is customized according to client’s workpiece.
- How many station required onour machine?
- It depends on your workpiece, each one station have got 4 polishing wheels on it.
- What is the life span of the abrasive wheel?
- 3500meters pipe polishing each.
- What is the assembly size of the abrasive wheel?
- Diameter 250mm, width 40x2mm, Inner hole diameter 32mm.
- Is the U steelpolishing machine fully automatic?
- It is manual feeding.
- Do you have machine in stock?
- Yes, we have ready stock for regular machines, but if your voltage are different from what in China we will need 7-10days to customize motor for you.
- What accessories are included in machine?
- One set free abrasive wheel and air blower, dust collector
- How is the packaging?
- We use wrapping film and wooden crate to pack each machine.
