Box tube polishing machine

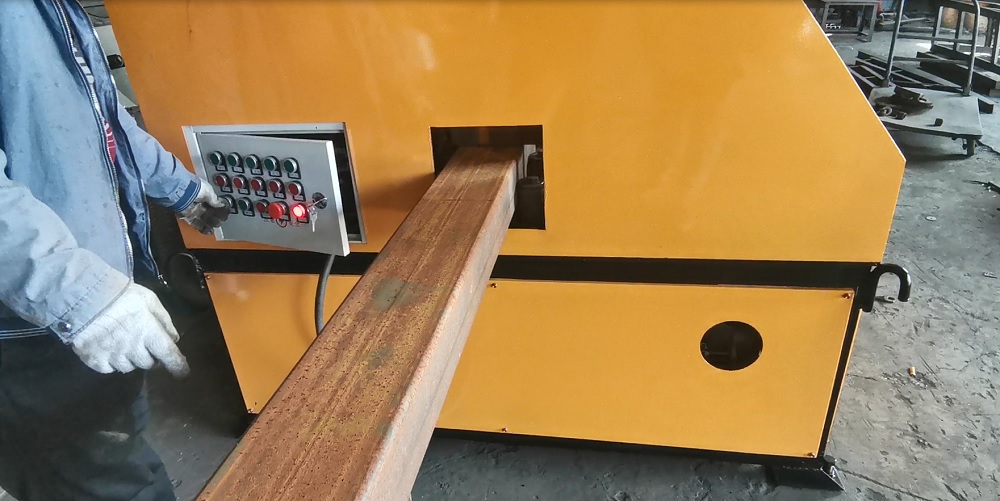

Box tube polishing machine we use for polishing square, rectangular pipe and tube, there is 4 polishing head on one working station that can have all four side of the flat pipe polished. This model is for maximum 120x120mm size polishing.

PRODUCT SPECIFICATION

• Technical Data
• Box tube polishing machine
• Model: WSPS-1-120
• Station number:1 (up/down/left/right 4pcs polishing wheel)
• Capacity: Maximum 120x120mm tube and pipes
• Abrasive wheel speed:2800rpm
• Abrasive wheel size:dia250 x thickness80mm, hole32mm
• Wheel motor: 4kwx 4pieces
• Feeding motor: 75kw
• Total power: 18kw
• Voltage: three phase
• Standard with up/down/left/righttotally four grinding wheel each working position
• Gross weight: 1100kgs
• Dimension: 1750x1740x1720mm(wooden crate size)
• Works also for flat bar and rectangular bar
