Aluminum tube polishing machine

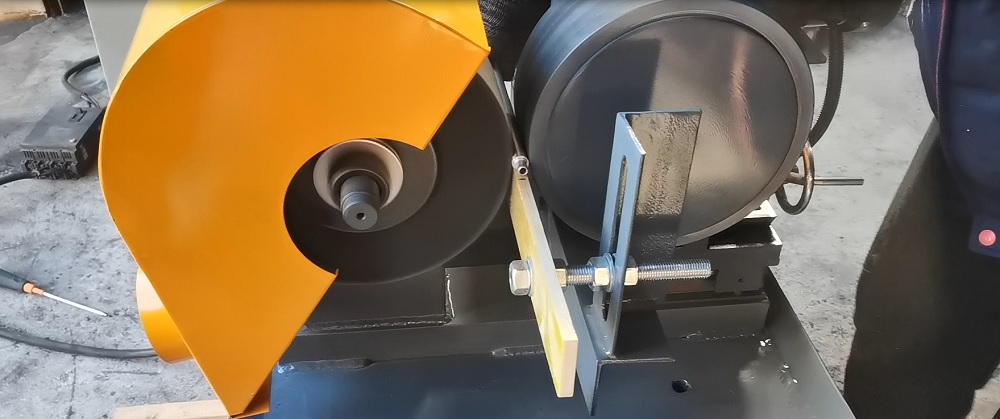

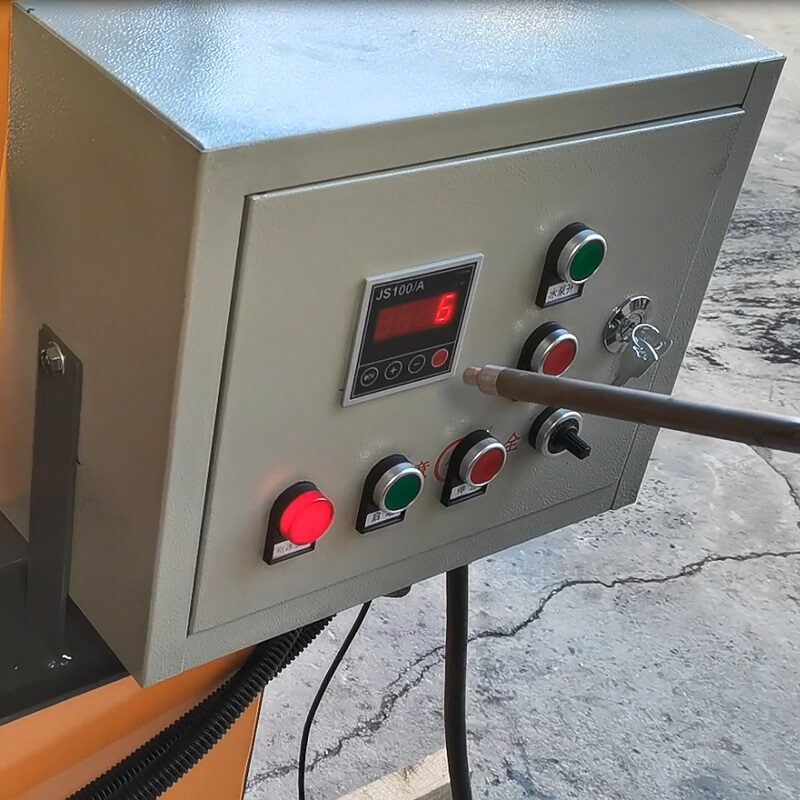

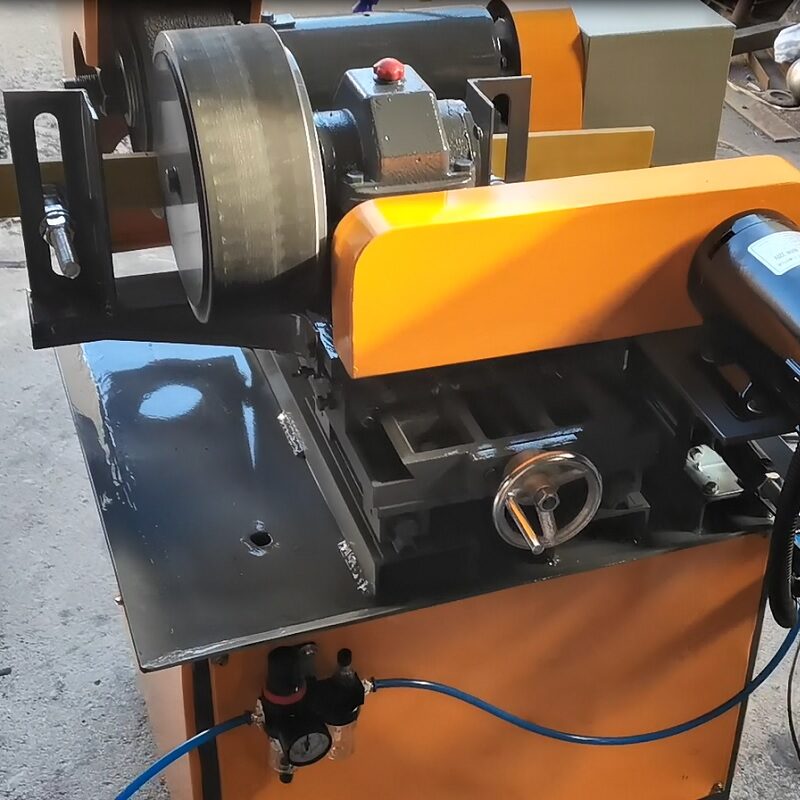

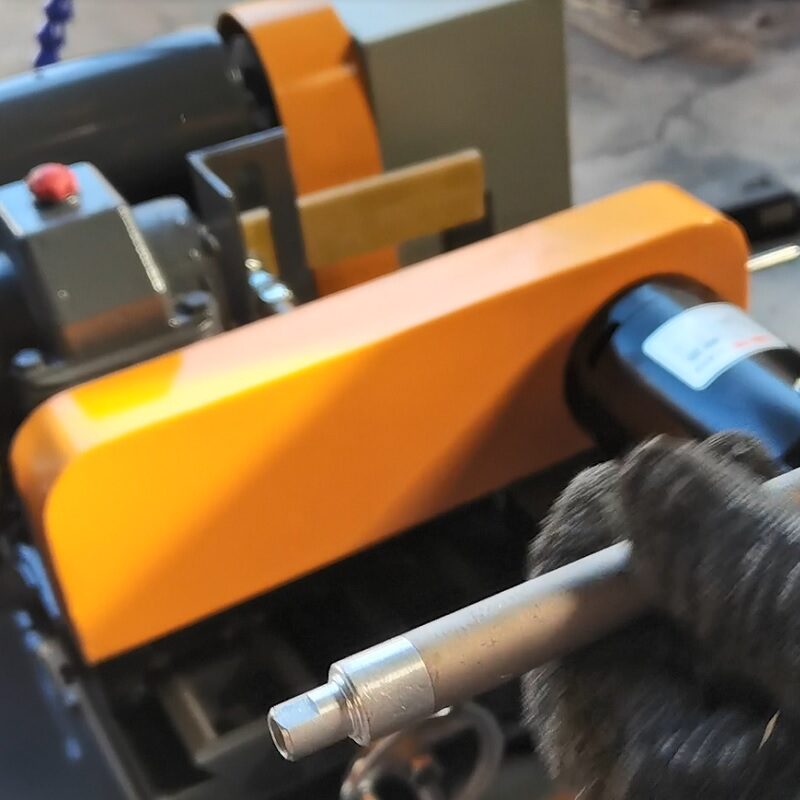

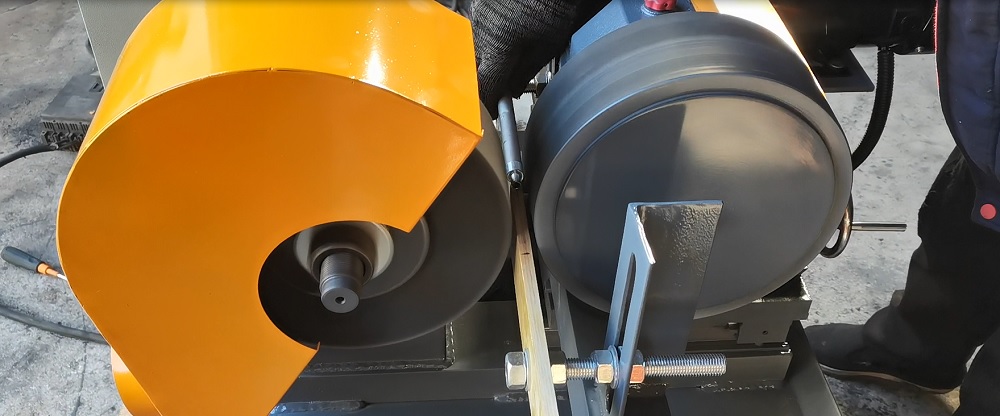

Aluminum tube polishing machine is a pneumatic type polishing machine for round pipes, by using footpedal you can control the movement of abrasive wheel and guide rubber wheel during polishing process, you can also set time to control the polishing time on the panel.

PRODUCT SPECIFICATION

• Technical Details
• Aluminum tube polishing machine
• Model: WSPR-1-100P
• Working capacity (min.and max.diameter) : 3-100mm
• Working capacity (min.and max.pipe length): 1-3000mm
• Station no.: 1
• Feeding speed: 1-6m/min(adjustable, stepless speed adjusting)
• Abrasive wheel speed: 2800rpm
• Abrasive wheel size: Dia250xthickness80mm,hole32mm
• Wheel motor: 4kw
• Feeding motor: 0.4kw
• Total power: 4.4kw
• Consumption: 9A
• Voltage: single-phase / 3-phase customized
• Standard with 1 set grinding wheel
• Gross weight: 220kgs
• Dimension: 950x950x1100 (wooden case size)
