Corrugated flexible tube polishing machine

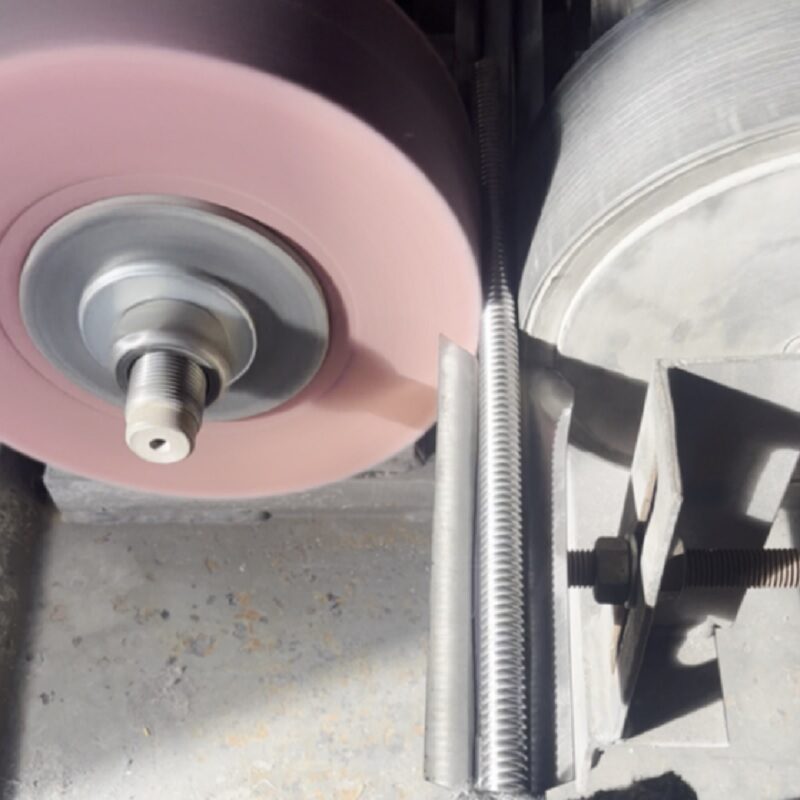

Corrugated flexible tube polishing machine we use for polishing corrugated hose grinding. We insert the bellow among the abrasive wheel and guide rubber wheel to get the polishing process done. It is to remove the dust on the stainless steel corrugated tube.

PRODUCT SPECIFICATION

• Technical Details
• Corrugated flexible tube polishing machine
• Model: WSPR-1-100P
• Working capacity (min.and max.diameter) : 3-100mm
• Working capacity (min.and max.pipe length): 1-3000mm
• Station no.: 1
• Feeding speed: 1-6m/min(adjustable, stepless speed adjusting)
• Abrasive wheel speed: 2800rpm
• Abrasive wheel size: Dia250xthickness80mm,hole32mm
• Wheel motor: 4kw
• Feeding motor: 0.4kw
• Total power: 4.4kw
• Consumption: 9A
• Voltage: single-phase / 3-phase customized
• Standard with 1 set grinding wheel
• Gross weight: 220kgs
• Dimension: 950x950x1100 (wooden case size)
