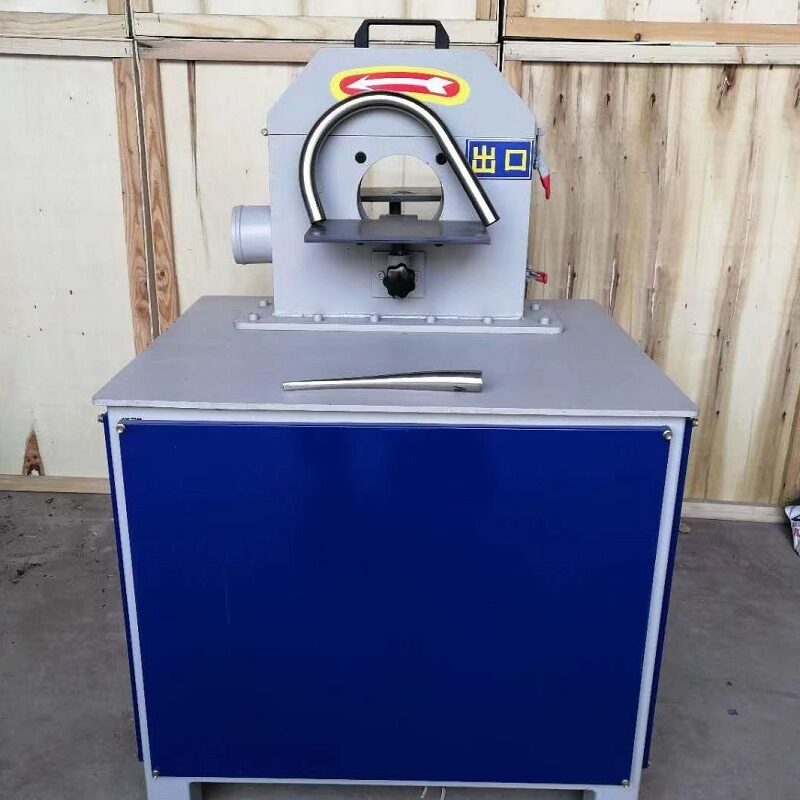

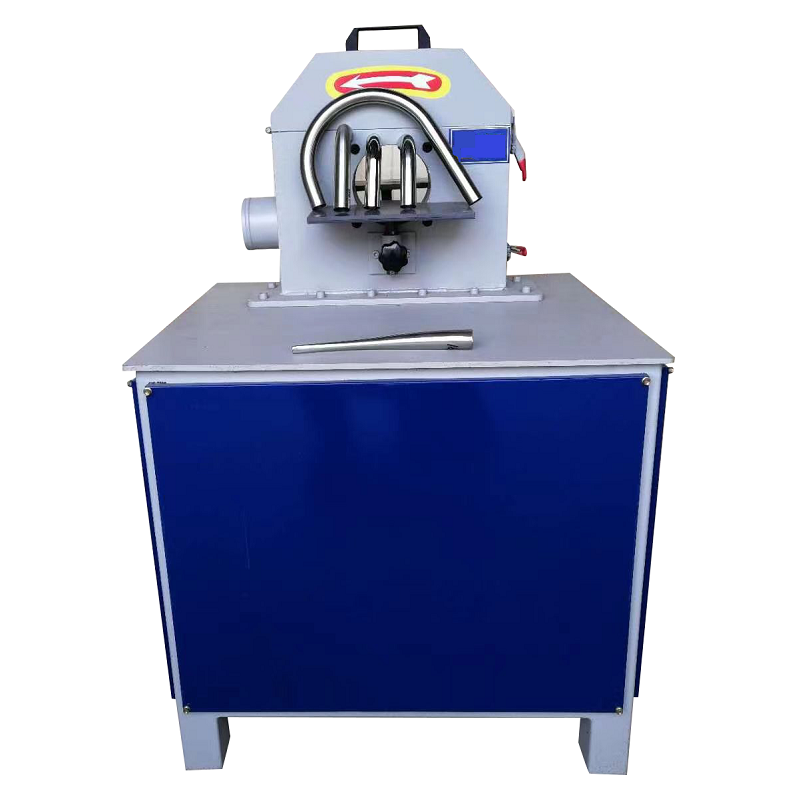

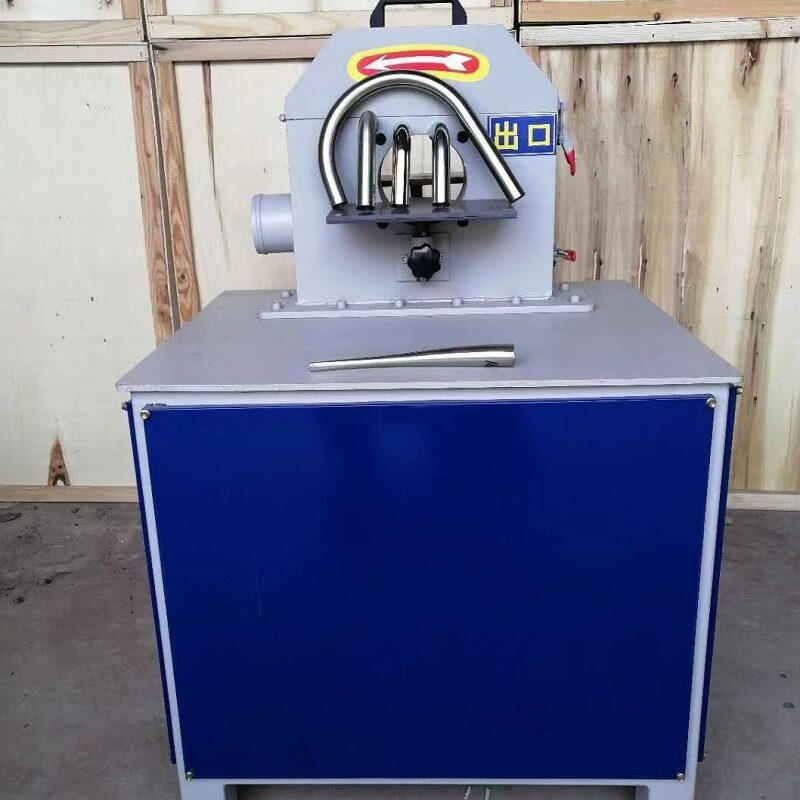

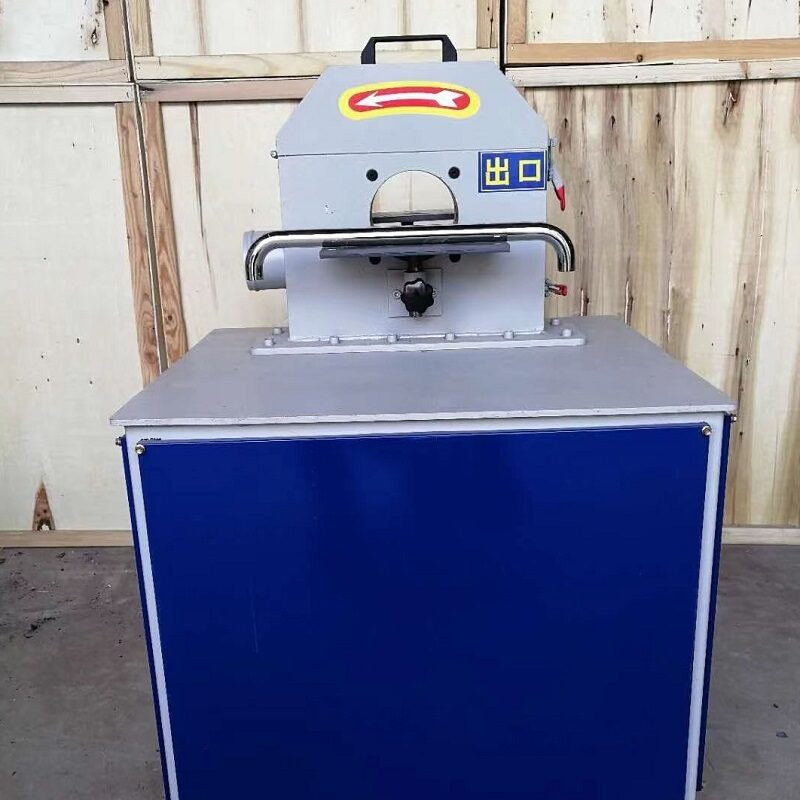

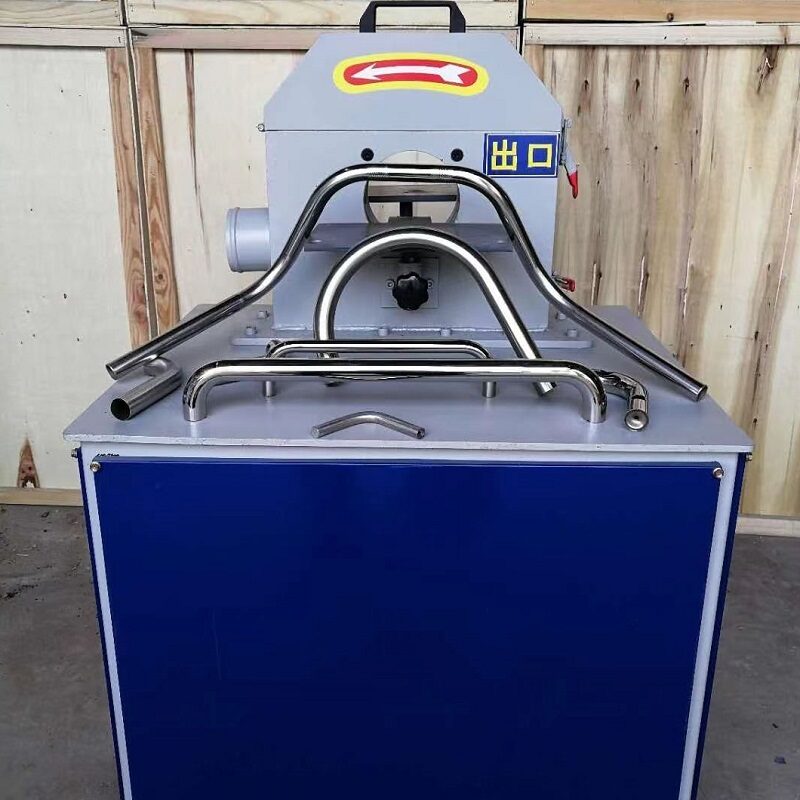

Bent Pipe Polishing Machine

Bent pipe polishing machine is suitable for variety of materials such as stainless steel,aluminum,brass,copper,wood.

Bent tube polishing machine – WSPB-1-70 – is the perfect choice for finishing the surface of round, oval, and elliptical tubes.

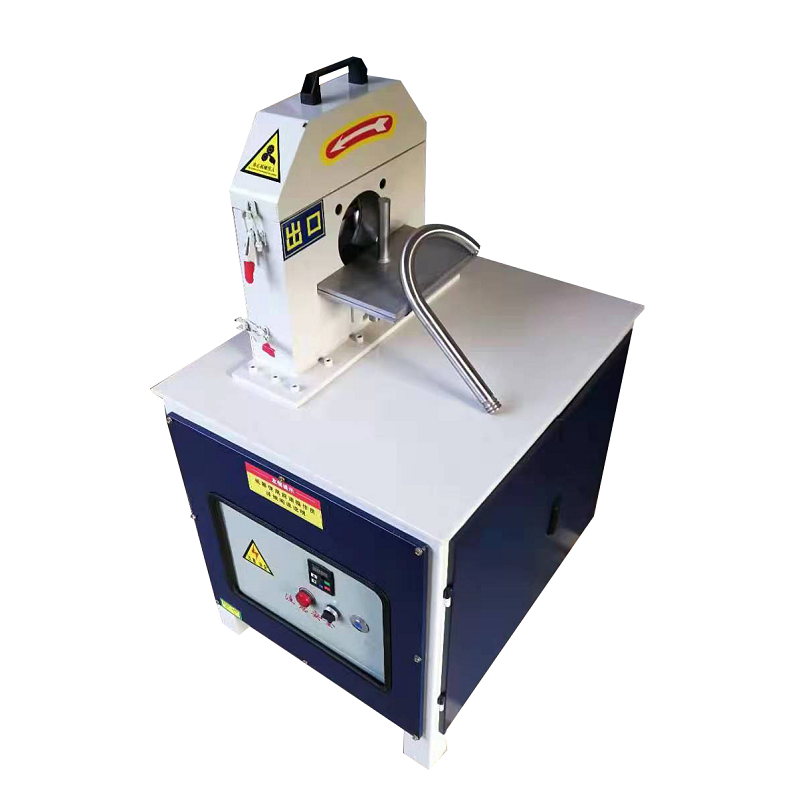

The planetary system allows the work to be done without rotating the tube, delivering the best results on both bent and curved tubes.
The auto feeding system transports straight tubes safely and automatically through the finishing station, delivering a consistent and highly productive tube polishing quality.
The WSPB-1-70 was designed to finish either straight tubes (automatically) or bent tubes (manually).

PRODUCT SPECIFICATION

• Bent tube polishing machine
• Model no.: WSPB-1-70
• Working capacity (min.and max.diameter): 1-70mm
• Working capacity (min.and max.pipe length):50mm-any
• Station no.:1
• Feeding speed:1-6m/min(manually control)
• Abrasive wheel speed:2800rpm
• Wheel motor:3kw
• Air blower motor:2.2kw
• Total power:5.2kw
• Voltage:single-phase / 3-phase customized
• Standard with 1 set grinding wheel
• Gross weight:140kgs
• Dimension:600x700x1200 (wooden case size)
