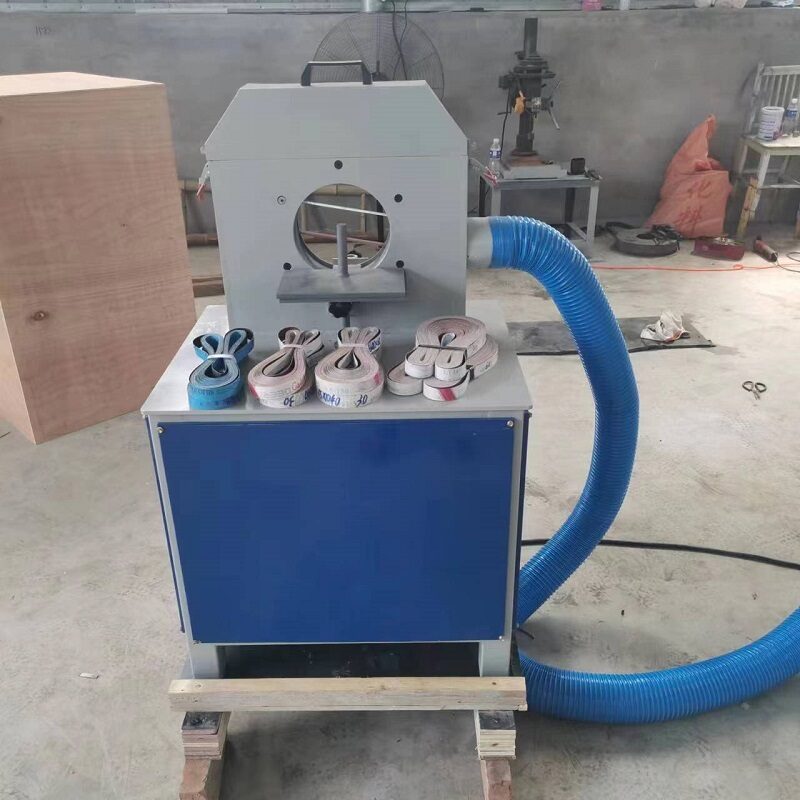

Planetary Pipe Polishing Machine

Planetary pipe polishing machine – WSPB-1-100 – is the perfect choice for finishing the surface of round, oval, and elliptical tubes.
The planetary system allows the work to be done without rotating the tube, delivering the best results on both bent and curved tubes.
The auto feeding system transports straight tubes safely and automatically through the finishing station, delivering a consistent and highly productive tube polishing quality.
The WSPB-1-70 was designed to finish either straight tubes (automatically) or bent tubes (manually).

PRODUCT SPECIFICATION

• Curvedtube polishing machine(capacity of diameter can be customized)
• Model no.: WSPB-1-100
• Working capacity (min.and max.diameter) : 1-100mm
• Working capacity (min.and max.pipe length): 50mm-any
• Station no. 1
• Feeding speed : 1-6m/min(manually control)
• Abrasive wheel speed: 2800rpm
• Wheel motor: 4kw
• Air blower motor: 2.2kw
• Total power: 6.2kw
• Voltage: single-phase / 3-phase customized
• Standard with 1 set grinding wheel
• Gross weight: 140kgs

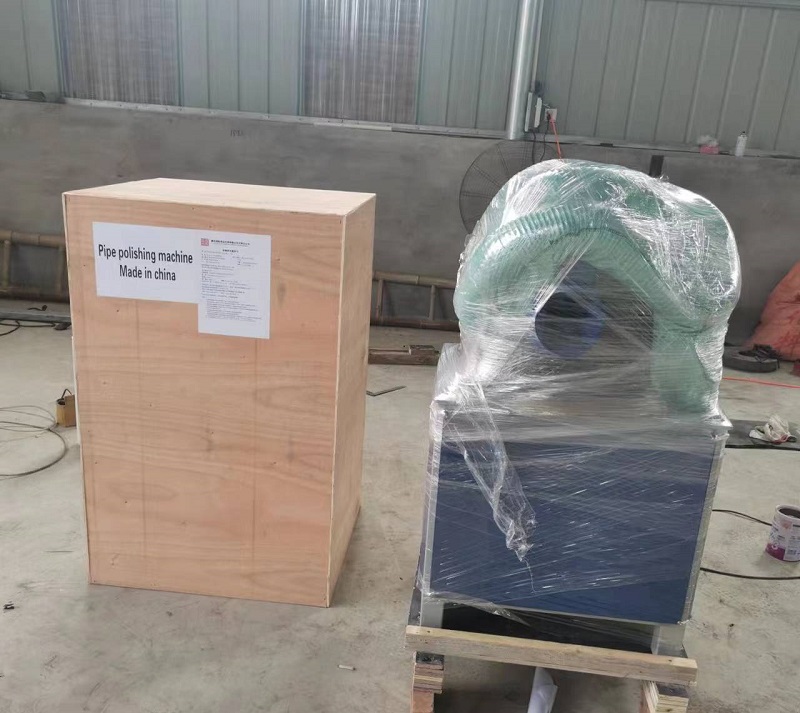

• Dimension: 600x700x1200 (wooden case size)
• Life of each set sanding bands is 4000meters for copper tube while 2000meters for steel and stainless steel tube
