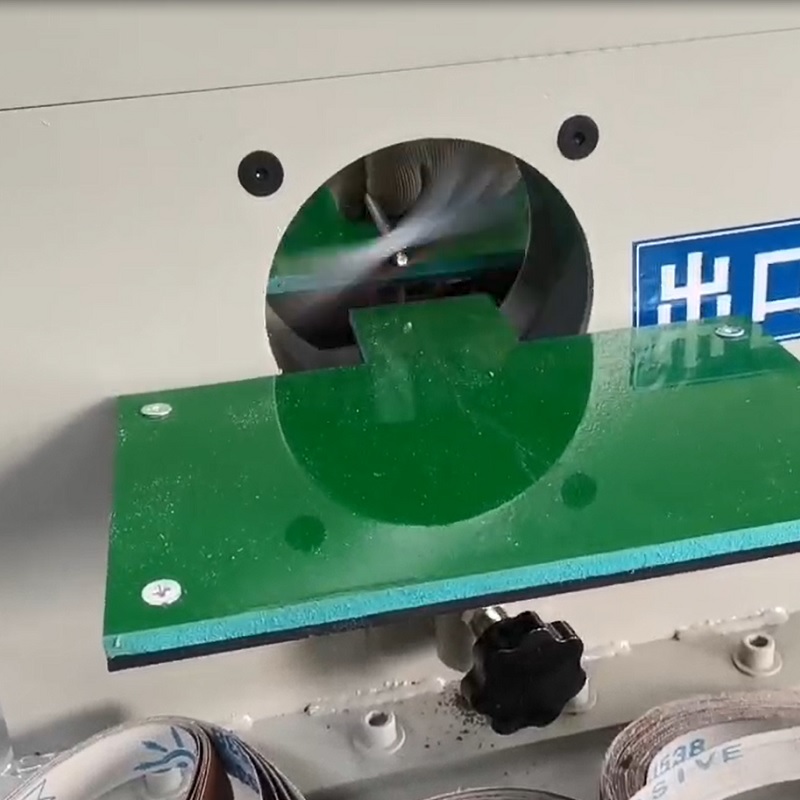

Planetary tube polishing machine
- Technical Details
- Planetary tube polishing machine
- Model no.: WSPB-1-100
- Working capacity (min.and max.diameter) : 1-100mm
- Working capacity (min.and max.pipe length): 50mm-any
- Station no. 1
- Feeding speed : 1-6m/min(manually control)
- Abrasive wheel speed: 2800rpm
- Wheel motor: 3kw
- Air blower motor: 2kw
- Total power: 2kw
- Voltage: single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight: 140kgs
- Dimension: 600x700x1200 (wooden case size)
- Life of each set sanding bands is 4000meters for copper tube while 2000meters for steel and stainless steel tube
Planetary tube polishing machine is for bend pipe, muffler system, motorcycle exhaust pipe polishing, automobile pipe, car and truck exhaust pipe polishing. This machine can work for polishing of both bending pipe and straight pipes.
PRODUCT SPECIFICATION
- Planetary tube polishing machine
- Model no.: WSPB-1-100
- Working capacity (min.and max.diameter) : 1-100mm
- Working capacity (min.and max.pipe length): 50mm-any
- Station no. 1
- Feeding speed : 1-6m/min(manually control)
- Abrasive wheel speed: 2800rpm
- Wheel motor: 3kw
- Air blower motor: 2.2kw
- Total power: 5.2kw
- Voltage: single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight: 140kgs
- Dimension: 600x700x1200 (wooden case size)
- Life of each set sanding bands is 4000meters for copper tube while 2000meters for steel and stainless steel tube
| Content | Data | Content | Data | ||||
| Working capacity | Diameter 1-100mm | Wheel motor | 3kw | ||||
| Working capacity | Length 50mm-any | Air blower motor | 2.2kw | ||||
| Station no. | 1 Station | Voltage | single-phase / 3-phase | ||||
| Feeding speed | 1-6m/min(adjustable) | Gross weight | 140kgs | ||||
| Abrasive wheel speed | 2800rpm | Dimension | 600*700*1200mm |
|
APPLICATION
Planetary tube polishing machine works for curved tube and pipes
- Truck and car exhaust pipe polishing
- Stair handrail pipe polishing
- Furniture bed pipe polishing
- Bathroom accessories tube and pipe polishing
FAQ
- Can the machine polish both curved/bending pipe and straight pipe?
- Yes, both are okay on this model.
- Do you have machine in stock?
- Yes, we have ready stock for regular machines, but if your voltage are different from what in China we will need 7-10days to customize motor for you.
- What accessories are included in machine?

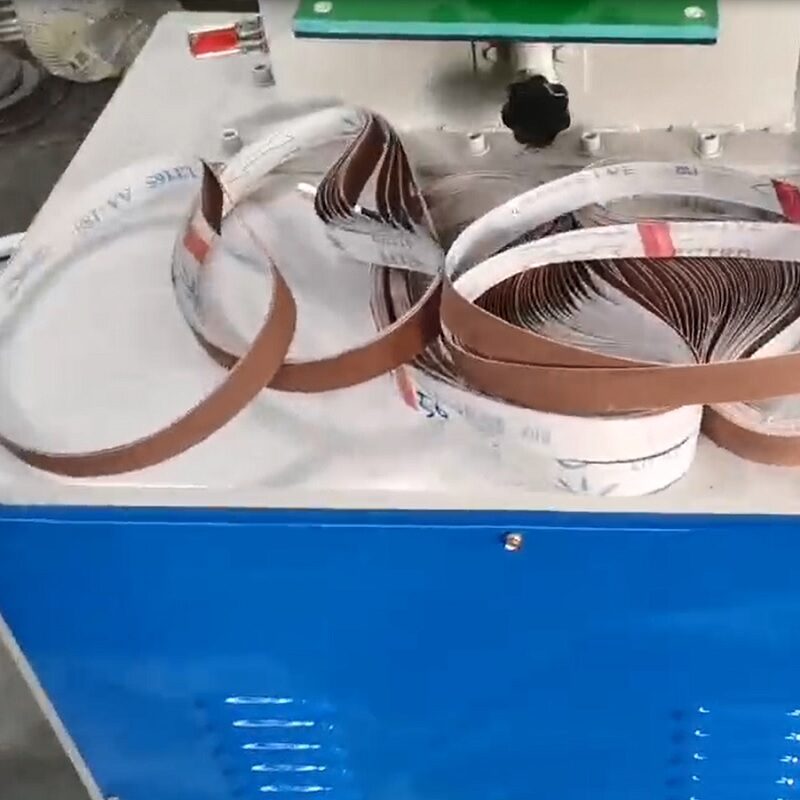

- One set free polishing sand belt and ventilation fan to collect scrap.
- How is the packaging?
- We use wrapping film and wooden crate to pack each machine.
- How can you place order?
- We accept T/T payment directly to our company account and we can also accept payment through Paypal and westernunion. We can ship by sea to sea port nearest to your city or ship to door. We do not have MOQ for our machines, we can ship any quantity.
