Big Diameter Pipe Grinding Machine
- Technical Details
- Big diameter pipe grinding machine
- Model no.: WSPR-2-350
- Working capacity (min.and max.diameter) 30-350mm
- Working capacity (min.and max.pipe length) 200mm to any
- Station no. 2
- Feeding speed 1-6m/min(adjustable, stepless speed adjusting)
- Abrasive wheel speed 2800rpm
- Abrasive wheel size Dia250xthickness80mm,hole32mm
- Wheel motor 4kw * 2pieces
- Feeding motor 0.75kw
- Air blower motor 2.2kw
- Total power 11kw
- Consumption 22A
- Voltage 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight 650kgs
- Dimension 1200x1100x1450 (wooden case size)

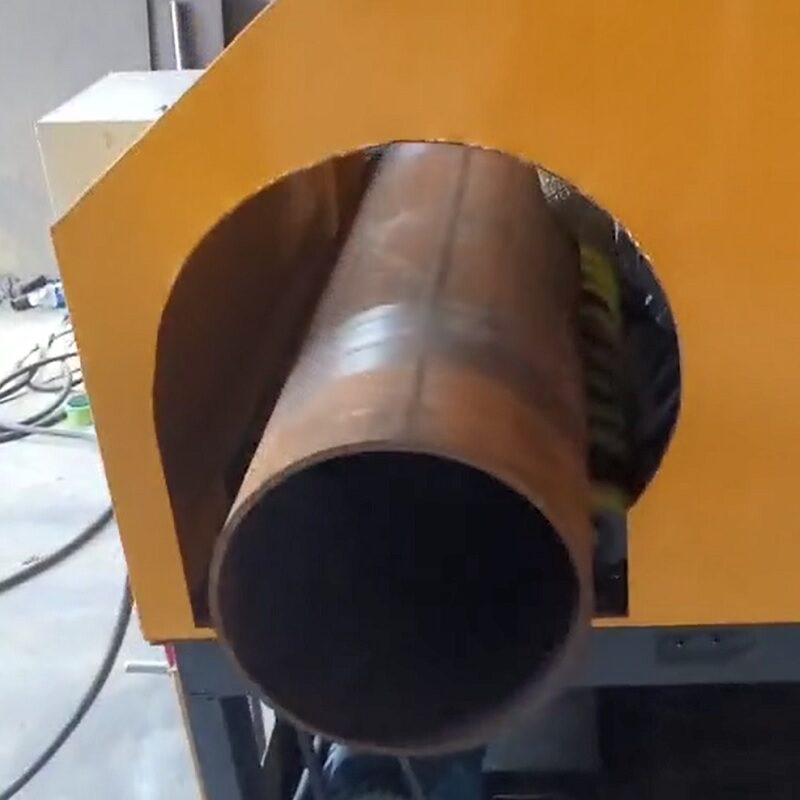

Big diameter pipe grinding machine have got total two polishing wheel on it, one for rough polishing while another for fine polishing. You can choose any grit of grinding wheel for this machine. This model is specially for bigger size of metal pipes grinding and polishing.
PRODUCT SPECIFICATION
- Big diameter pipe grinding machine
- Model no.: WSPR-2-350
- Working capacity (min.and max.diameter) 30-350mm
- Working capacity (min.and max.pipe length) 200mm to any
- Station no. 2
- Feeding speed 1-6m/min(adjustable, stepless speed adjusting)
- Abrasive wheel speed 2800rpm
- Abrasive wheel size Dia250xthickness80mm,hole32mm
- Wheel motor 4kw * 2pieces
- Feeding motor 0.75kw
- Air blower motor 2.2kw
- Total power 11kw
- Consumption 22A
- Voltage 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight 650kgs
- Dimension 1200x1100x1450 (wooden case size)
| Content | Data | Content | Data | ||||
| Working capacity | 30-350mm diameter | Wheel motor | 4kwx2pcs | ||||
| Working capacity | Length 200mm-any | Feeding motor | 0.75kw | ||||
| Station no. | 2 Station | Voltage | single-phase / 3-phase | ||||
| Feeding speed | 1-6m/min(adjustable) | Gross weight | 650kgs | ||||
| Abrasive wheel speed | 2800rpm | Dimension | 1200*1100*1450mm |
APPLICATION

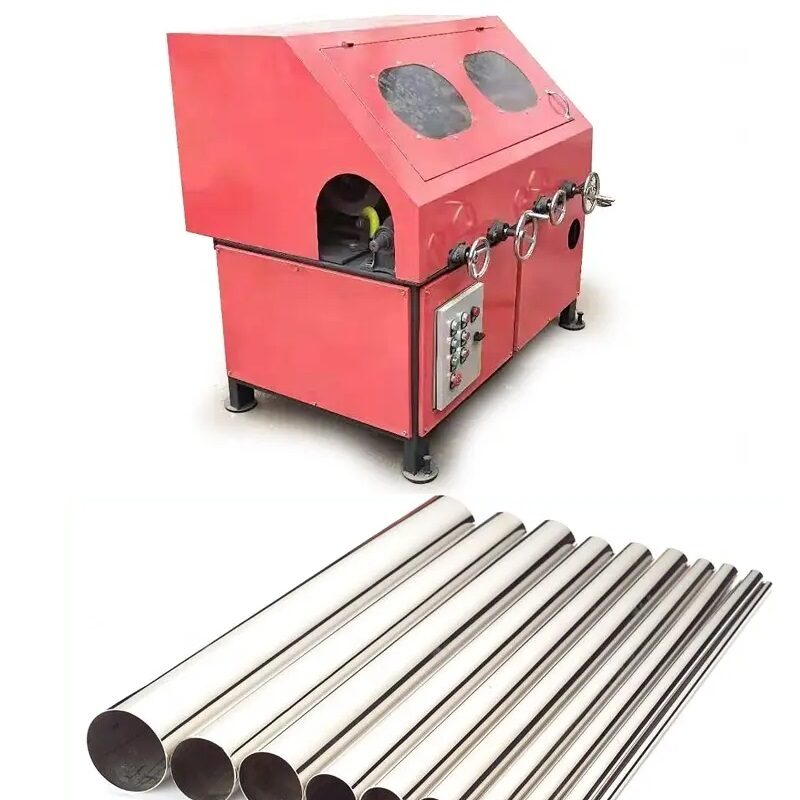

- This equipment is used for grinding and polishing (matte,mirror) the outer surface of the round tube with diameter 30-350 mm.
- According to the diameter of the pipe, the distance between the grinding head and the guide wheel can be adjusted.
- According to the customer’s requirements for the surface roughness and brightness of the workpiece, different abrasive belts or polishing wheels can be choosed.
- Machine can also be equipped with multiple sets of grinding heads.
FAQ
- What kind of grinding wheel do we use on our machine?

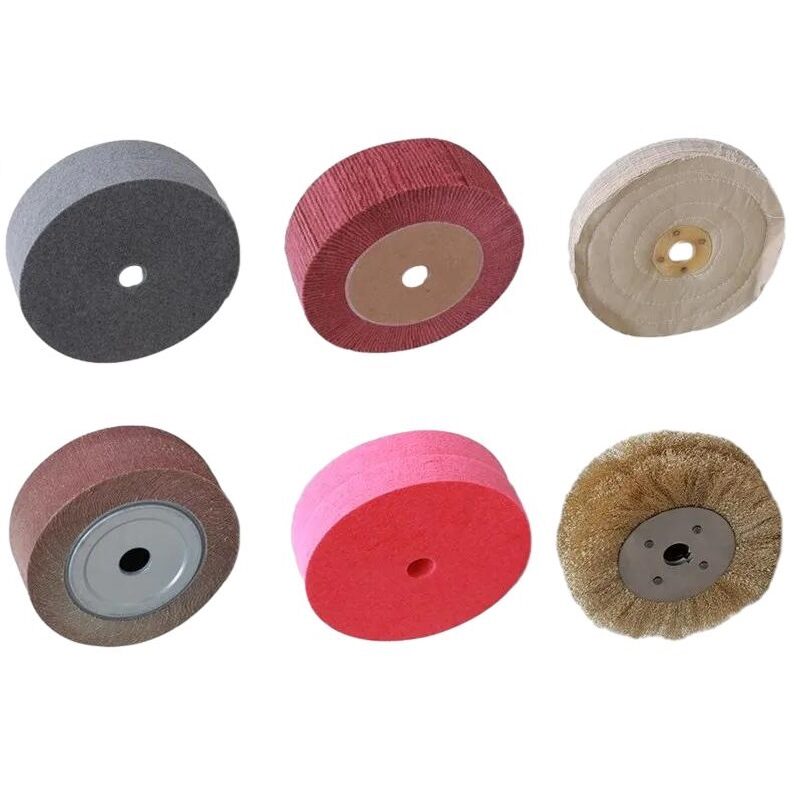

- We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.
- What is the assembly size of the abrasive wheel?
- Diameter 250mm, width 40x2mm, Inner hole diameter 32mm.
- Is the tube polishing machine fully automatic?
- We have both manual feeding and automatic feeding.
- Do you have machine in stock?
- Yes, we have ready stock for regular machines, but if your voltage are different from what in China we will need 7-10days to customize motor for you.
- What accessories are included in machine?
- One set free abrasive wheel, dust shell andventilation fan.
- How is the packaging?
- We use wrapping film and wooden crate to pack each machine.
- How can you place order?
- We accept T/T payment directly to our company account and we can also accept payment through Paypal and westernunion. We can ship by sea to sea port nearest to your city or ship to door. We do not have MOQ for our machines, we can ship any quantity.
