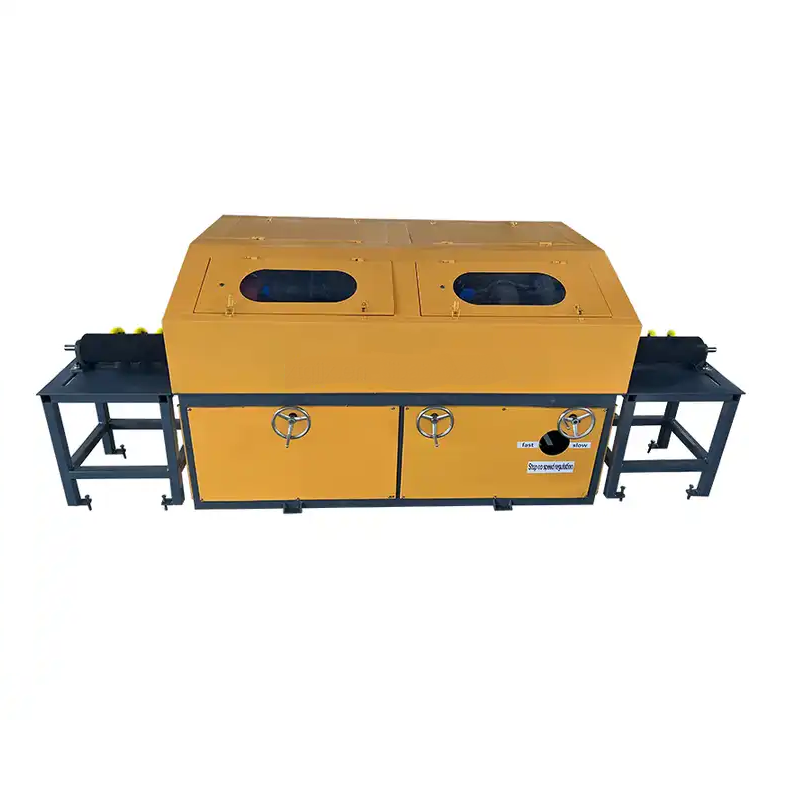

High speed pipe deburring machine for pipe polish
- Technical Details
- High speed pipe deburring machine for pipe polish
- Model no.: WSPR-2-120H
- Working capacity (min.and max.diameter): 4-120mm
- Working capacity (min.and max.pipe length):10mm - any
- Station no.:2
- Feeding speed:1-15meters/min(adjustable, stepless speed adjusting)
- Abrasive wheel speed:2800rpm
- Abrasive wheel size:Dia250xthickness80mm,hole32mm
- Wheel motor:4kw * 2pieces
- Feeding motor:0.75kw
- Air blower motor:2.2kw
- Total power:11kw
- Consumption:22A
- Voltage:3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:500kgs
- Dimension:1250x1100x1200 (wooden case size)

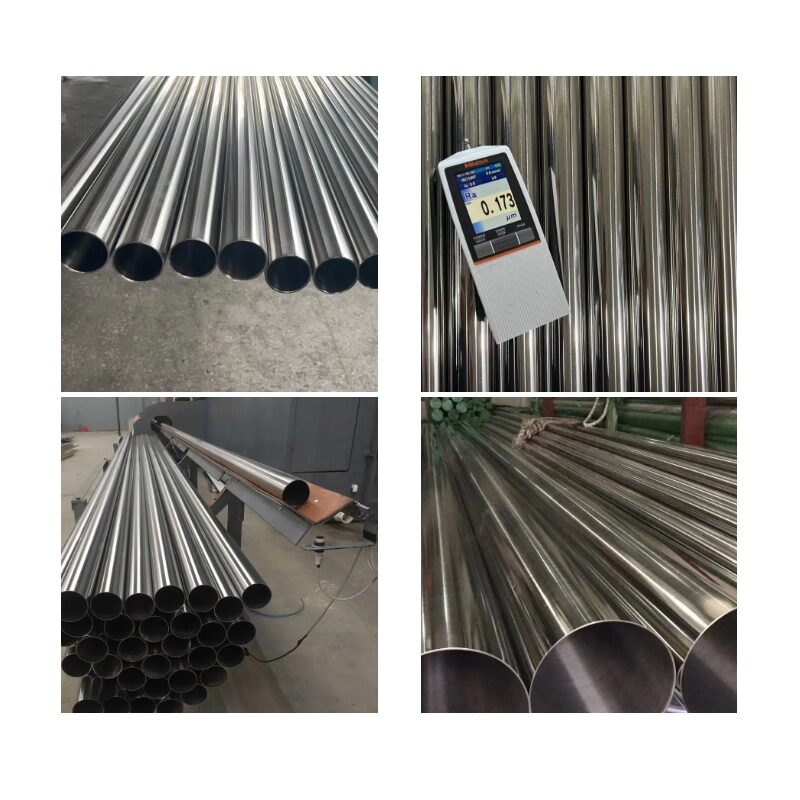

High speed pipe deburring machine for pipe polish have got adjustable speed, the maximum speed can be set to 15 meters polishing per minute, for high effeciency pipe and tube polishing work. This machine is in new design with fast polishing speed. The regulating wheel speed can be adjusted to meet the requirements of different polishing requirements and different speed of the workpiece grinding and polishing requirements. Optional dust removal system is available. It is suitable for polishing and polishing of all kinds of rod, square pipe, rectangular pipe and strip steel outer surface in metal plating, auto and motorcycle parts,machinery manufacturing, decoration and for other industries.
PRODUCT SPECIFICATION
- High speed pipe deburring machine for pipe polish
- Model no.: WSPR-2-120H
- Working capacity (min.and max.diameter): 4-120mm
- Working capacity (min.and max.pipe length):10mm – any
- Station no.:2
- Feeding speed:1-15meters/min(adjustable, stepless speed adjusting)
- Abrasive wheel speed:2800rpm
- Abrasive wheel size:Dia250xthickness80mm,hole32mm
- Wheel motor:4kw * 2pieces
- Feeding motor:0.75kw
- Air blower motor:2.2kw
- Total power:11kw
- Consumption:22A
- Voltage:3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:500kgs
- Dimension:1250x1100x1200 (wooden case size)
| Content | Data | Content | Data | ||||
| Working capacity | 4-120mm diameter | Wheel motor | 4kwx2pcs | ||||
| Working capacity | Length 10mm-any | Feeding motor | 0.75kw | ||||
| Station no. | Two Station | Voltage | single-phase / 3-phase | ||||
| Feeding speed | 1-15m/min(adjustable) | Gross weight | 500kgs | ||||
| Abrasive wheel speed | 2800rpm | Dimension | 1250*1100*1200mm |
APPLICATION
Dust cover
Dust cover ensure safe working (preventing workpiece from jumping out) and a clean work shop environment, can be connected to the air blower.

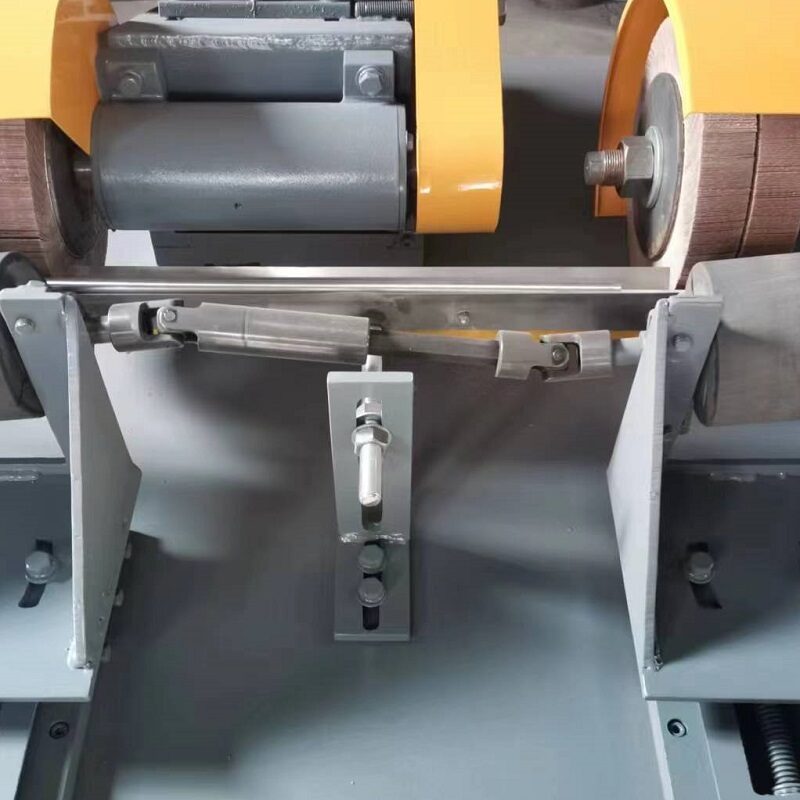

Internal structure of machine
The belt device is reinforced to have the grinding and polishing process more stable
Adjusting wheel
Free to adjust the thickness of the product, it is easy to operate
Feeder
The equipment can be equipped with another feeding rack
Multiple pipes can be placed together and fed at the same time without manual operation
FAQ
- Is this pipe polishing machine speed adjustable?
- Yes,can be set to slow or fast according to the application.
- What is the difference between single-station machine and two station polishing machine?
- Single-head machine means there is only single one grindingwheel, while for two head machine there is several working position with different material of buffing wheels.
- What kind of grinding wheel do we use on our machine?
- We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.
- What is the life span of the abrasive wheel?
- 3500meters pipe polishing each.
- What is the assembly size of the abrasive wheel?
- Diameter 250mm, width 40x2mm, Inner hole diameter 32mm.
- What accessories are included in machine?
- One set free abrasive wheel and air blower, dust collector
- How is the packaging?
- We use wrapping film and wooden crate to pack each machine.
- How we guarantee the quality?
- We will test at least one pipes on every polishing machine before shipping out.Some of our heavy duty models of tube polishing machine works well after even 8 years according to our client feedback, for all of our machine we offer one year warranty.
