Double Working Position Steel Pipe Polishing Machine For Big Diameter Big Size Pipes

Double Working Position Steel Pipe Polishing Machine For Big Diameter Big Size Pipes

The pipe polishing machine can be equipped with various polishing wheels to create different drawing effects, widely used in polishing of stainless steel, steel non-ferrous metals, plastic, and wood on the grinding, polishing, fine polishing.

Hangzhou wise machinery co., ltd. offers a complete line of finishing equipment for tube and pipe processing. Designed to limit your downtime and minimize material waste, our equipment is customized to fit your specifications and integrate seamlessly within your production line. We prioritize operator safety and efficiency by offering both manual and automatic pipe tube feeding solutions. Contact us to find the full finishing system or single machine to fit your needs.

PRODUCT SPECIFICATION

• Model no.: WSPR-2-350
• Vertical type 2 station pipe polishing machine(heavy duty for big diameter pipes)
• Working capacity (min.and max.diameter) 30-350mm
• Working capacity (min.and max.pipe length) 200mm to any
• Station no. 2
• Feeding speed  1-6m/min(adjustable, stepless speed adjusting)
• Abrasive wheel speed 2800rpm
• Abrasive wheel size Dia250xthickness80mm,hole32mm
• Wheel motor 4kw * 2pieces
• Feeding motor 0.75kw
• Air blower motor 2.2kw
• Total power 11kw
• Consumption 22A
• Voltage 3-phase customized
• Standard with 1 set grinding wheel
• Gross weight 650kgs
• Dimension 1200x1100x1450 (wooden case size)

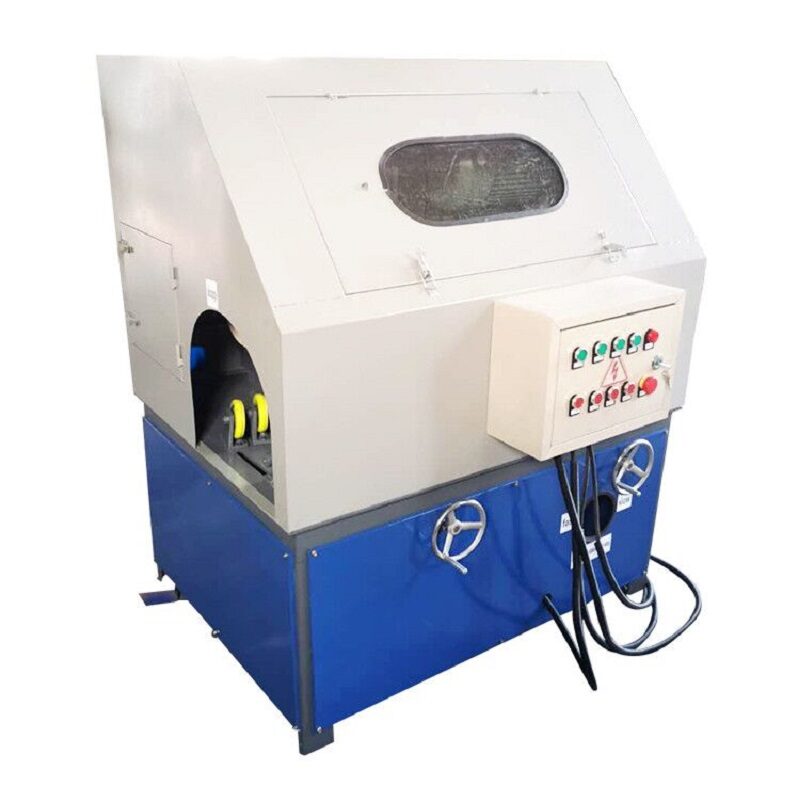

Tube polishing machine – WSPR-2-350 – is the perfect choice for finishing the surface of round pipe and tubes.
It is simple to work with. You only have to insert the pipe manually and the guide wheel will push the pipe go forward in the meantime the grinding wheel will polish the pipe automatically.
