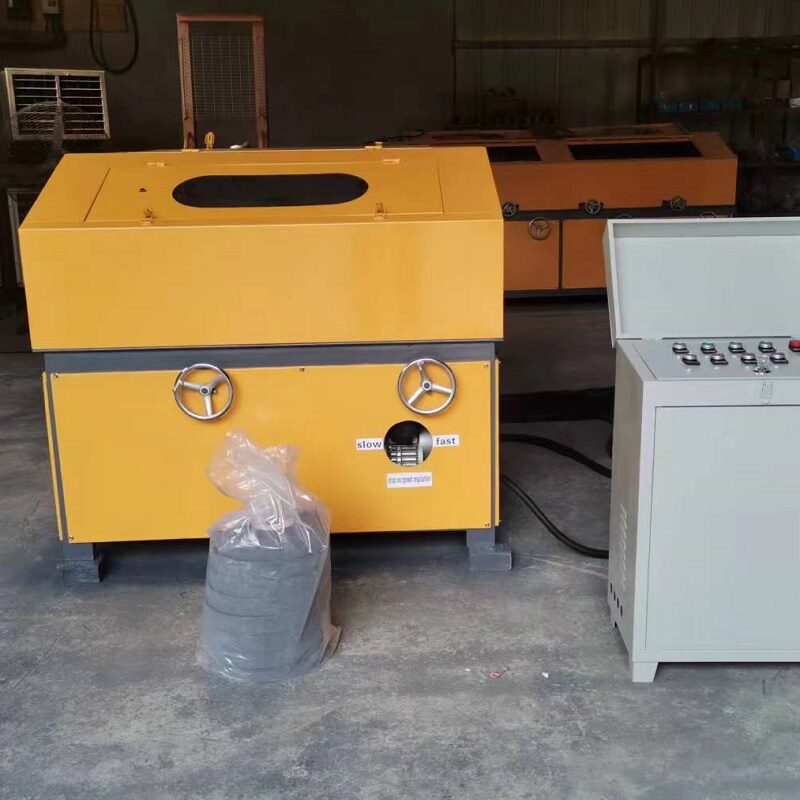

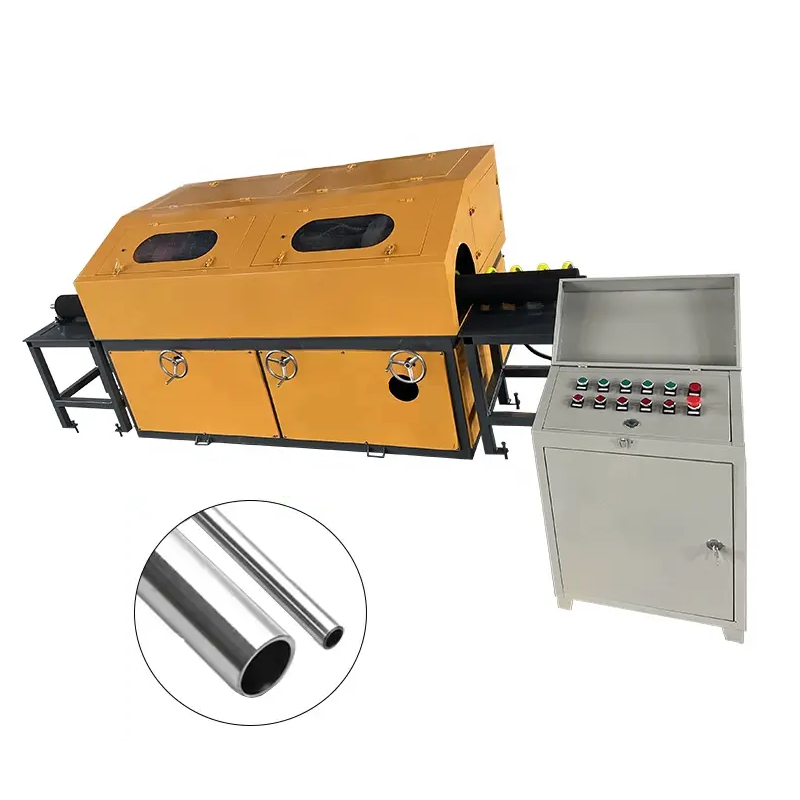

Metal pipe polishing machine with pipe stands

Metal pipe polishing machine with pipe stands is to grind round pipe and to polish metal bars. This machine have got two working position (polishing head) on it which makes it possible to polish one pipe twice in one time. We can put different material of grinding wheels in each working position so that we can get the right surface finish we want. The feeding shelf / feeding rack is not powered, the main polishing motor can drive the pipe going forward, pipe shelf is just for supporting the pipe, there is plastic rollers on it for smooth moving of pipes.

PRODUCT SPECIFICATION

• Metal pipe polishing machine with pipe stands
• Model no.: WSPR-2-160
• Working capacity (min.and max.diameter):8-160mm
• Working capacity (min.and max.pipe length):500mm to any
• Station no.:2
• Feeding speed: 1-6m/min(adjustable, stepless speed adjusting)
• Abrasive wheel speed:2800rpm
• Abrasive wheel size:Dia250xthickness80mm,hole32mm
• Wheel motor:4kw * 2pieces
• Feeding motor:0.75kw
• Air blower motor:2kw
• Total power:11kw
• Consumption:22A
• Voltage:3-phase customized
• Standard with 1 set grinding wheel
• Gross weight:500kgs
• Dimension:1250x1100x1200 (wooden case size)


APPLICATION

Pipe polishing machine with pipe stands are widely used in brushed effect hairline aluminum profile, exhaust pipe, plastic pipe burrs removing, smooth surface of wooden stick,  natural gas pipe line derusting, hardware accessories and metal parts, glass fiber pipe, stainless steel pipe hairline drawing effect, stainless steel pipe scratch removing, mirror effect for stainless steel pipe, medical use pipe mirror grade surface grinding, kitchen and toilet item silk effect, flexible pipe, gas tank rust removal, special item such as battery and electric heating pipe.

FAQ

• Is this pipe polishing machine working for both round pipe and round bolt?
• Yes, it works for both of them.

• What is the difference between single-station machine and two station polishing machine?
• Single-head machine means there is only single one grindingwheel, while for two head machine there is several working position with different material of buffing wheels.

• What kind of grinding wheel do we use on our machine?

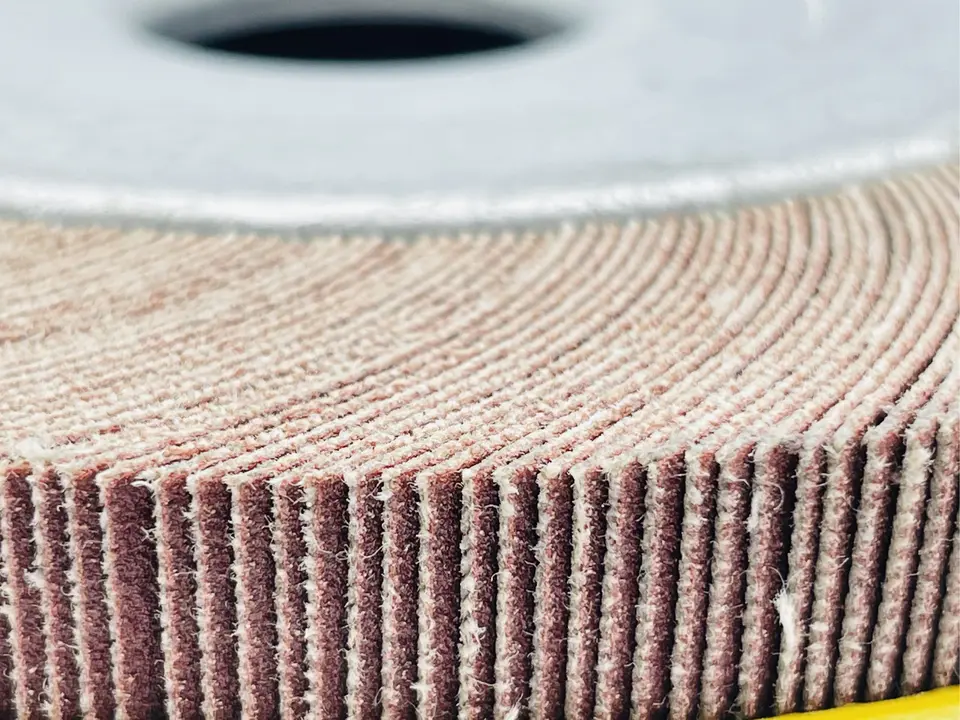

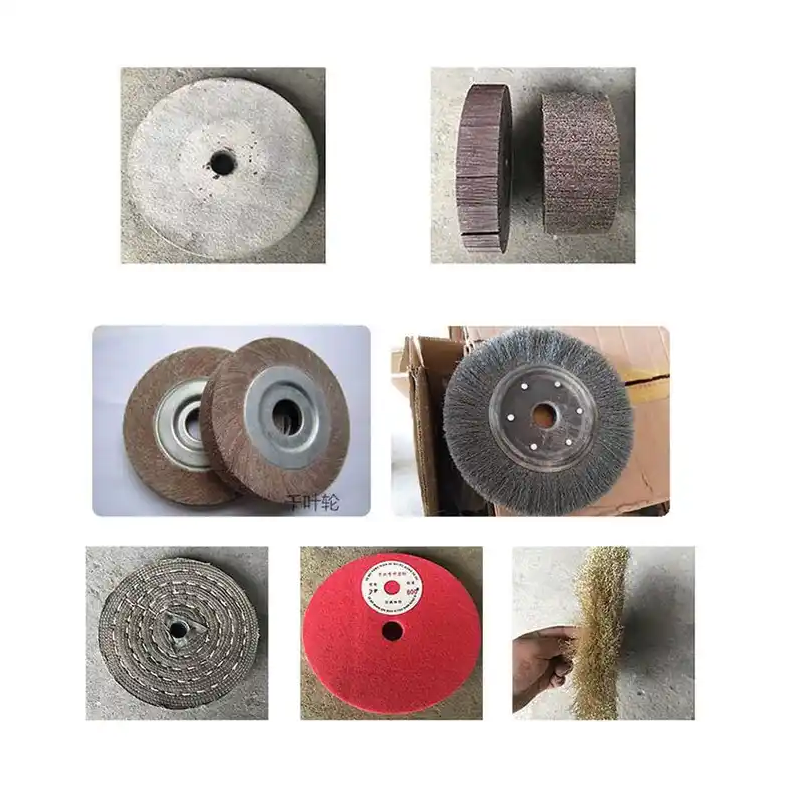

• We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.

• What is the life span of the abrasive wheel?
• 3500meters pipe polishing each.

• What is the assembly size of the abrasive wheel?
• Diameter 250mm, width 40x2mm, Inner hole diameter 32mm.

• Is the tube polishing machine fully automatic?
• We have both manual feeding and automatic feeding.

• Do you have machine in stock?
• Yes, we have ready stock for regular machines, but if your voltage are different from what in China we will need 7-10days to customize motor for you.

• What accessories are included in machine?
• One set free abrasive wheel and air blower, dust collector

• How is the packaging?
• We use wrapping film and wooden crate to pack each machine.

• How can you place order?
• We accept T/T payment directly to our company account and we can also accept payment through Paypal and westernunion. We can ship by sea to sea port nearest to your city or ship to door. We do not have MOQ for our machines, we can ship any quantity.
