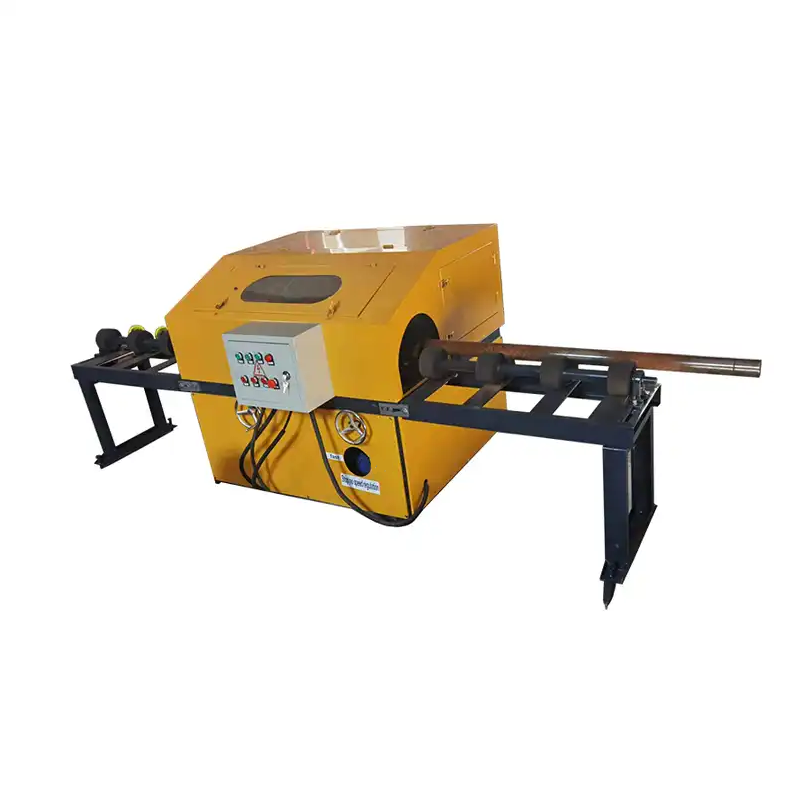

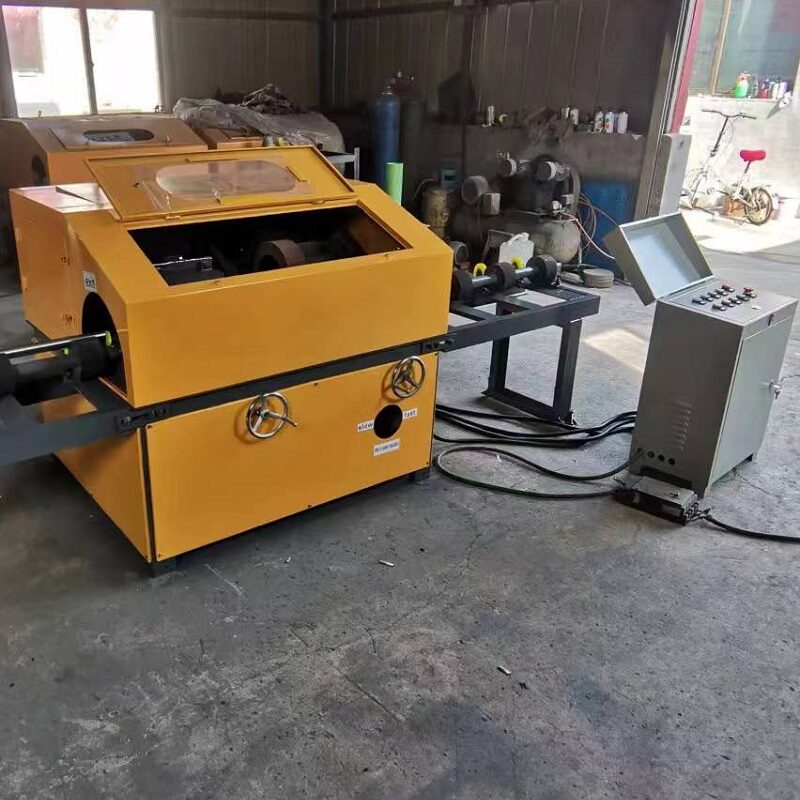

Satin Tube Polishing Machine With Feeder

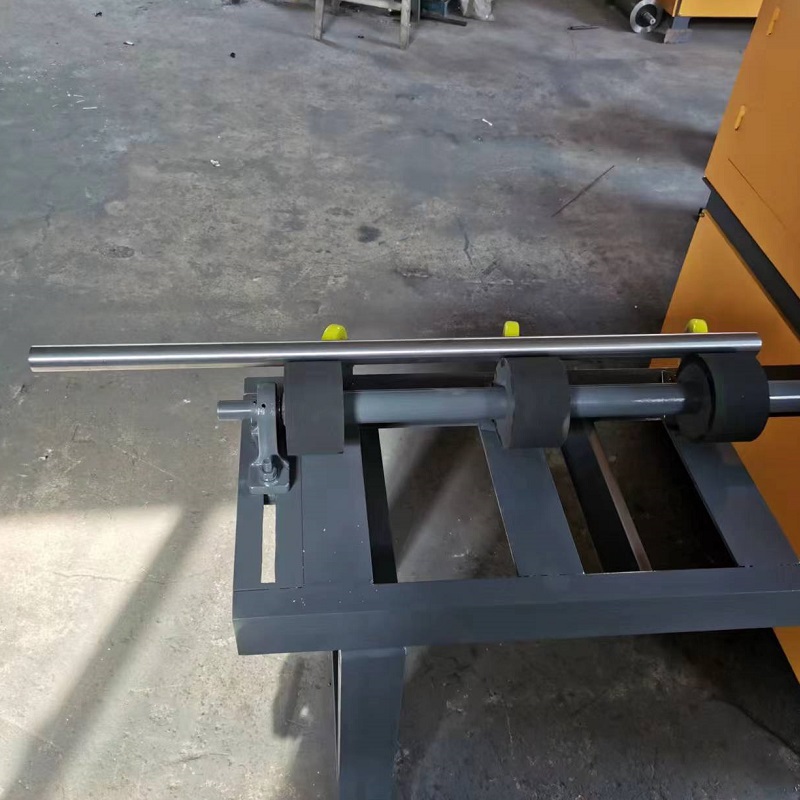

Satin tube polishing machine with feeder are equipped with the pipe feeding stands which is not motorized, the main polishing motor have enough power to polish and push the pipe going forward, the pipe shelf is just working as the platform to support the pipe, meanwhile, there is plastic rollers on it for smooth moving of pipes. A satin finish, also known as a matte finish, is not reflective or shiny. Satin finish is more forgiving when it comes to smudges and dirt, basically saving you time constantly wiping and polishing.

PRODUCT SPECIFICATION

• Satin tube polishing machine with feeder
• Model no.: WSPR-2-160
• Working capacity (min.and max.diameter):8-160mm
• Working capacity (min.and max.pipe length):500mm to any
• Station no.:2
• Feeding speed: 1-6m/min(adjustable, stepless speed adjusting)
• Abrasive wheel speed:2800rpm
• Abrasive wheel size:Dia250xthickness80mm,hole32mm
• Wheel motor:4kw * 2pieces
• Feeding motor:0.75kw
• Air blower motor:2kw
• Total power:11kw
• Consumption:22A
• Voltage:3-phase customized
• Standard with 1 set grinding wheel
• Gross weight:500kgs
• Dimension:1250x1100x1200 (wooden case size)

INTRODUCTION OF OUR COMPANY

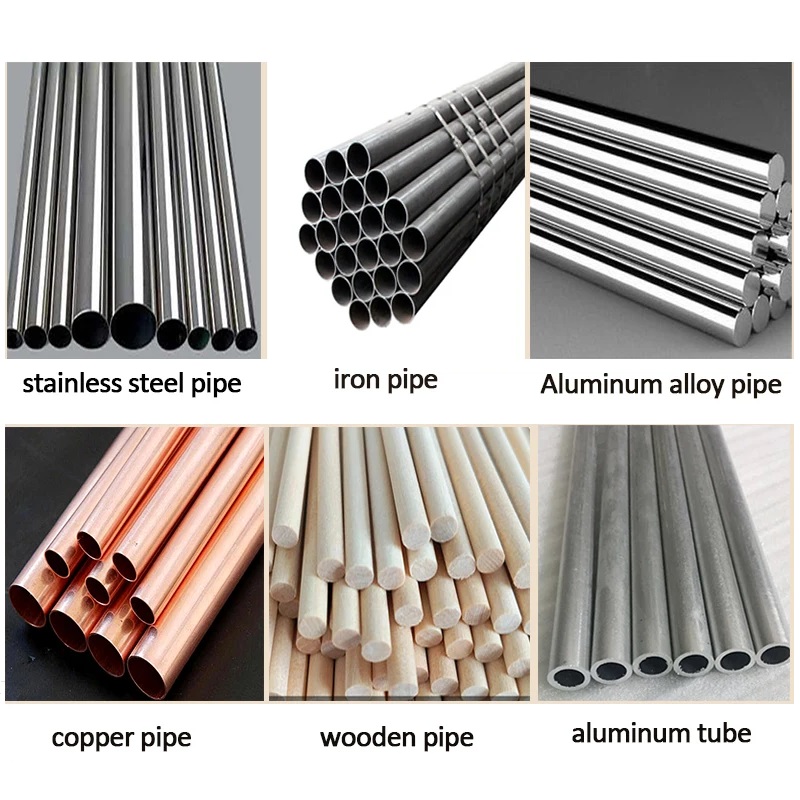

Hangzhou Wise Machinery Co., Ltd. is a surface treatment and polishing machine manufacturer integrating innovative R&D, production and sales. The company is located in Hangzhou City. Its products includes smart polishing machines, automatic sanding machines, automatic belt sanding and polishing machine. Applicable industries includes surface treatment of iron, copper, aluminum, stainless steel, titanium-magnesium alloy pipe and tubes and other metal products in furniture,  aviation, automobile, bathroom, new energy, architectural decoration, home appliances, kitchen utensils, electronics, luggage accessories, etc. Besides, we can customize non-standard special polishing machine according to customer’s requirement.

FAQ

• How long is the leadtime?
• We have ready stock and fast response for machine with customized voltage, usually the lead time will be 3-7 days after

• What is the difference between single-station machine and two station polishing machine?
• Single-head machine means there is only single one grindingwheel, while for two head machine there is several working position with different material of buffing wheels.

• What kind of grinding wheel do we use on our machine?
• We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.

• What is the life span of the abrasive wheel?
• 3500meters pipe polishing each.

• What is the assembly size of the abrasive wheel?
• Diameter 250mm, width 40x2mm, Inner hole diameter 32mm.

• Is the tube polishing machine fully automatic?
• We have both manual feeding and automatic feeding.

• Do you have machine in stock?
• Yes, we have ready stock for regular machines, but if your voltage are different from what in China we will need 7-10days to customize motor for you.

• What accessories are included in machine?
• One set free abrasive wheel and air blower, dust collector

• How is the packaging?
• We use wrapping film and wooden crate to pack each machine.

• How can you place order?
• We accept T/T payment directly to our company account and we can also accept payment through Paypal and westernunion. We can ship by sea to sea port nearest to your city or ship to door. We do not have MOQ for our machines, we can ship any quantity.
