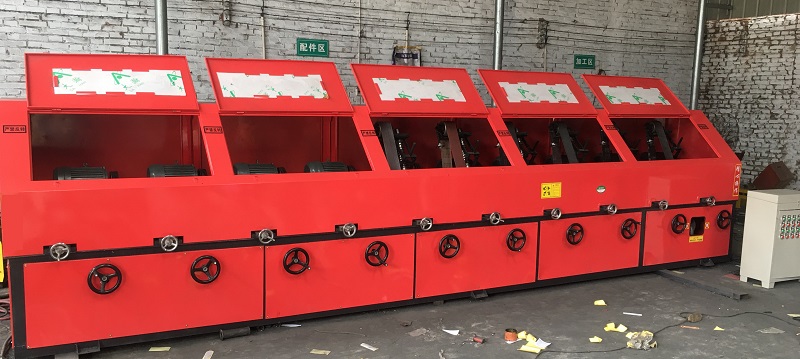

10-Station Round Pipe Polishing Machine

Pipe polishing machine- Polishing is a process in which rough and coarse surfaces become smooth and shiny, and this process is done through grinding machines or polishing machines (Buffing machines).

Our range of tube polishing machines can blend welds, remove scratch marks, round off flat spots and apply brushed, satin or mirror finishes. They are effective on tube, bar and pipes with typical applications including balustrades, food and drink plant, marine fitments, rollcages, furniture and bollards.

The pipe polishing machine can be equipped with various polishing wheels to create different drawing effects, widely used in polishing of stainless steel, steel non-ferrous metals, plastic, and wood on the grinding, polishing, fine polishing.

Technical Details

• Model no.: WSPR-10-160
• Vertical type 10 station pipe polishing machine
• Working capacity (min.and max.diameter): 8-160mm
• Working capacity (min.and max.pipe length): 500mm to any
• Station no. 10
• Feeding speed:  1-6m/min(adjustable, stepless speed adjusting)
• Abrasive wheel speed: 2800rpm
• Abrasive wheel size: Dia250xthickness80mm,hole32mm
• Wheel motor: 4kw * 10pieces
• Feeding motor: 1.5kw
• Air blower motor: 2.2kw * 3pieces
• Total power: 48kw
• Consumption: 96A
• Voltage 3-phase customized
• Standard with 1 set grinding wheel
• Gross weight: 2500kgs
• Dimension: 6050x1100x1200 (wooden case size)

Hangzhou wise machinery co., ltd. offers a complete line of finishing equipment for tube and pipe processing. Designed to limit your downtime and minimize material waste, our equipment is customized to fit your specifications and integrate seamlessly within your production line. We prioritize operator safety and efficiency by offering both manual and automatic pipe tube feeding solutions. Contact us to find the full finishing system or single machine to fit your needs.
