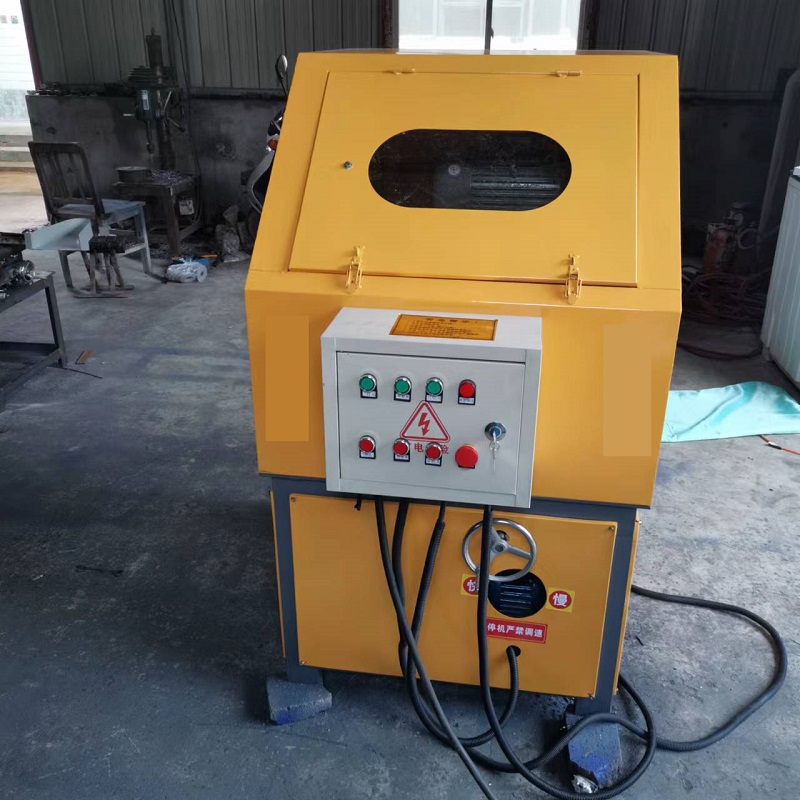

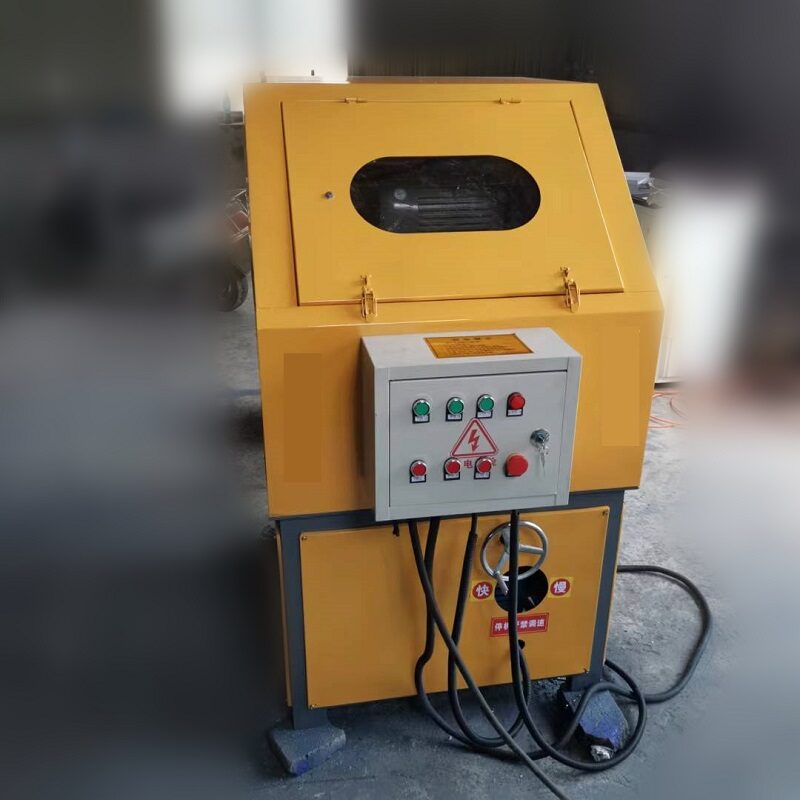

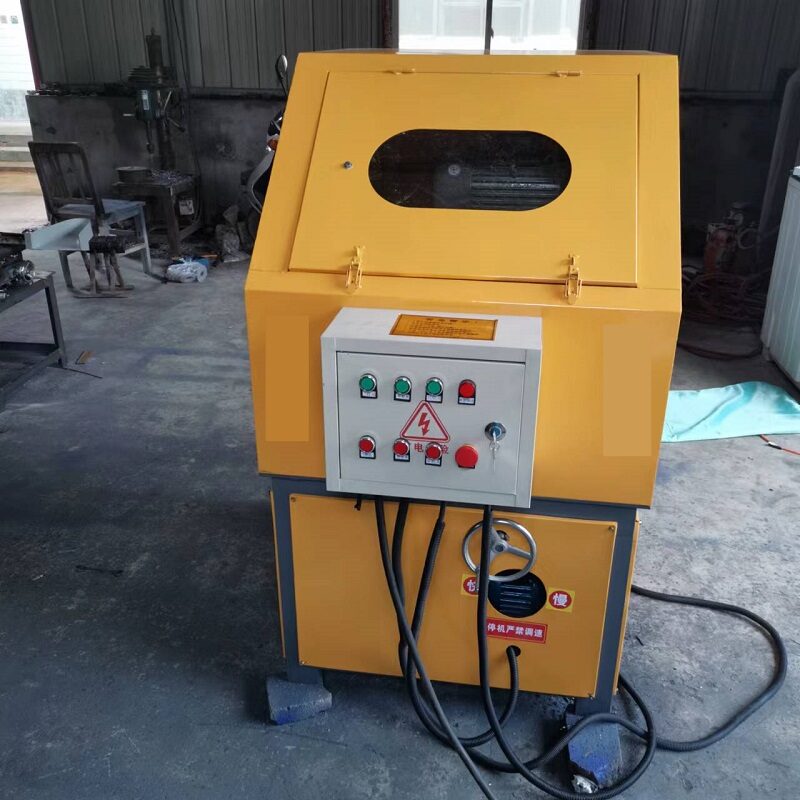

350mm Diameter pipe surface grinding machine pipe polisher
- Technical Details
- 350mm Diameter pipe surface grinding machine pipe polisher
- no: WSPR-1-350
- Working capacity (min.and max.diameter):30-350mm
- Working capacity (min.and max.pipe length):300mm to any
- Station no.:1
- Feeding speed:1-12m/min(adjustable, stepless speed adjusting)
- Abrasive wheel speed:2800rpm
- Abrasive wheel size:Dia250xthickness80mm,hole32mm
- Wheel motor:4kw
- Feeding motor:0.75kw
- Air blower motor:1kw
- Total power:85kw
- Voltage:single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:350kgs
- Dimension:900x1000x1650(H) (wooden case size)
350mm Diameter pipe surface grinding machine pipe polisher is designed for polishing metal pipes especially big diameter steel pipes, the maximum working capacity is up to 350mm diameter.
PRODUCTION SPECIFICATION
- 350mm Diameter pipe surface grinding machine pipe polisher
- no: WSPR-1-350
- Working capacity (min.and max.diameter):30-350mm
- Working capacity (min.and max.pipe length):300mm to any
- Station no.:1
- Feeding speed:1-12m/min(adjustable, stepless speed adjusting)
- Abrasive wheel speed:2800rpm
- Abrasive wheel size:Dia250xthickness80mm,hole32mm
- Wheel motor:4kw
- Feeding motor:0.75kw
- Air blower motor:1kw
- Total power:85kw
- Voltage:single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:350kgs
- Dimension:900x1000x1650(H) (wooden case size)
| Content | Data | Content | Data | ||||
| Working capacity | 30-350mm | Wheel motor | 4kw | ||||
| Working capacity | Length 300mm-any | Feeding motor | 0.75kw | ||||
| Station no. | Single Station | Voltage | single-phase / 3-phase | ||||
| Feeding speed | 1-12m/min(adjustable) | Gross weight | 350kgs | ||||
| Abrasive wheel speed | 2800rpm | Dimension | 900*1000*1650mm |
APPLICATION
Pipe polishing machine are widely used in below applications.
- Mirror effect for stainless steel pipe
- Steel pipe mirror polishing
- Aluminumpipe hairline effect
- Copper tube mirror finish polishing
- Plastic pipe burrs removing
- Glass fiber pipe
FAQ
- Is this pipe polishing machine working for both round pipe and round bolt?
- Yes, it works for both of them.
- What kind of grinding wheel do we use on our machine?
- We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.
- What is the life span of the abrasive wheel?
- 3500meters pipe polishing each.
- What is the assembly size of the abrasive wheel?
- Diameter 250mm, width 40x2mm, Inner hole diameter 32mm.
- Is the tube polishing machine fully automatic?
- We have both manual feeding and automatic feeding.
- Do you have machine in stock?
- Yes, we have ready stock for regular machines, but if your voltage are different from what in China we will need 7-10days to customize motor for you.
- What accessories are included in machine?

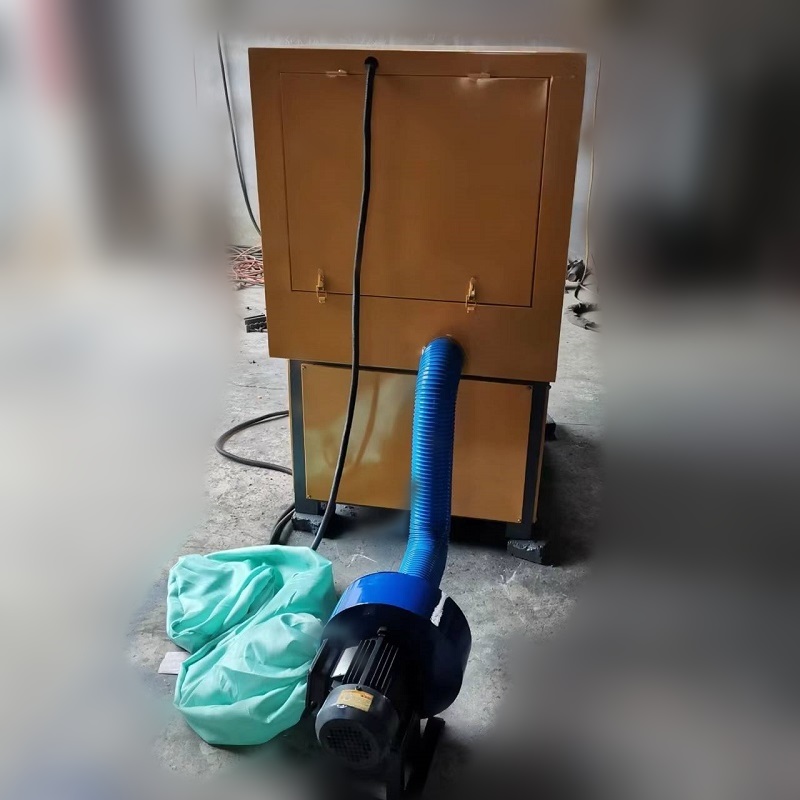

- One set free abrasive wheel and air blower, dust collector
- How is the packaging?
- We use wrapping film and wooden crate to pack each machine.
