3mm stainless steel pipe polishing machine
- Technical Detail
- 3mm stainless steel pipe polishing machine
- Model:WSPR-1-100
- Working capacity (min.and max.diameter):2-100mm
- Working capacity (min.and max.pipe length):1-3000mm
- Station no.:1
- Feeding speed: 1-6m/min(adjustable, stepless speed adjusting)
- Abrasive wheel speed: 2800rpm
- Abrasive wheel size:Dia250xthickness80mm,hole32mm
- Wheel motor:4kw
- Feeding motor: 0.4kw
- Total power: 4.4kw
- Consumption:9A
- Voltage:single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:200kgs
- Dimension:950x950x1100mm (wooden case size)

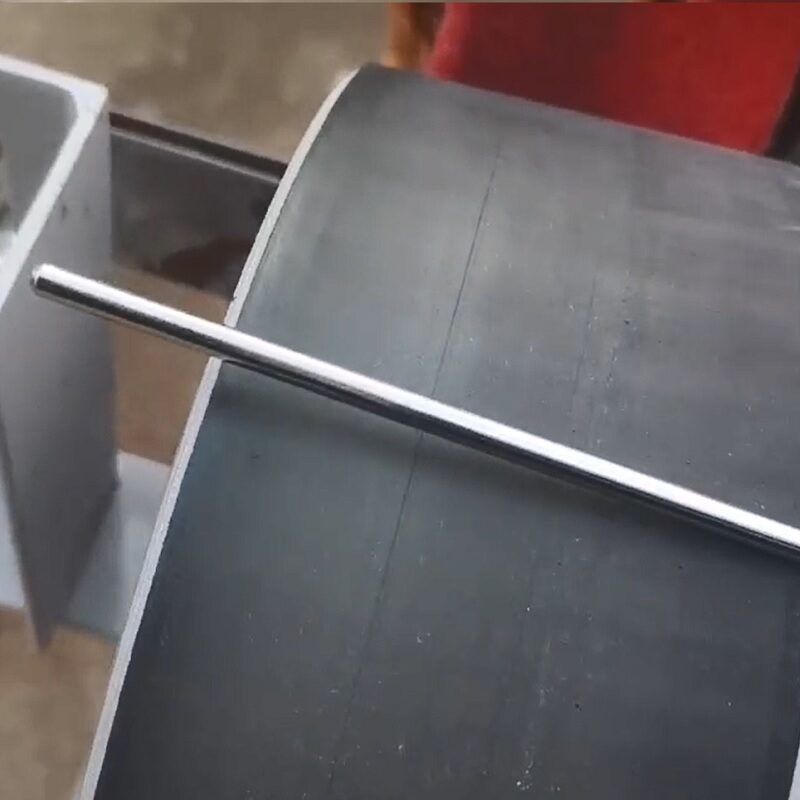

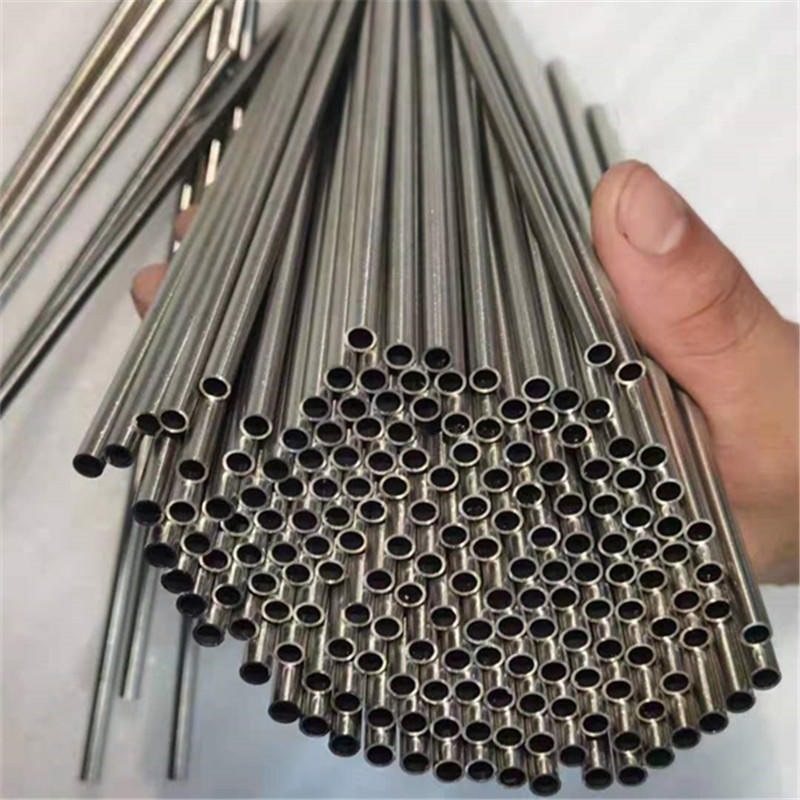

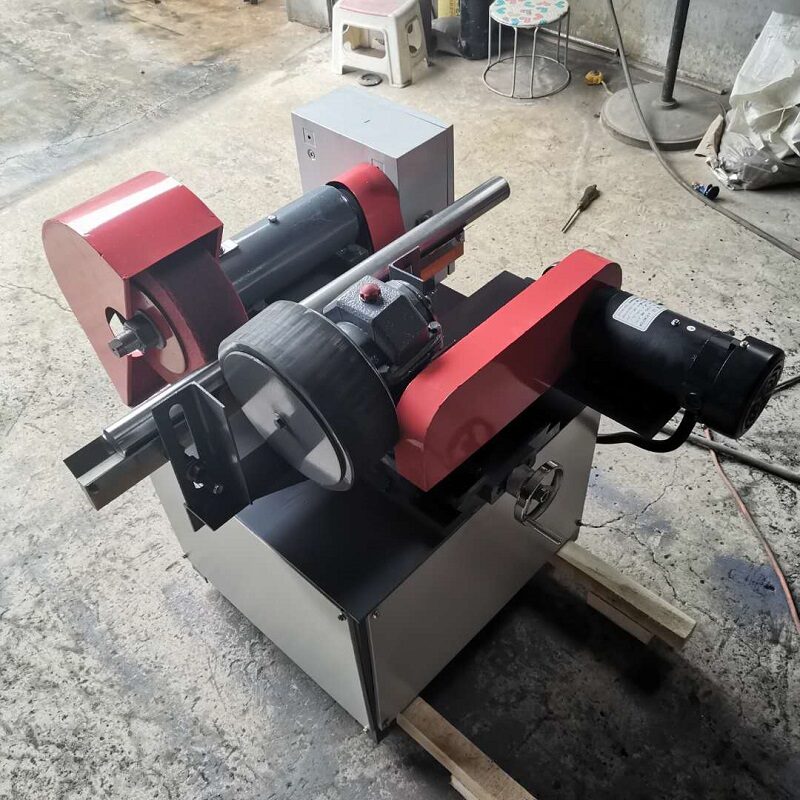

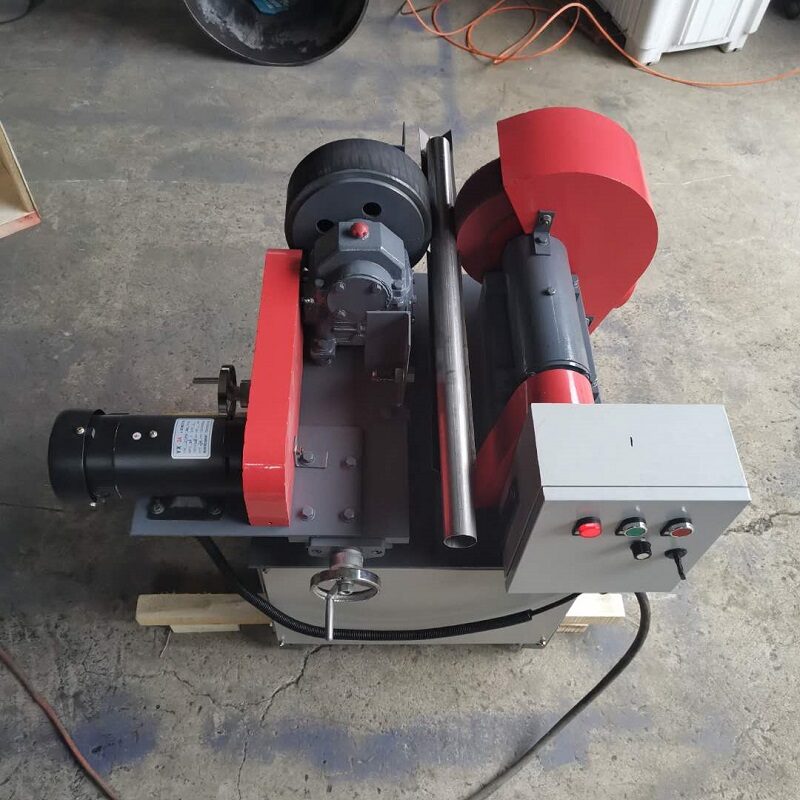

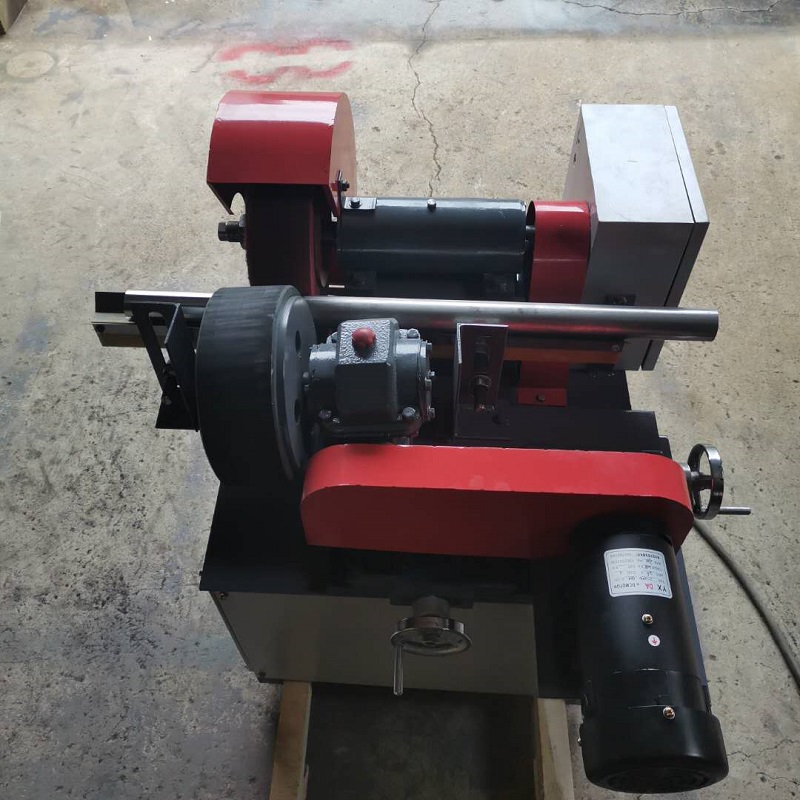

3mm stainless steel pipe polishing machine WSPR-1-100 is for slender small diameter tube polishing. The minimum diameter can be 2mm, 3mm or 4mm. Capillary stainless steel tube is for automation instrument.
PRODUCT SPECIFICATION
- 3mm stainless steel pipe polishing machine
- Model:WSPR-1-100
- Working capacity (min.and max.diameter):2-100mm
- Working capacity (min.and max.pipe length):1-3000mm
- Station no.:1
- Feeding speed: 1-6m/min(adjustable, stepless speed adjusting)
- Abrasive wheel speed: 2800rpm
- Abrasive wheel size:Dia250xthickness80mm,hole32mm
- Wheel motor:4kw
- Feeding motor:0.4kw
- Total power:4.4kw
- Consumption:9A
- Voltage:single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:200kgs
- Dimension:950x950x1100mm (wooden case size)
| Content | Data | Content | Data | ||||
| Working capacity | 2-100mm diameter | Wheel motor | 4kw | ||||
| Working capacity | Length 1mm-3000mm | Feeding motor | 0.4kw | ||||
| Station no. | One Station | Voltage | single-phase / 3-phase | ||||
| Feeding speed | 1-6m/min(adjustable) | Gross weight | 200kgs | ||||
| Abrasive wheel speed | 2800rpm | Dimension | 950*950*1100mm |
APPLICATION
3mm ss tube polishing machine are widely used in below applications.
- Small diameter tube polishing
- Fine tube polishing
- Slender stainless steel tube polishing
- Small diameter tube polishing
FAQ
- Is this stick polishing machine working for both pipe and solid rod?
- Yes, it works for both of them.
- What is the main function of stainless steel tubepolishing machine?
- Round ss tubepolishing machine is used for polishing the surface of stainless steel round, square and rectangle pipe. The pipe is automatically feed in the machine. After passing through the polishing heads the pipe comes out automatically on inspection table.
- What kind of grinding wheel do we use on our machine?
- We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.
- What is the life span of the abrasive wheel?
- 3500meters rodpolishing each.
- Do you have machine in stock?
- Yes, we have ready stock for regular machines, but if your voltage are different from what in China we will need 7-10days to customize motor for you.
