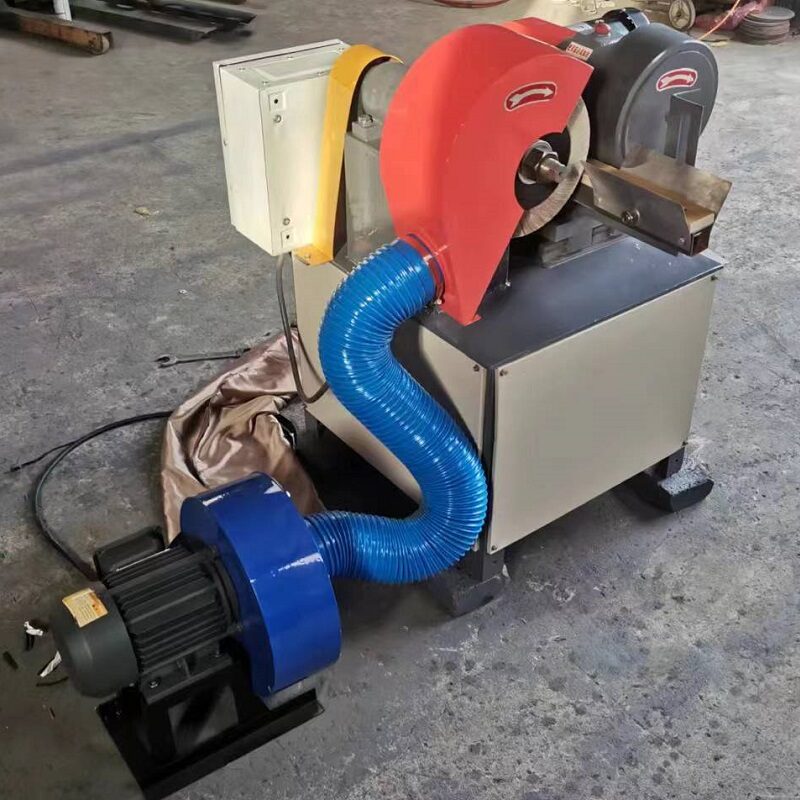

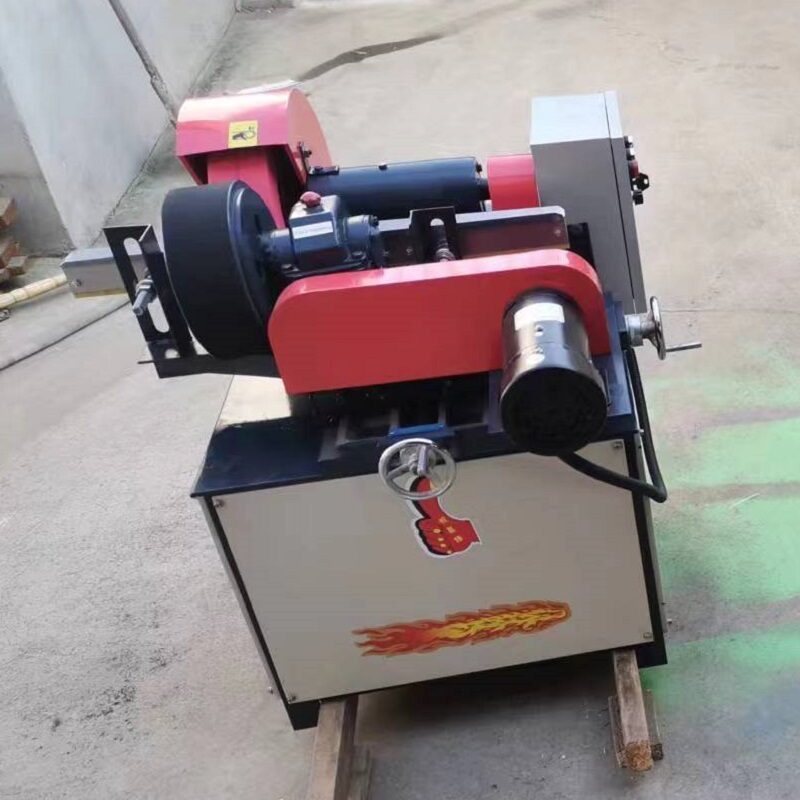

4mm Stainless Steel Tube Polishing Machine

Polishing is a process in which rough and coarse surfaces become smooth and shiny, and this process is done through our 4mm Stainless Steel Tube Polishing Machine.

This machine can be used for polishing small diameter tube or steel rod.

PRODUCT SPECIFICATION

• Model:WSPR-1-100
• Working capacity (min.and max.diameter):3-100mm
• Working capacity (min.and max.pipe length):1-3000mm
• Station no.:1
• Feeding speed: 1-6m/min(adjustable, stepless speed adjusting)
• Abrasive wheel speed: 2800rpm
• Abrasive wheel size:Dia250xthickness80mm,hole32mm
• Wheel motor:4kw
• Feeding motor:4kw
• Total power:4kw
• Consumption:9A
• Voltage:single-phase / 3-phase customized
• Standard with 1 set grinding wheel
• Gross weight:200kgs
• Dimension:950x950x1100mm (wooden case size)

APPLICATION

Pipe polishing machine are widely used in below applications.

• Hardware accessories and metal partspolishing
• Aluminumpipe hairline effect
• Mirror effect for stainless steel pipe
• Natural gas pipe line derusting
• Exhaust pipe
• Plastic pipe burrs removing
• Smooth surface of wooden stick
• Glass fiber pipe
• Flexible pipe
• Special item such as battery and electric heating pipe
• Copper product workshop
• Road fire hydrant

FAQ

• Is this pipe polishing machine working for both pipe and solid rod?

Yes, it works for both of them.

• What is the difference between single-station machine and multi-station polishing machine?

Single-head machine means there is only single one polishing wheel while for multi-head machine there is several working position with different material of polishing

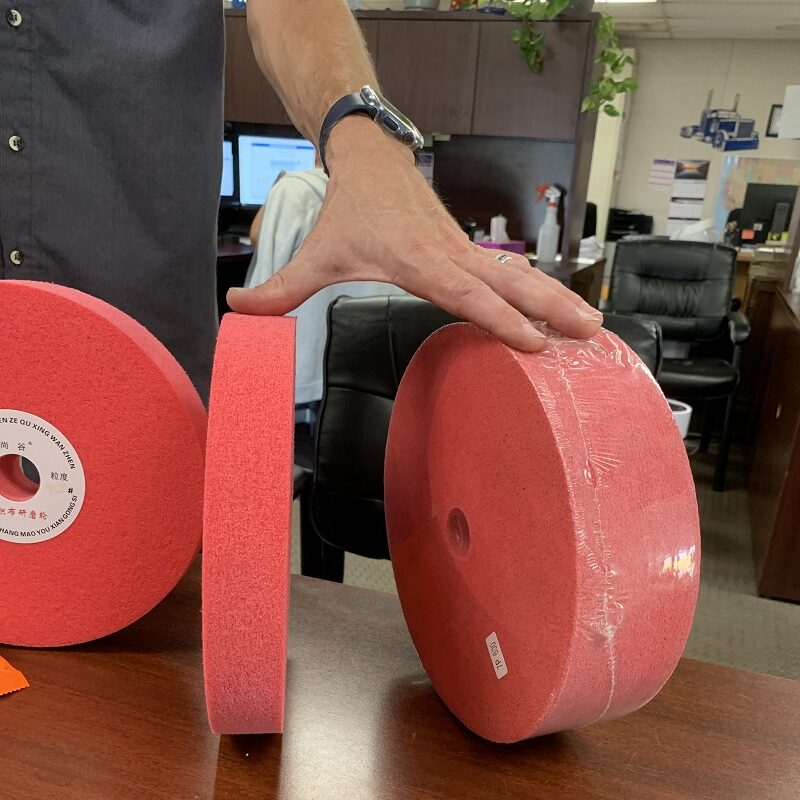

• What kind of grinding wheel do we use on our machine?

We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.

• What is the life span of the abrasive wheel?

Approx. 3500meters pipe polishing each.

• What is the assembly size of the abrasive wheel?

Diameter 250mm, width 40x2mm, Inner hole diameter 32mm.

• Is the tube polishing machine fully automatic?

We have both manual feeding and automatic feeding.

• Do you have machine in stock?

Yes, we have ready stock for regular machines, but if your voltage are different from what in China we will need 7-10days to customize motor for you.

• What accessories are included in machine?

One set free abrasive wheel and dust collector(depending on models)

• Can we add pipe stands to the manual feeding polishing machine?

Yes.

• How is the packaging?

We use wrapping film and wooden crate to pack each machine.
