8mm Tube pits removing polishing machine
- Technical Data
- 8mm Tube pits removing polishing machine
- Model: WSPR-1-100
- Capacity of diameter:2-100mm
- Station number:one
- Feeding speed:0-6m/min(adjustable)
- Abrasive wheel speed:1400rpm
- Abrasive wheel size:dia250 x thickness80mm, hole32mm
- Wheel motor:4kw
- Feeding motor:4kw
- Total power:4.4kw
- Voltage:single phase / three phase
- Standard with 1 set polishingwheel
- Gross weight:200kgs
- Dimension:950x950x1100mm (wooden crate size)

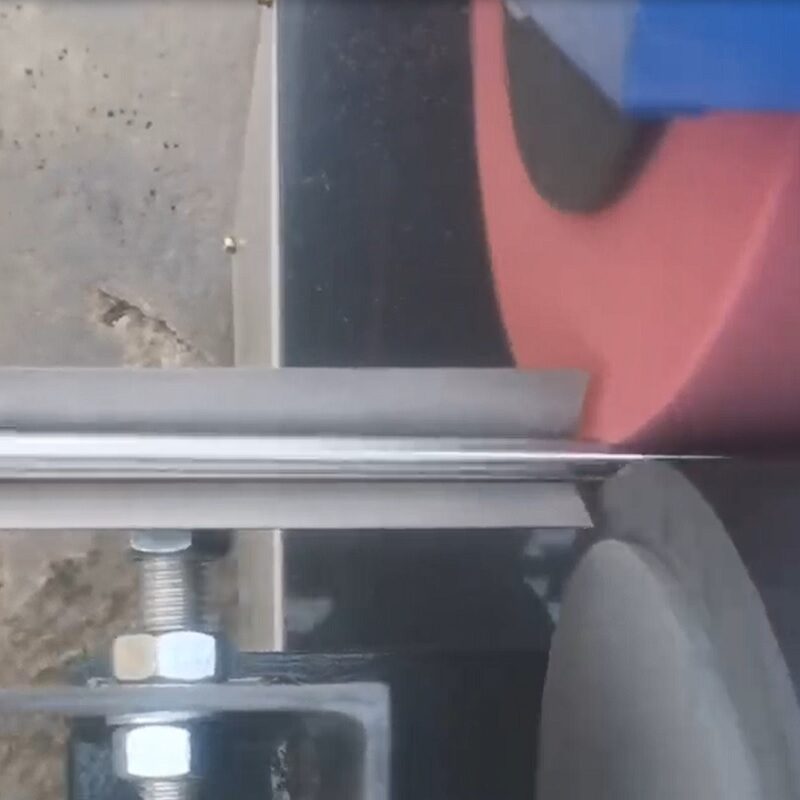

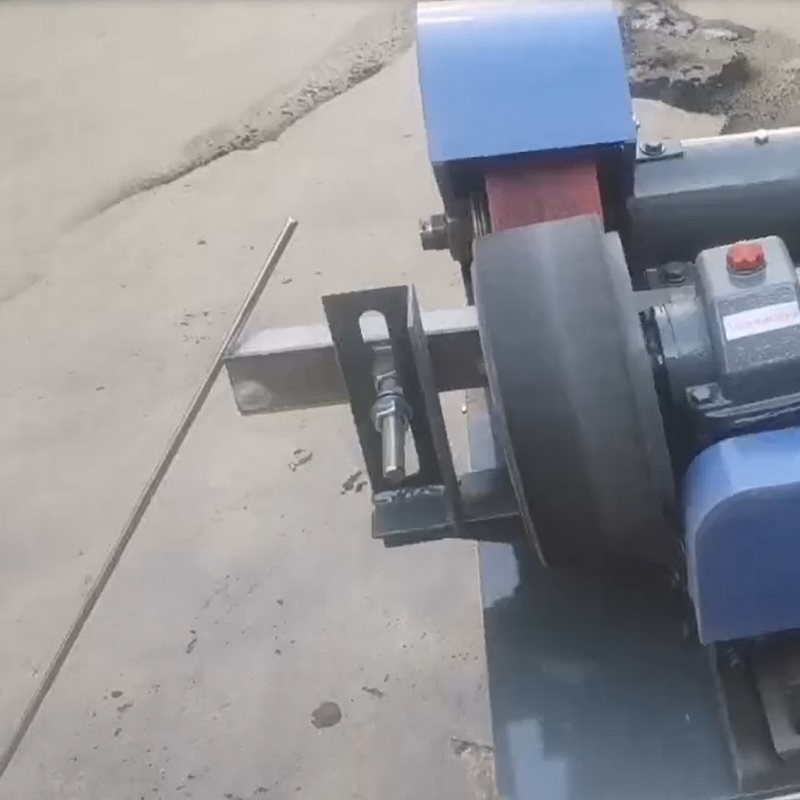

8mm Tube pits removing polishing machine can be used for round metal tube and pipe polishing, worker will have to feed the tubing manually into the machine head, there is a polishing wheel driven by the main motor which will polish the tubes automatically and then push it to the outlet. By using different material and grit polishing wheels and choosing a proper speed you can have various finish on the surface of your steel tube.
| Content | Data | Content | Data | ||||
| Working capacity | 2-100mm diameter | Wheel motor | 4kw | ||||
| Working capacity | Length 1mm-3000mm | Feeding motor | 0.4kw | ||||
| Station no. | One Station | Voltage | single-phase / 3-phase | ||||
| Feeding speed | 0-6m/min(adjustable) | Gross weight | 200kgs | ||||
| Abrasive wheel speed | 1400rpm | Dimension | 950*950*1100mm |
APPLICATION
Polishing machine are generally used for below applications.
- Steel tube rust removal
- Metallic tube coating removing
- Satin finishing polishing
- Metal tube polishing before powder coating
- Tubes polishing before painting
- Tubing diameter reducing sanding
- Stainless steel tube polishing for mirror finish
- Aluminum tube brushed effect grinding
- Pipe hair line finish polishing
- Copper tube buffing bright and shiny surface
DIFFERENT FINISH
- Grinding finish: Usually use 60#-80# grit abrasive belt or flap wheels.
- Brushed finish: Usually use 120#-180# grit abrasive belt or flap wheels.
- Sanitary finish: Usually use 180#-240# grit abrasive belt or flap wheels.
- Polished finish: Usually use 240#-320# grit abrasive belt or flap wheels, then use sisal wheel.
- Glossy finish: Usually use 400#-600# grit abrasive belt or flap wheels, sisal wheel, common cloth wheel.
- Mirror finish: Usually use 600#-800# grit abrasive belt,then use sisal wheel,hard cloth wheel,at last step use cotton wheels to get 100% 8K Mirror finishing.
Hangzhou Wise Machinery Co., Ltd. offers a complete line of finishing equipment for metal tube and pipe processing. Designed to limit your downtime and minimize material waste, our equipment is customized to fit your specifications and integrate seamlessly within your production line. We prioritize operator safety and efficiency by offering both manual and automatic tube feeding solutions. Contact us to find the full finishing system or single machine to fit your needs.
