Aluminum coating steel pipe polishing machine
- Technical Details
- Aluminum coating steel pipe polishing machine
- Model:WSPR-1-100
- Working capacity (min.and max.diameter):3-100mm
- Working capacity (min.and max.pipe length):1-3000mm
- Station no.:1
- Feeding speed: 1-6m/min(adjustable, stepless speed adjusting)
- Abrasive wheel speed: 2800rpm
- Abrasive wheel size:Dia250xthickness80mm,hole32mm
- Wheel motor:4kw
- Feeding motor:0.4kw
- Total power:4.4kw
- Consumption:9A
- Voltage:single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:200kgs
- Dimension:950x950x1100mm (wooden case size)

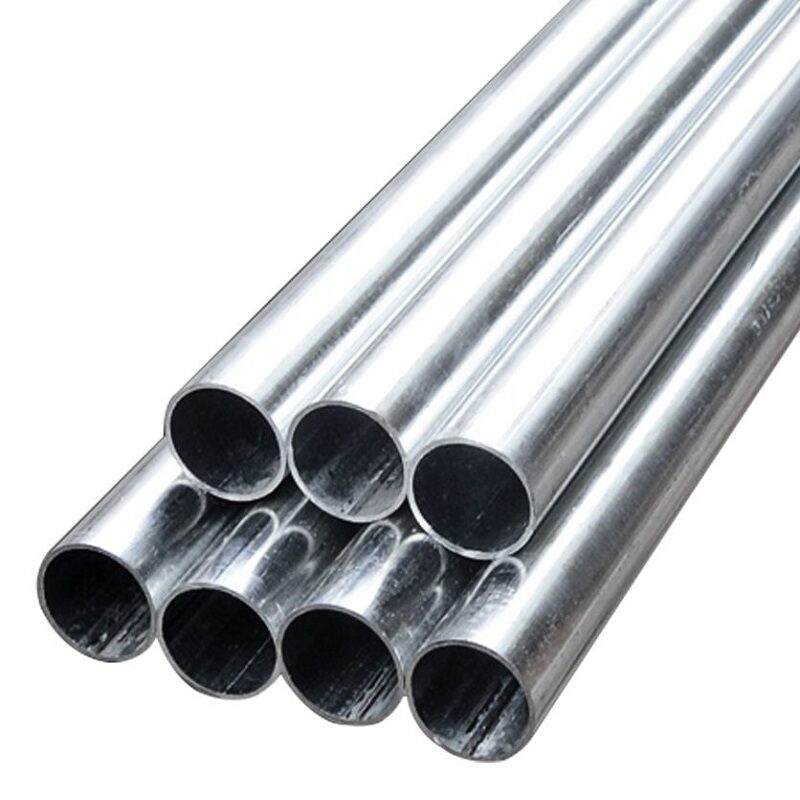

Aluminum coating steel pipe polishing machine is specially for polishing aluminum coating iron pipe. Aluminum coating steel pipe are widely used in HVAC system, cooling system and car braking system and oil pipe line because aluminum coating is wear-resisting and anti-corrosive.
PRODUCT SPECIFICATION
- Aluminum coating steel pipe polishing machine
- Model:WSPR-1-100
- Working capacity (min.and max.diameter):3-100mm
- Working capacity (min.and max.pipe length):1-3000mm
- Station no.:1
- Feeding speed: 1-6m/min(adjustable, stepless speed adjusting)
- Abrasive wheel speed: 2800rpm
- Abrasive wheel size:Dia250xthickness80mm,hole32mm
- Wheel motor:4kw
- Feeding motor:0.4kw
- Total power:4.4kw
- Consumption:9A
- Voltage:single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:200kgs
- Dimension:950x950x1100mm (wooden case size)
| Content | Data | Content | Data | ||||
| Working capacity | 2-100mm diameter | Wheel motor | 4kw | ||||
| Working capacity | Length 1mm-3000mm | Feeding motor | 0.4kw | ||||
| Station no. | One Station | Voltage | single-phase / 3-phase | ||||
| Feeding speed | 1-6m/min(adjustable) | Gross weight | 200kgs | ||||
| Abrasive wheel speed | 2800rpm | Dimension | 950*950*1100mm |
FAQ
- Who are we?
- We are professional pipe polishing machine company located in Xingtai city of China, we are close to Port Tianjin and Port Qingdao. We mainly sell to North America, Europe and the Middle East countries.
- What kind of grinding wheel do we use on our machine?
- We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.
- What is the life span of the abrasive wheel?
- 3500meters pipe polishing each.
- Is the tube polishing machine fully automatic?
- We have both manual feeding and automatic feeding.
- Do you have machine in stock?
- Yes, we have ready stock for regular machines, but if your voltage are different from what in China we will need 7-10days to customize motor for you.
- What accessories are included in machine?
- One set free abrasive wheel and air blower, dust collector
- How to place order?
- We accept T/T payment directly to our company account and we can also accept payment through Paypal and westernunion. We can ship by sea to sea port nearest to your city or ship to door. We do not have MOQ for our machines, we can ship any quantity.
