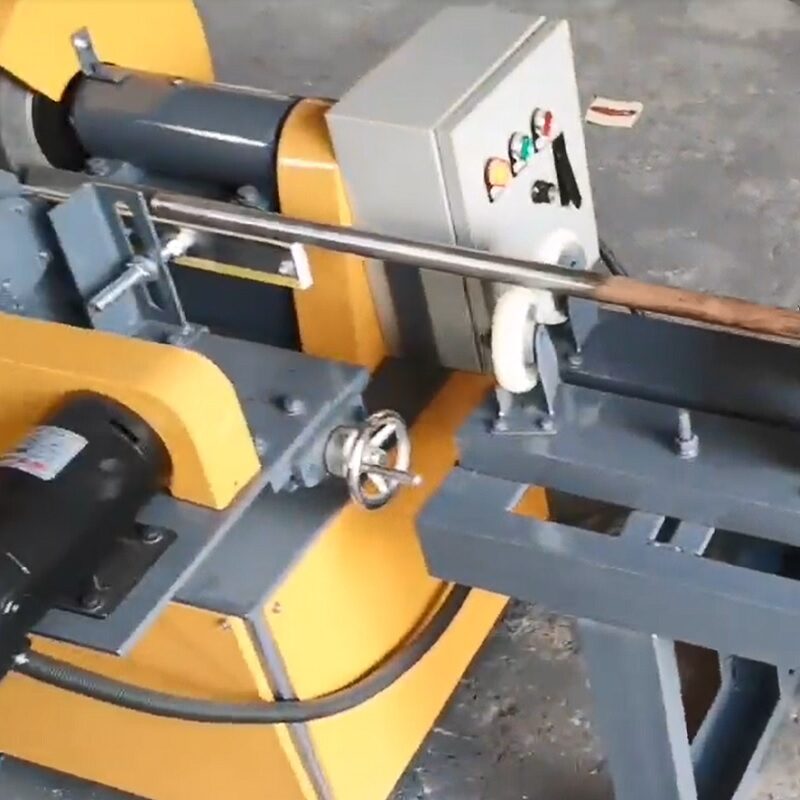

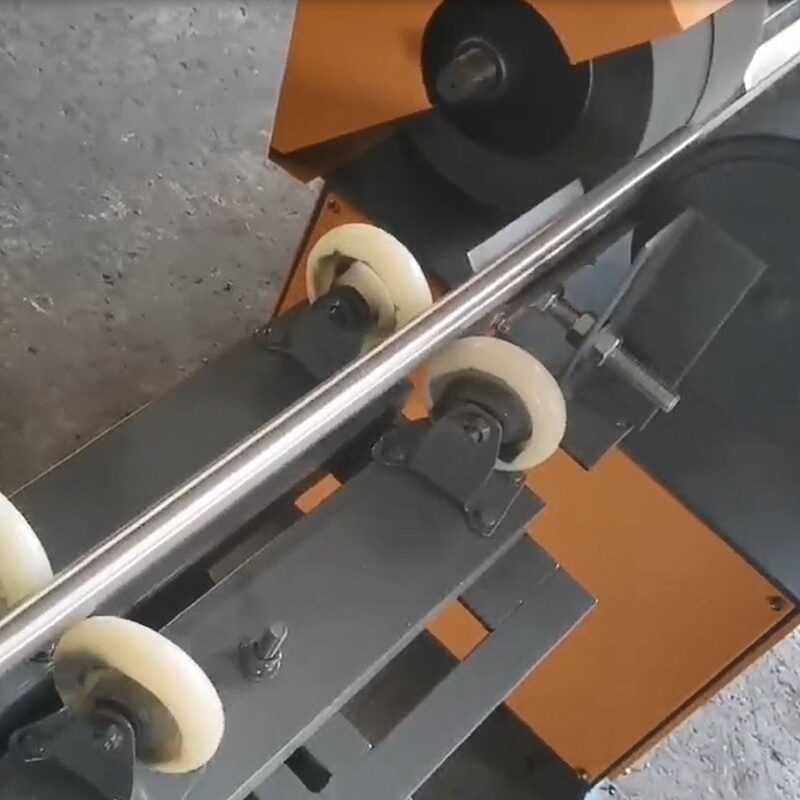

Automatic feeding wide abrasive wheel polishing machine
- Technical Data
- Automatic feeding wide abrasive wheel polishing machine
- Model:WSPR-1-100L
- Capacity of diameter:3-100mm
- Capacityof length: 1-3000mm
- Station number.:one
- Feeding speed: 1-6m/min(adjustable)
- Abrasive wheel speed: 2800rpm
- Abrasive wheel size:dia250 x thickness80mm, hole32mm
- Wheel motor:4kw
- Feeding motor:4kw
- Total power:4.4kw
- Voltage:single phase / three phase
- Standard with 1 set polishingwheel
- Gross weight:220kgs
- Dimension:950x950x1100mm (wooden crate size)

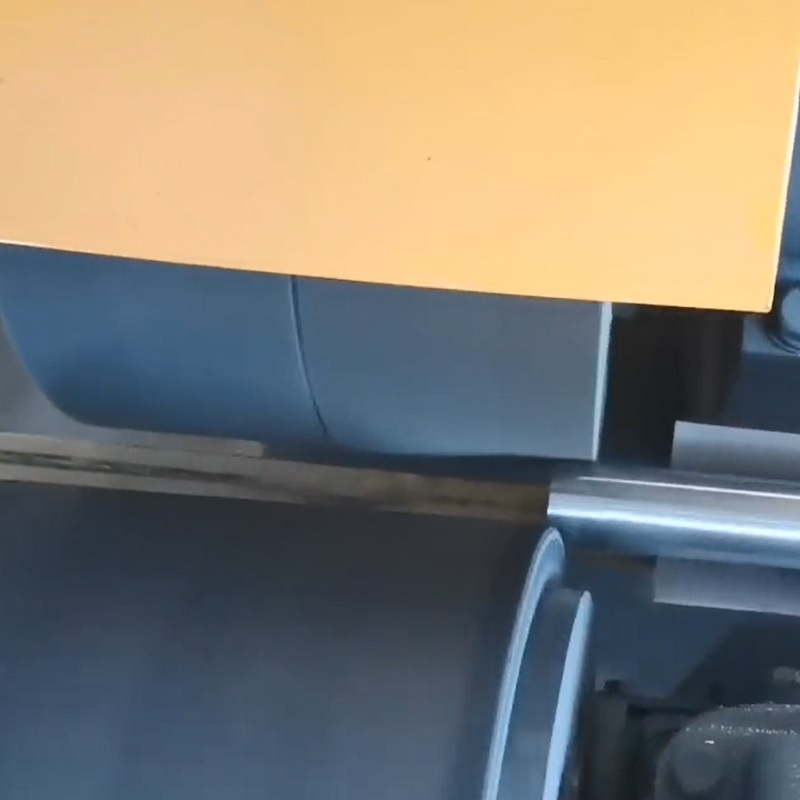

Automatic feeding wide abrasive wheel polishing machine is a tube polishing machine with wide version polishing wheel. With this, a single head tube polishing machine can have the steel tube more polished, thus the cost can be lower than purchasing a double-head polishing machine.
| Content | Data | Content | Data | ||||
| Working capacity | Diameter 3-100mm | Wheel motor | 4kw | ||||
| Working capacity | Length 1mm-3000mm | Feeding motor | 0.4kw | ||||
| Station no. | 1 Station | Voltage | single-phase / 3-phase | ||||
| Feeding speed | 1-6m/min(adjustable) | Gross weight | 220kgs | ||||
| Abrasive wheel speed | 2800rpm | Dimension | 950*950*1100mm |
PRODUCT APPLICATION
- Surface quality improvement: The main function of the polishing machine is to improve the surface quality of the material to make it smoother and glossier.
- Automated operation: Polishing machines are usually automatic equipment that can perform polishing operations efficiently and reduce the need for man operations.
- Abrasive tools: Polishing machines use different types of abrasive tools, such as grinding discs, grinding wheels, abrasive belts, etc., to meet different polishing needs.
- Adjustability: These machines usually have adjustable parameters to enable the operator to control the depth and speed of polishing to suit different materials and requirements.
- Wide application: The polishing machine can be used on a variety of materials, for example the metal, plastic, ceramics, wood, stone, etc., and is suitable for many industries.
- High efficiency: WIth the polishing machine you can get the polishing work done quickly which improves production efficiency, and reduce production costs.
