Flexible fire sprinkler hose polishing machine

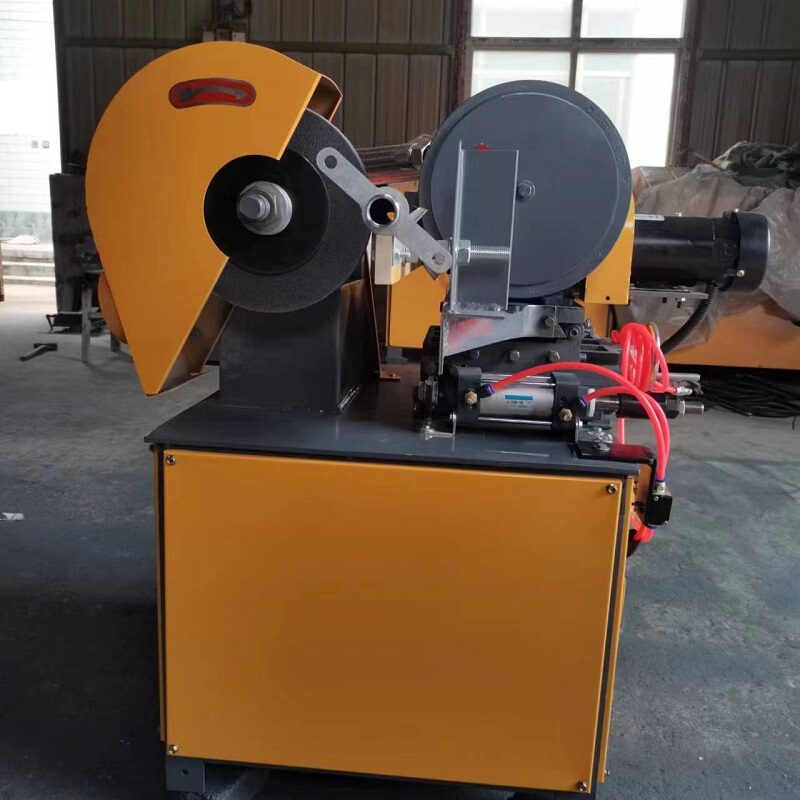

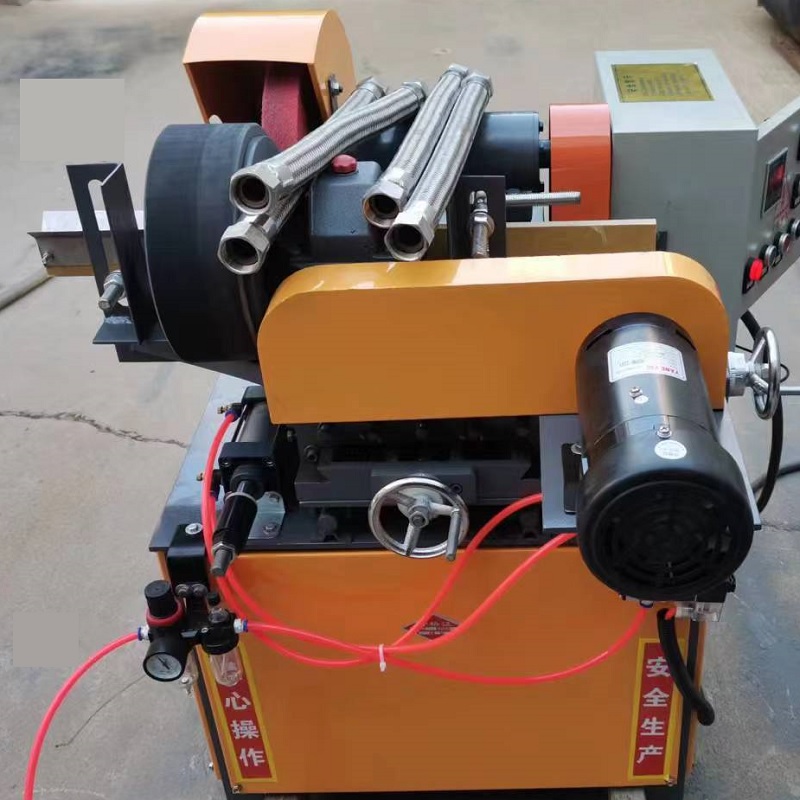

Flexible fire sprinkler hose polishing machine is a pneumatic pipe polishing machine, by using footpedal it can control the distance between abrasive wheel and guide rubber wheel during polishing process, which makes it possible to polish a certain position of your pipe and hose.

PRODUCT SPECIFICATION

• Flexible fire sprinkler hose polishing machine
• Model: WSPR-1-100P
• Working capacity (min.and max.diameter) : 3-100mm
• Working capacity (min.and max.pipe length): 1-3000mm
• Station no.: 1
• Feeding speed: 1-6m/min(adjustable, stepless speed adjusting)
• Abrasive wheel speed: 2800rpm
• Abrasive wheel size: Dia250xthickness80mm,hole32mm
• Wheel motor: 4kw
• Feeding motor: 0.4kw
• Total power: 4.4kw
• Consumption: 9A
• Voltage: single-phase / 3-phase customized
• Standard with 1 set grinding wheel
• Gross weight: 220kgs
• Dimension: 950x950x1100 (wooden case size)

APPLICATION

• Fire sprinkler hose polishing
• Flexible hose polishing
• Flexible pipe polishing
• Flexible tube polishing
• Metal soft hose polishing
• Corrugated pipe polishing
• Food grade corrugated pipe polishing
• Firefighting pipe polishing

FAQ

• Is this pipe polishing machine working for both round hoseand round rods?
• Yes, it works for both of them.

• What kind of grinding wheel do we use on our machine?

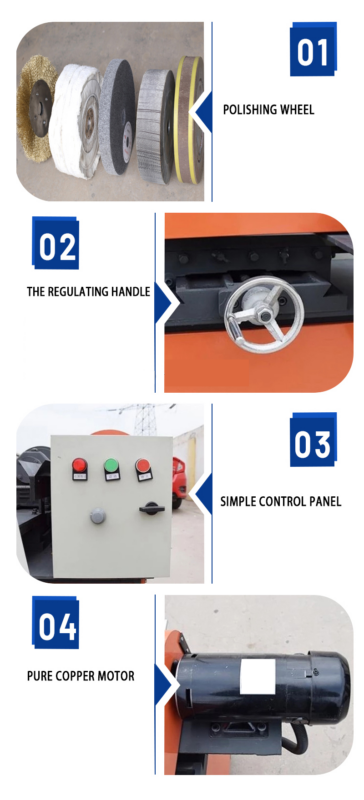

• We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.

• What is the life span of the abrasive wheel?
• 3500meters pipe polishing each.

• What is the assembly size of the abrasive wheel?
• Diameter 250mm, width 40x2mm, Inner hole diameter 32mm.

• Is thepneumatic sprinkler tube polishing machine requiring an air compressor?
• Yes.

• Do you have machine in stock?
• Yes, we have ready stock for regular machines, but if your voltage are different from what in China we will need 7-10days to customize motor for you.

• What accessories are included in machine?
• One set free polishwheel

• How is the packaging?
• We use wrapping film and wooden crate to pack each machine.

• How we guarantee the quality?
• We will test at least one pipes on every polishing machine before shipping out.Some of our heavy duty models of tube polishing machine works well after even 8 years according to our client feedback, for all of our machine we offer one year warranty.
