Inner Pipe Polishing Machine
- Technical Details
- Inner PipePolishing Machine
- Model no.: WSPI-1-100
- Working capacity (min.and max. Inner diameter): 25-100mm
- Working capacity (maximum pipe length): 1800mm
- Main motor: 4kw * 1piece
- Feeding motor: 0.75kw
- Polishing head moving motor: 0.4kw (with reducer, speed can be adjusted)
- Voltage: 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight: 1500kgs
- Dimension: 4600x700x1500
Inner Pipe Polishing Machine is for grinding and polishing the inner wall of a steel tube and stainless steel pipe. The small polishing wheel will go into the inner side of a metal tube and polish the inner surface. The machine have feeding unit that can feed the pipe automatically to polish the entire tube. This machine is for inner tube polishing within 100mm diameter, there is also polishing machine to polishing pipe outer side and inner side together in one time, but the diameter must be more than 100mm.
PRODUCT SPECIFICATION
- Technical Details
- Inner PipePolishing Machine
- Model no.: WSPI-1-100
- Working capacity (min.and max. Inner diameter): 25-100mm
- Working capacity (maximum pipe length): 1800mm
- Main motor: 4kw * 1piece
- Feeding motor: 0.75kw
- Polishing head moving motor: 0.4kw (with reducer, speed can be adjusted)
- Voltage: 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight: 1500kgs
- Dimension: 4600x700x1500

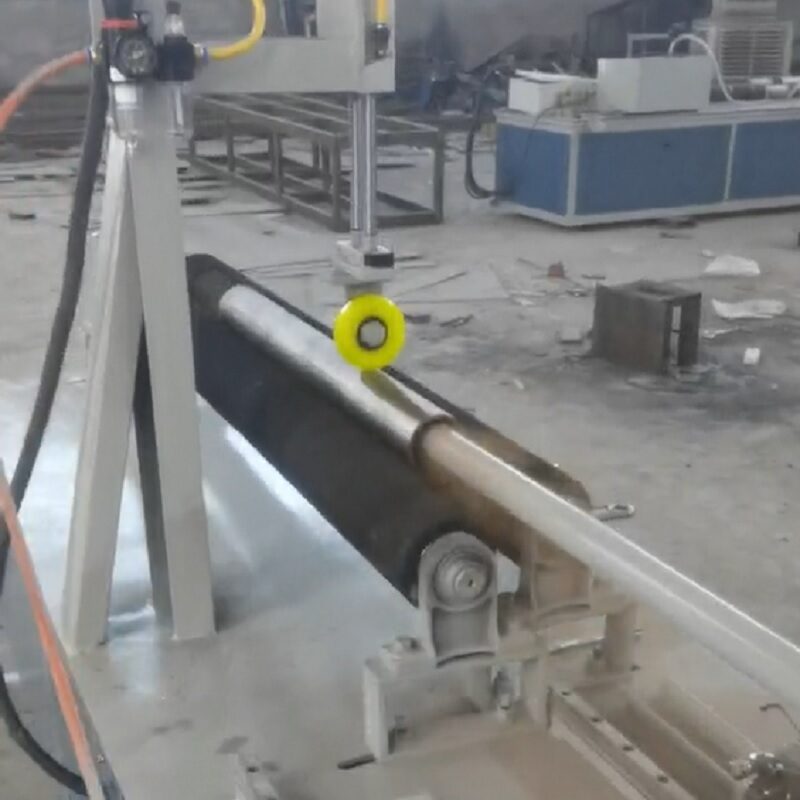

PICTURES
