Nylon wheel and brush wheel pipe polishing machine
- Technical Data
- Nylon wheel and brush wheel pipe polishing machine
- Model: WSPR-3-160
- Capacity of diameter:8-160mm
- Capacity oflength: 500mm to any
- Station number: Three
- Feeding speed: 1-6m/min(adjustable)
- Abrasive wheel speed:2800rpm
- Abrasive wheel size:Dia250 x thickness80mm, hole32mm
- Wheel motor:4kw x 3pieces
- Feeding motor:75kw
- Air blower motor:2kw
- Total power:15kw
- Voltage:three phase
- Standard with 1 set polishing wheel
- Gross weight:750kgs
- Dimension:1850x1100x1200mm (wooden crate size)

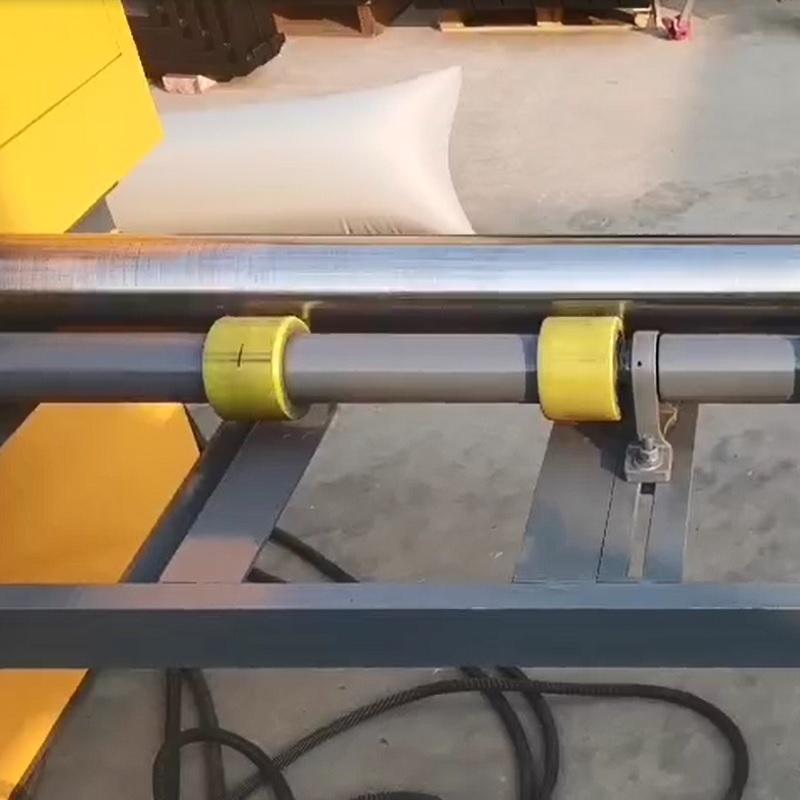

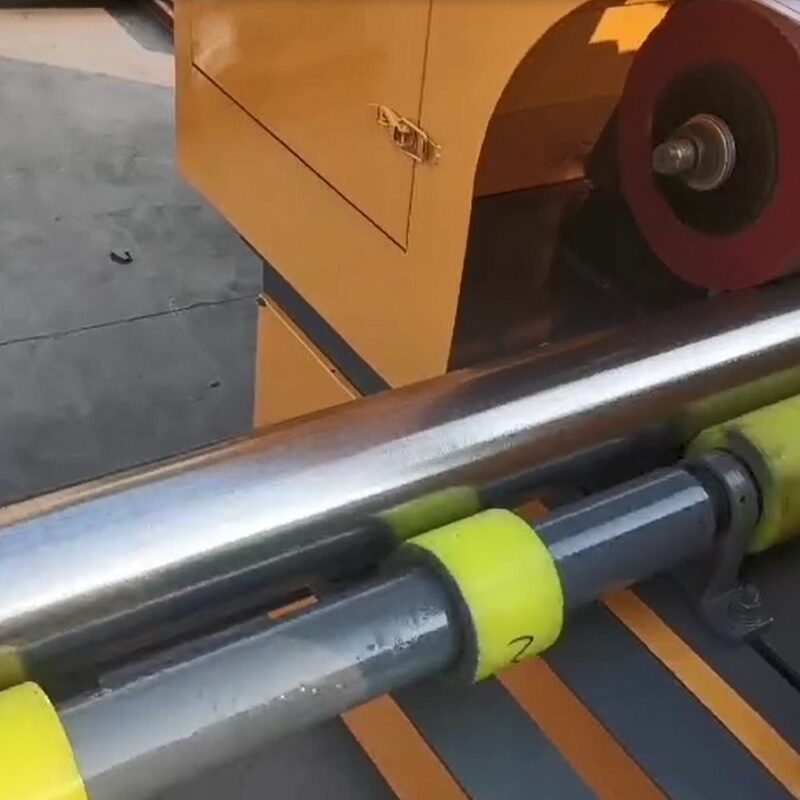

Nylon wheel and brush wheel pipe polishing machine have two working position (polishing head) on it which makes it possible to polish one pipe twice in one time. We can put different material of grinding wheels in each working position so that we can get the right surface finish we want.
APPLICATION
Nylon wheel and brush wheel pipe polishing machine are widely used in brushed effect hairline aluminum profile, exhaust tube, plastic tube burrs removing, smooth surface of wooden stick, natural gas tube line derusting, hardware accessories and metal parts, glass fiber tube, stainless steel tubes hairline drawing effect, stainless steel tube scratch removing, mirror effect for stainless steel tube, medical use tube mirror grade surface grinding, kitchen and toilet item silk effect, flexible tube, gas tank rust removal, special item such as battery and electric heating pipe.
| Content | Data | Content | Data | ||||
| Working capacity | 8-160mm diameter | Wheel motor | 4kwx3pcs | ||||
| Working capacity | Length 500mm-Any | Feeding motor | 0.75kw | ||||
| Station no. | Three Station | Voltage | single-phase / 3-phase | ||||
| Feeding speed | 1-6m/min(adjustable) | Gross weight | 750kgs | ||||
| Abrasive wheel speed | 2800rpm | Dimension | 1850*1100*1200mm |
