Pipe Polishing Machine
- Technical Details
- Model:WSPR-1-100
- Working capacity (min.and max.diameter):3-100mm
- Working capacity (min.and max.pipe length):1-3000mm
- Station no.:1
- Feeding speed: 1-6m/min(adjustable, stepless speed adjusting)
- Abrasive wheel speed: 2800rpm
- Abrasive wheel size:Dia250xthickness80mm,hole32mm
- Wheel motor:4kw
- Feeding motor:4kw
- Total power:4kw
- Consumption:9A
- Voltage:single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:200kgs
- Dimension:950x950x1100mm (wooden case size)
Our range of tube polishing machines can blend welds, remove scratch marks, round off flat spots and apply brushed, satin or mirror finishes. They are effective on tube, bar and pipes with typical applications including balustrades, food and drink plant, marine fitments, rollcages, furniture and bollards.
The pipe polishing machine can be equipped with various polishing wheels to create different drawing effects, widely used in polishing of stainless steel, steel non-ferrous metals, plastic, and wood on the grinding, polishing, fine polishing.
Hangzhou wise machinery co., ltd. offers a complete line of finishing equipment for tube and pipe processing. Designed to limit your downtime and minimize material waste, our equipment is customized to fit your specifications and integrate seamlessly within your production line. We prioritize operator safety and efficiency by offering both manual and automatic pipe tube feeding solutions. Contact us to find the full finishing system or single machine to fit your needs.

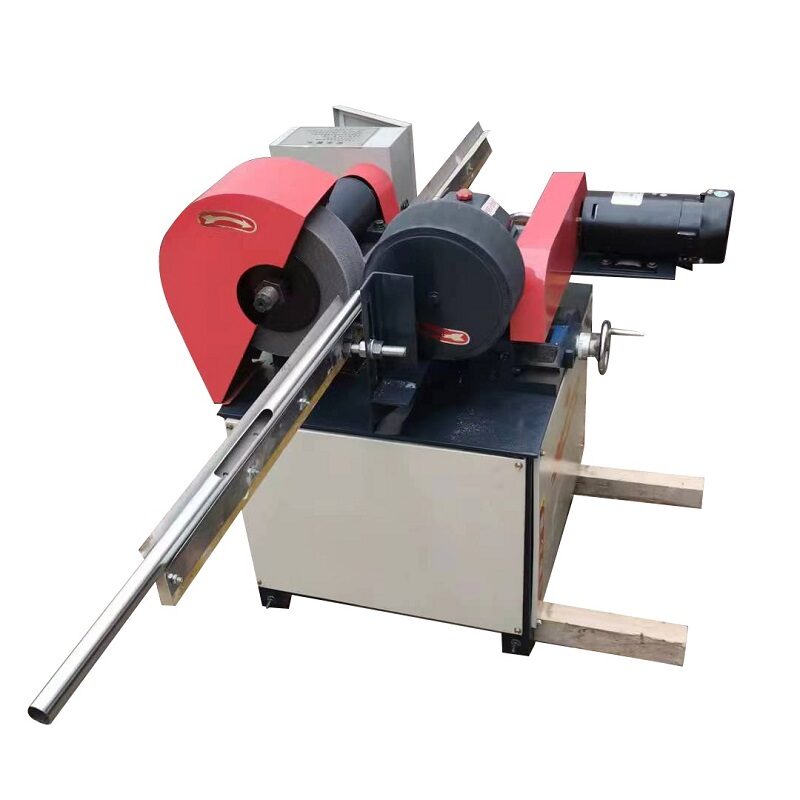

Tube polishing machine – WSPR-1-100 – is the perfect choice for finishing the surface of round pipe and tubes.
It is simple to work with. You only have to insert the pipe manually and the guide wheel will push the pipe go forward in the meantime the grinding wheel will polish the pipe automatically.
| Content | Data | Content | Data | ||||
| Working capacity | Diameter 3-100mm | Wheel motor | 4kw | ||||
| Working capacity | Length 1-3000mm | Feeding motor | 0.4kw | ||||
| Station no. | 1 Station | Voltage | single-phase / 3-phase | ||||
| Feeding speed | 1-6m/min(adjustable) | Gross weight | 200kgs | ||||
| Abrasive wheel speed | 2800rpm | Dimension | 950*950*1100mm |
