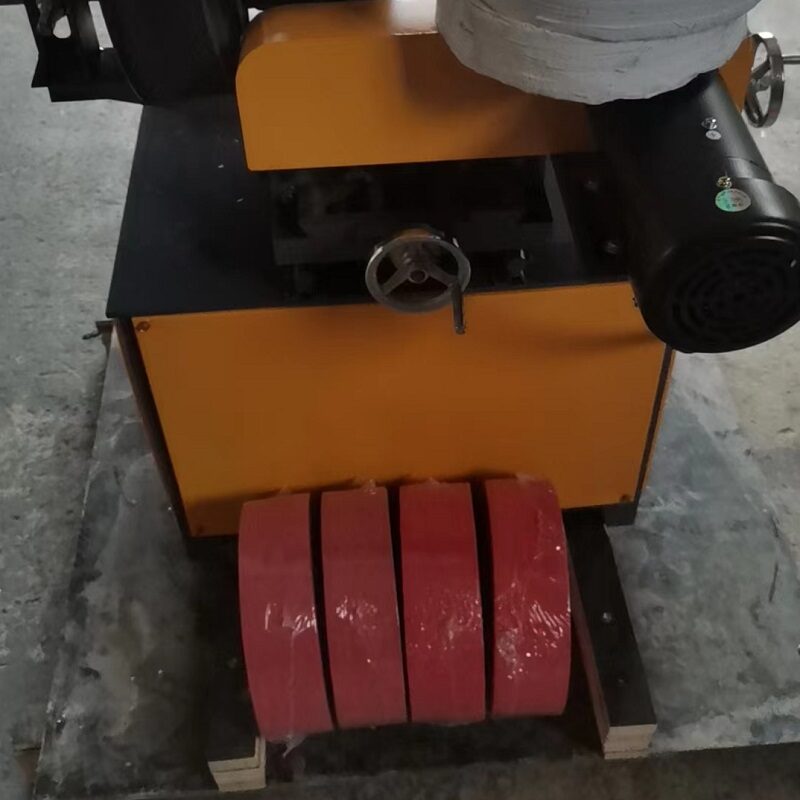

Pipe rust removal machine

Pipe rust removal machine is for polishing and removing rust on the outer surface of steel pipes and stainless steel tubes. Tubes can be polished to various grits and finishes OD (outer diameter polishing). The product is transported through the feeding wheel, and polishing wheels of different thickness can be installed to complete the effect of coarse grinding to fine polishing on the surface at one time.

PRODUCT SPECIFICATION

• Pipe rust removal machine
• Model:WSPR-1-100
• Working capacity (min.and max.diameter):2-100mm
• Working capacity (min.and max.pipe length):1-3000mm
• Station no.:1
• Feeding speed: 1-6m/min(adjustable, stepless speed adjusting)
• Abrasive wheel speed: 2800rpm
• Abrasive wheel size:Dia250xthickness80mm,hole32mm
• Wheel motor:4kw
• Feeding motor:0.4kw
• Total power:4.4kw
• Consumption:9A
• Voltage:single-phase / 3-phase customized
• Standard with 1 set grinding wheel
• Gross weight:200kgs
• Dimension:950x950x1100mm (wooden case size)

APPLICATION

Pipe rust polishing machine are widely used in below applications.

• Small diameter and big diameter pipe polishing
• Fine pipe surface polishing
• Slender pipe polishing
• Rusty pipe polishing

FAQ

• Is this stickpolishing machine working for both pipe and solid rod?
• Yes, it works for both of them.

• What is the difference between single-station machine and multi-station polishing machine?
• Single-head machine means there is only single one polishing wheel while for multi-head machine there is several working position with different material of polishing

• What kind of grinding wheel do we use on our machine?
• We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.

• What is the life span of the abrasive wheel?
• 3500meters rodpolishing each.

• Why should you buy from us not from other suppliers?
• We focus on metal pipe polishing machine and after-sale service.

• How is the packaging?
• We use wrapping film and wooden crate to pack each machine.
