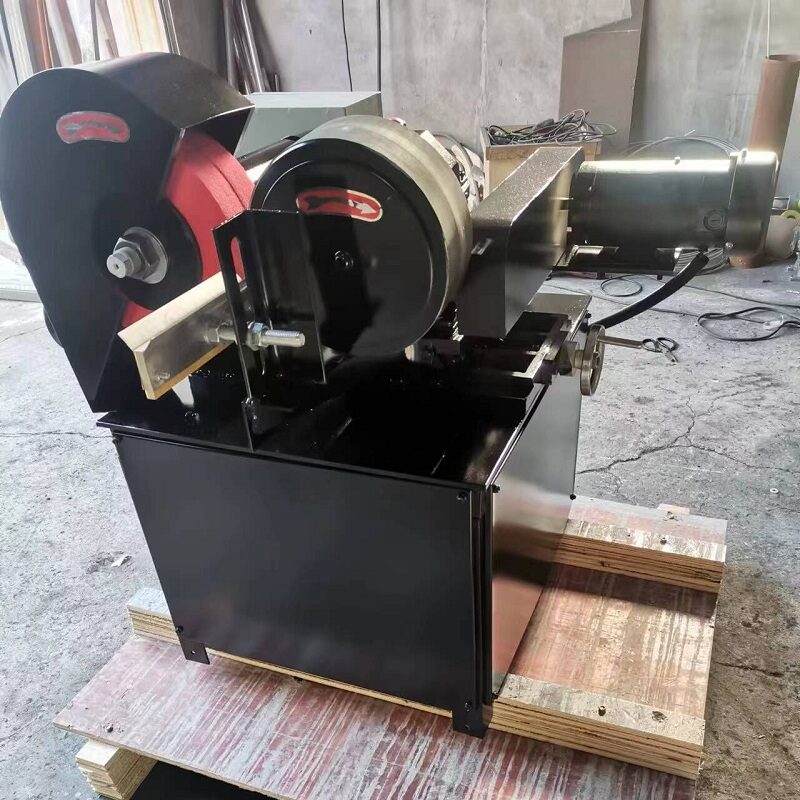

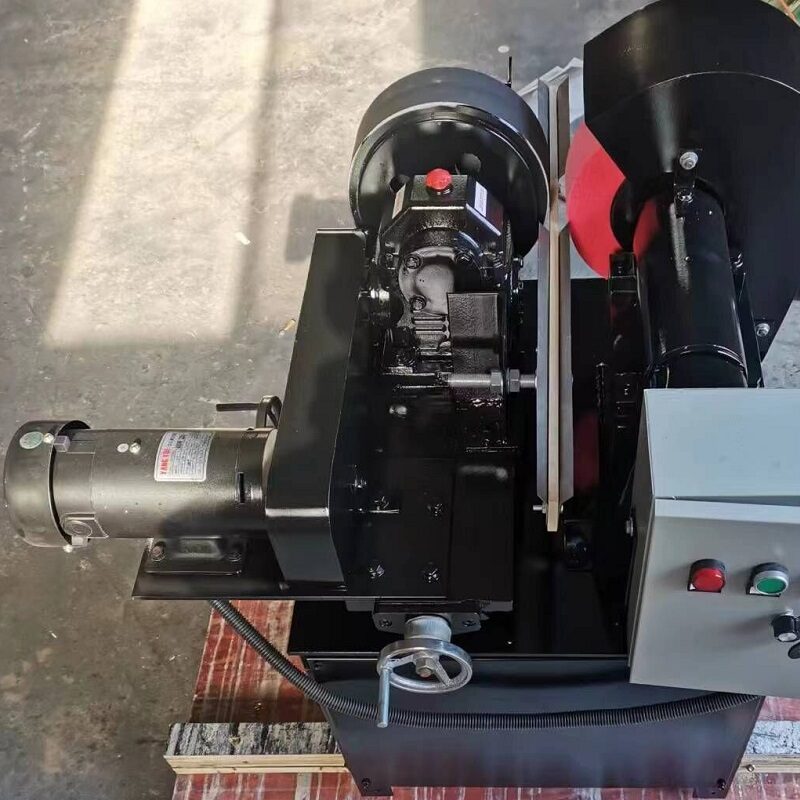

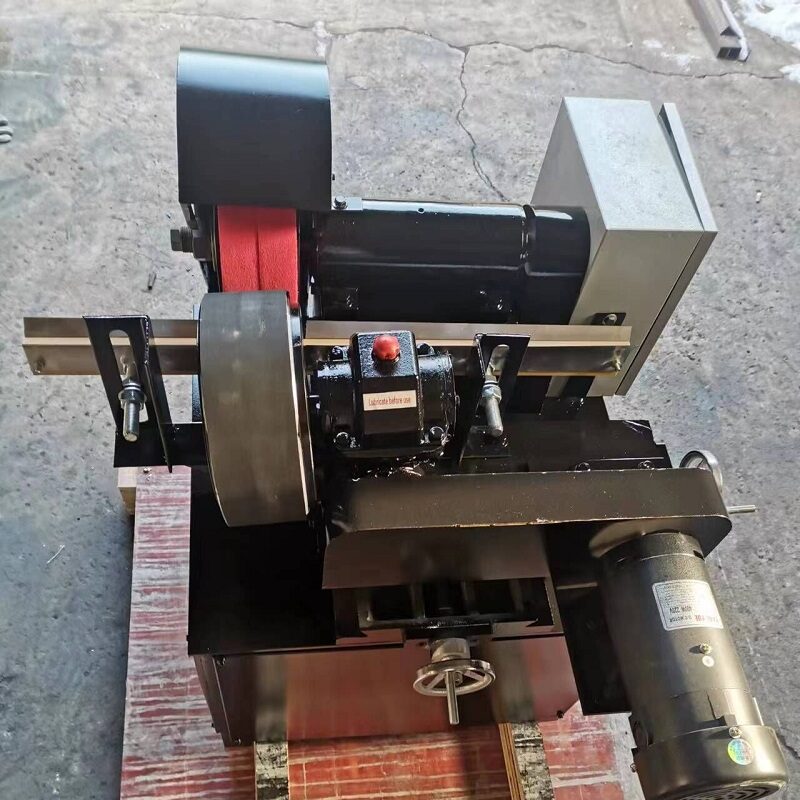

Plastic pipe polishing machine
- Technical Detail
- Plastic pipe polishing machine
- Model:WSPR-1-100
- Working capacity (min.and max.diameter):2-100mm
- Working capacity (min.and max.pipe length):1-3000mm
- Station no.:1
- Feeding speed: 1-6m/min(adjustable, stepless speed adjusting)
- Abrasive wheel speed: 2800rpm
- Abrasive wheel size:Dia250xthickness80mm,hole32mm
- Wheel motor:4kw
- Feeding motor:0.4kw
- Total power:4.4kw
- Consumption:9A
- Voltage:single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:200kgs
- Dimension:950x950x1100mm (wooden case size)
This plastic pipe polishing machine machine are suitable for polishing workpieces of different sizes and diameters. It is used for polishing the outer surface of various shafts, rods and pipe fittings. This machine is mainly used in: hardware, electroplating pipes, pipes, natural gas pipelines, cylinder rods, round rods and shafts, electroplating, steel and wood furniture, standard parts, auto and motorcycle accessories and hydraulic transmission and other manufacturing industries
PRODUCT SPECIFICATION
- Plastic pipe polishing machine
- Model:WSPR-1-100
- Working capacity (min.and max.diameter):2-100mm
- Working capacity (min.and max.pipe length):1-3000mm
- Station no.:1
- Feeding speed: 1-6m/min(adjustable, stepless speed adjusting)
- Abrasive wheel speed: 2800rpm
- Abrasive wheel size:Dia250xthickness80mm,hole32mm
- Wheel motor:4kw
- Feeding motor:0.4kw
- Total power:4.4kw
- Consumption:9A
- Voltage:single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:200kgs
- Dimension:950x950x1100mm (wooden case size)
| Content | Data | Content | Data | ||||
| Working capacity | 2-100mm diameter | Wheel motor | 4kw | ||||
| Working capacity | Length 1mm-3000mm | Feeding motor | 0.4kw | ||||
| Station no. | One Station | Voltage | single-phase / 3-phase | ||||
| Feeding speed | 0-6m/min(adjustable) | Gross weight | 200kgs | ||||
| Abrasive wheel speed | 2800rpm | Dimension | 950*950*1100mm |
APPLICATION
Application Industries:
- Furniture industry: steel table tube, steel chair tube, steel bed tubes, steel towel rack, etc.
- Construction industry: steel guardrails, steel doors, steel handrails and steel windows, etc.
- Public facilities industry: flagpoles, outdoor sports equipment, bus and subway handrails, etc.
FAQ
- What else material can be polished by this machine?
- This polishing machineworks for not only bamboo pipe but also plastic pipe and metallic pipe polishing.
- What is the difference between single-station machine and multi-station polishing machine?
- Single-head machine means there is only single one polishing wheel while for multi-head machine there is several working position with different material of polishing
- What kind of grinding wheel do we use on our machine?
- We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.
- What is the life span of the abrasive wheel?
- 3500meters rodpolishing each.
- Do you have machine in stock?
- Yes, we have ready stock for regular machines, but if your voltage are different from what in China we will need 7-10days to customize motor for you.
