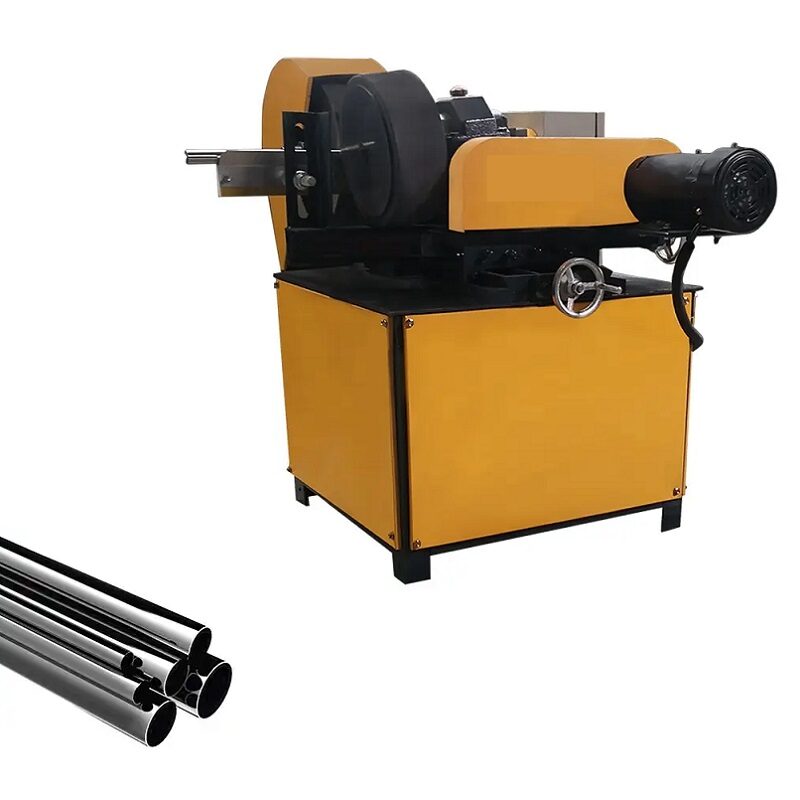

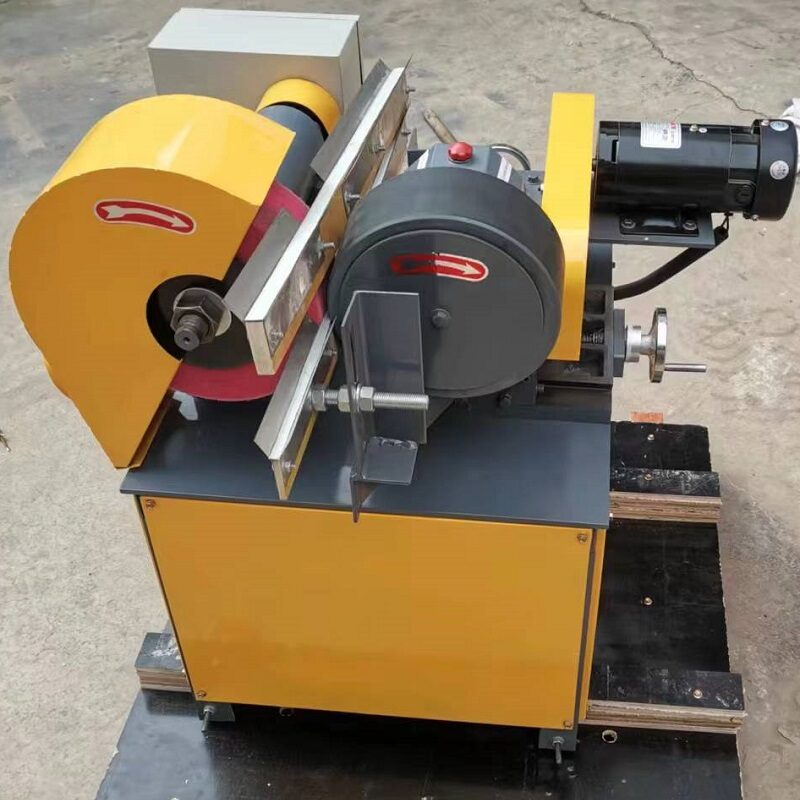

Polishing machine with bowl feeder

INTRODUCTION

Polishing machine with bowl feeder can feed small and short metal pipes automatically to the polishing head of machine, it save the time for worker to insert short pipe one by one by hand to machine.

Grinding finish: Usually use 60#-80# grit abrasive belt or flap wheels.

Brushed finish: Usually use 120#-180# grit abrasive belt or flap wheels.

Sanitary finish: Usually use 180#-240# grit abrasive belt or flap wheels.

Polished finish: Usually use 240#-320# grit abrasive belt or flap wheels, then use sisal wheel.

Glossy finish: Usually use 400#-600# grit abrasive belt or flap wheels, sisal wheel, common cloth wheel.

Mirror finish: Usually use 600#-800# grit abrasive belt,then use sisal wheel,hard cloth wheel,at last step use cotton wheels to get 100% 8K Mirror finishing.

PRODUCT SPECIFICATION

• Polishing machine with bowl feeder
• Model number: WSPR-3-120H
• Working capacity (min.and max.diameter): 4-120mm
• Working capacity (min.and max.pipe length): 10mm – any
• Station no.: 3
• Feeding speed: 1-6m/min(adjustable, stepless speed adjusting)
• Abrasive wheel speed: 2800rpm
• Abrasive wheel size: Dia250xthickness80mm,hole32mm
• Wheel motor: 4kw * 3pieces
• Feeding motor: 0.75kw
• Air blower motor: 2.2kw
• Total power: 15kw
• Consumption: 30A
• Voltage: 3-phase customized
• Standard with 1 set grinding wheel
• Gross weight: 750kgs
• Dimension: 1850x1100x1200 (wooden case size)

APPLICATION

Pipe polishing machine are widely used in brushed effect hairline aluminum profile, exhaust pipe, plastic pipe burrs removing, smooth surface of wooden stick,  natural gas pipe line derusting, hardware accessories and metal parts, glass fiber pipe, stainless steel pipe hairline drawing effect, stainless steel pipe scratch removing, mirror effect for stainless steel pipe, medical use pipe mirror grade surface grinding, kitchen and toilet item silk effect, flexible pipe, gas tank rust removal, special item such as battery and electric heating pipe.

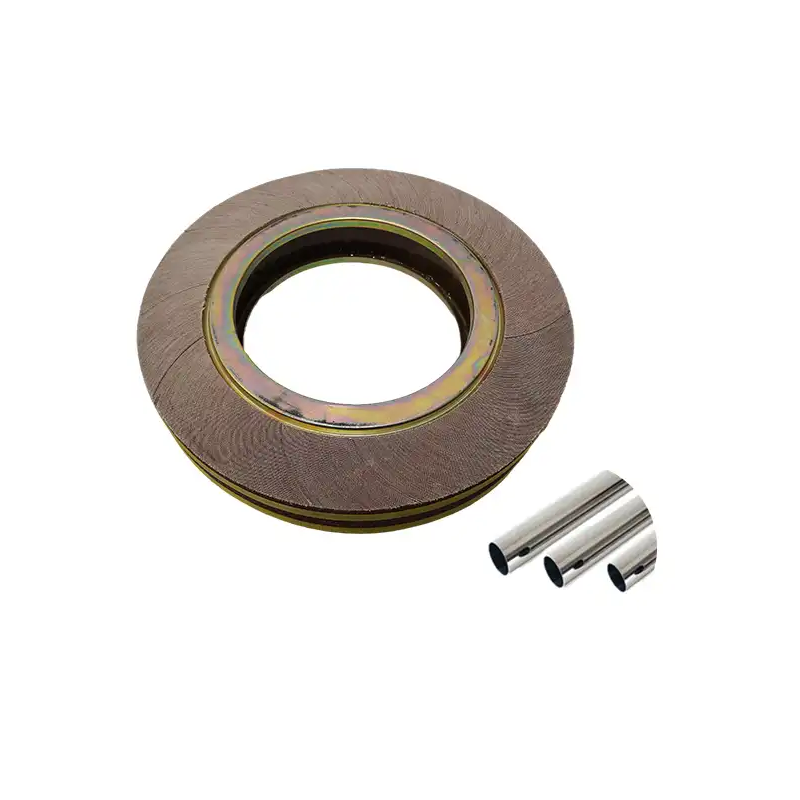

PICTURE OF POLISHING WHEELS

FAQ

• What can you purchase from us?
• All kind of grinding and polishing machines, such as round and rectangular pipe polishing machine, wire rod polishing machine, metal plate polishing machine etc..

• What is the difference between single-station machine and two station polishing machine?
• Single-head machine means there is only single one grindingwheel, while for two head machine there is several working position with different material of buffing wheels.

• What kind of grinding wheel do we use on our machine?
• We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.

• What is the life span of the abrasive wheel?
• 3500meters pipe polishing each.

• What is the assembly size of the abrasive wheel?
• Diameter 250mm, width 40x2mm, Inner hole diameter 32mm.

• Is the tube polishing machine fully automatic?
• We have both manual feeding and automatic feeding.

• Do you have machine in stock?
• Yes, we have ready stock for regular machines, but if your voltage are different from what in China we will need 7-10days to customize motor for you.

• What accessories are included in machine?
• One set free abrasive wheel and air blower, dust collector

• How is the packaging?
• We use wrapping film and wooden crate to pack each machine.

• How we guarantee the quality?
• We will test at least one pipes on every polishing machine before shipping out.Some of our heavy duty models of tube polishing machine works well after even 8 years according to our client feedback, for all of our machine we offer one year warranty.
