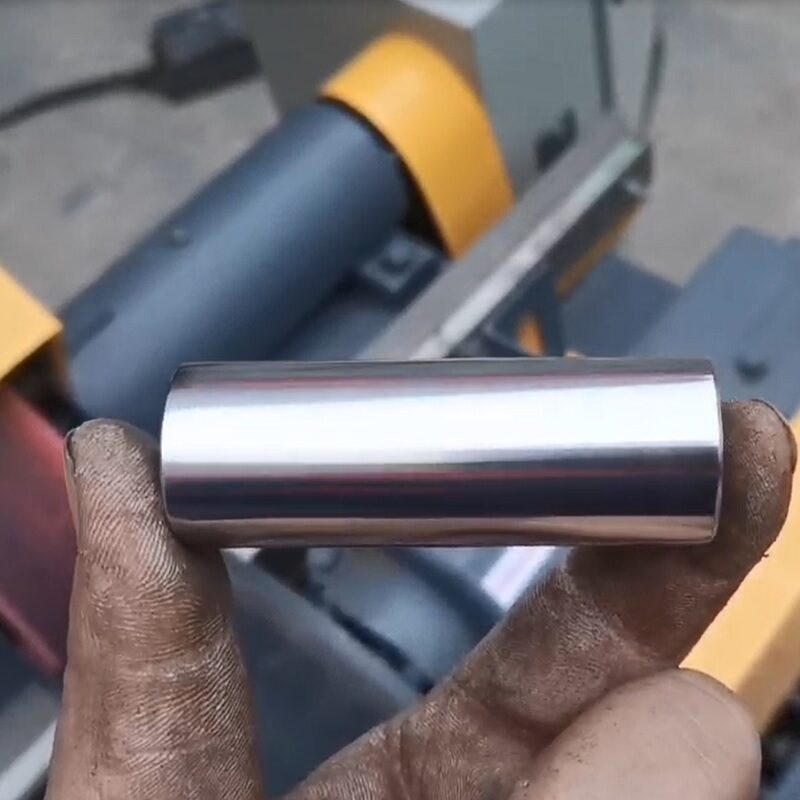

Short pipe centerless brushing and polishing machine

Short pipe centerless brushing and polishing machine has high efficiency and you can choose various kinds of grinding tools. The machine is mainly used in hardware, electroplating, steel-wood furniture, standard parts, auto parts and other manufacturing industries, can be a variety of shaft, rod, stainless steel, boiler tubes, high precision tube, titanium alloy rod, engineering hydraulic rods for machinery, shock absorber rods for automobiles and motorcycles, valve rods, oil pumped polished rods, all kinds of metals, non-metallic rods, tubes, plastics, rubber tubes, aluminum tubes, textile machinery polished rods, cylindrical surfaces for various wire fittings can be polished.

PRODUCT SPECIFICATION

• Short pipe centerless brushing and polishing machine
• Model:WSPR-1-100
• Working capacity (min.and max.diameter):2-100mm
• Working capacity (min.and max.pipe length):1-3000mm
• Station no.:1
• Feeding speed: 1-6m/min(adjustable, stepless speed adjusting)
• Abrasive wheel speed: 2800rpm
• Abrasive wheel size:Dia250xthickness80mm,hole32mm
• Wheel motor:4kw
• Feeding motor:0.4kw
• Total power:4.4kw
• Consumption:9A
• Voltage:single-phase / 3-phase customized
• Standard with 1 set grinding wheel
• Gross weight:200kgs
• Dimension:950x950x1100mm (wooden case size)

INTRODUCTION

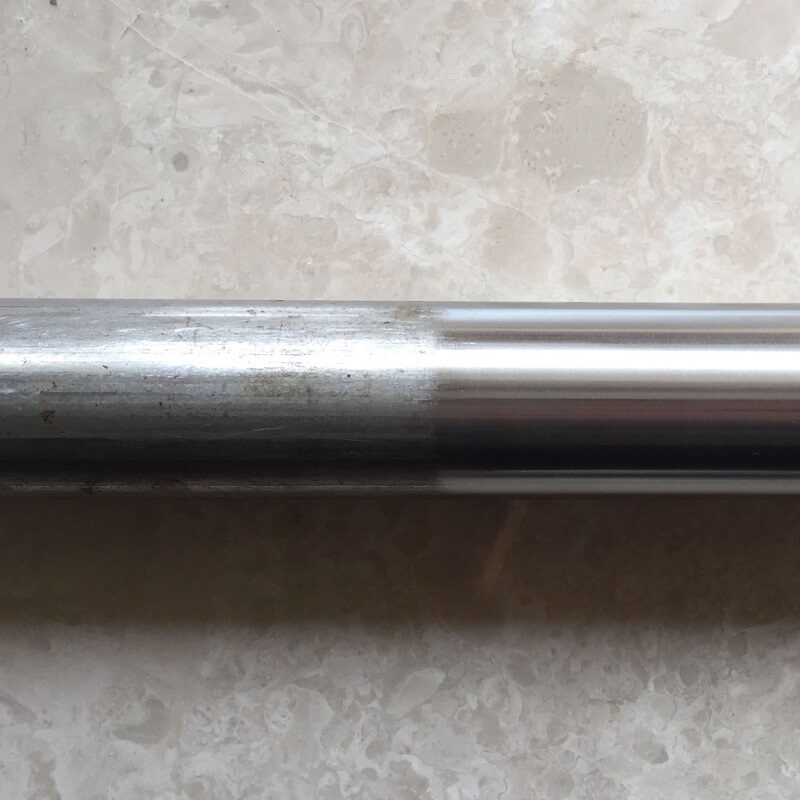

Stainless steel tubes pipes polishing machine is for metal pipe, auto parts, machinery manufacturing, decoration of various shaft, pipe parts and rod outside round surface polishing. It offer solutions for removing rust ,paint removal, scratch ,peroxidation on the surface of metal tubes pipes .

Features

It is simple and easy to operate, suitable for polishing and polishing of slender, large and   short diameter workpieces, meanwhile it is especially suitable for processing ultra-fine diameter workpieces.

The speed of the guide wheels can be adjusted to meet the requirements of grinding and polishing of workpieces with different diameters and different speeds.

Optional installation of dust removal system.

Application

Electroplating, hardware, mold processing, gas spring rod, hydraulic accessories, copper pipes, aluminum pipes, stainless steel pipes, handicraft processing, steel furniture, tracheon, vehicle accessories and other circular polishing. The equipment can be used for polishing, rust removal, wire finish, grinding, and deoxidize the pipes and rods of various materials, such as iron, copper, zinc alloy, aluminum alloy, stainless steel, titanium alloy etc.

FAQ

• Is this stickpolishing machine working for both pipe and solid rod?
• Yes, it works for both of them.

• What is the difference between single-station machine and multi-station polishing machine?
• Single-head machine means there is only single one polishing wheel while for multi-head machine there is several working position with different material of polishing

• If the budget is limited, can I just purchase a single-station machine and changepolishing wheels to get similar function as a multi-head machine?
• Yes, this is possible, if you polish small quantity pipes, you can first put on a rough polishing wheels on single-head machine and after all pipes are done for first time polishing, change to another fine polishing wheel and repeat.

• What kind of grinding wheel do we use on our machine?
• We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.

• What is the life span of the abrasive wheel?
• 3500meters rodpolishing each.

• Do you have machine in stock?
• Yes, we have ready stock for regular machines, but if your voltage are different from what in China we will need 7-10days to customize motor for you.
