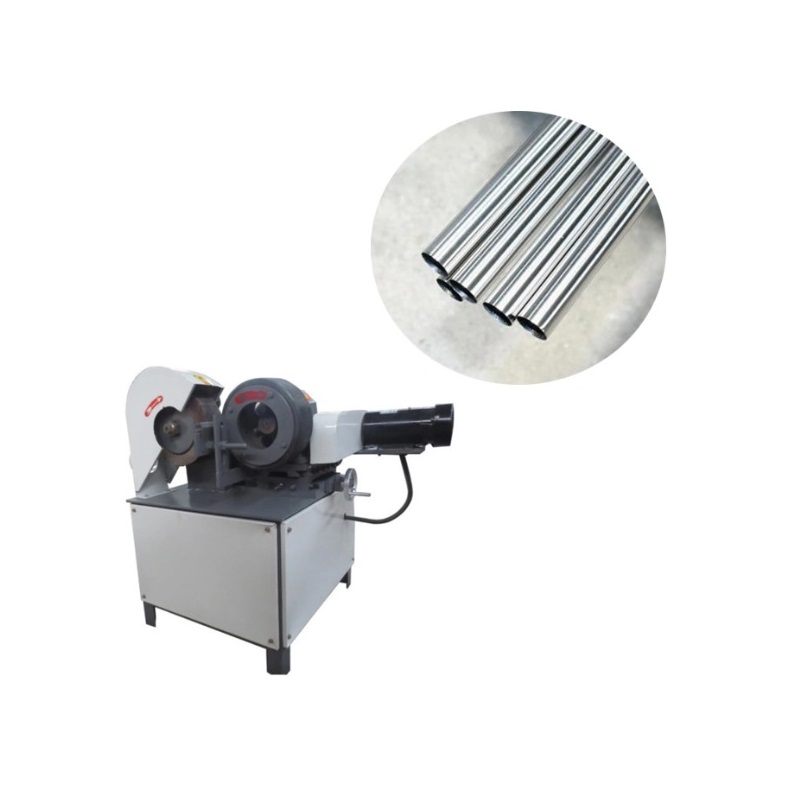

Short pipe sanding machine

The main purpose of the short pipe sanding machine is for polishing industry round rod parts and round pipes for such as hardware, electroplating, vehicle accessories, steel and wood furniture and standard parts. It is the best choice of machine for polishing round tubes, round rods and slender shafts. It can improve work efficiency, improve the surface finish of the workpiece. It can be used for polishing, removing rust, hair line finish, grinding, and descale pipes and bars of various materials, such as iron, copper, zinc alloy, aluminum alloy, stainless steel, titanium alloy and other materials.

PRODUCT SPECIFICATION

• Short pipe sanding machine
• Model:WSPR-1-100
• Working capacity (min.and max.diameter):2-100mm
• Working capacity (min.and max.pipe length):1-3000mm
• Station no.:1
• Feeding speed: 1-6m/min(adjustable, stepless speed adjusting)
• Abrasive wheel speed: 2800rpm
• Abrasive wheel size:Dia250xthickness80mm,hole32mm
• Wheel motor:4kw
• Feeding motor:0.4kw
• Total power:4.4kw
• Consumption:9A
• Voltage:single-phase / 3-phase customized
• Standard with 1 set grinding wheel
• Gross weight:200kgs
• Dimension:950x950x1100mm (wooden case size)


APPLICATION

Short pipe sanding machine are widely used in below applications.

• Rod polishing
• Stainless steel pipe polishing
• Metal tube polishing
• Steel rod polishing

FAQ

• Is this stickpolishing machine working for both pipe and solid rod?
• Yes, it works for both of them.

• What is the difference between single-station machine and multi-station polishing machine?
• Single-head machine means there is only single one polishing wheel while for multi-head machine there is several working position with different material of polishing

• If the budget is limited, can I just purchase a single-station machine and changepolishing wheels to get similar function as a multi-head machine?
• Yes, this is possible, if you polish small quantity pipes, you can first put on a rough polishing wheels on single-head machine and after all pipes are done for first time polishing, change to another fine polishing wheel and repeat.

• What kind of grinding wheel do we use on our machine?
• We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.

• What is the life span of the abrasive wheel?
• 3500meters rodpolishing each.

• Do you have machine in stock?
• Yes, we have ready stock for regular machines, but if your voltage are different from what in China we will need 7-10days to customize motor for you.
