Single Head Carbon Steel Round Pipe Polishing Machine

The single head carbon steel round pipe polishing machine can be equipped with various polishing wheels to create different drawing effects, widely used in polishing of stainless steel, steel non-ferrous metals, plastic, and wood on the grinding, polishing, fine polishing.

PRODUCT SPECIFICATION

• Model:WSPR-1-180
• Working capacity (min.and max.diameter):2-180mm
• Working capacity (min.and max.pipe length):1-3000mm
• Station no.:1
• Feeding speed: 1-6m/min(adjustable, stepless speed adjusting)
• Abrasive wheel speed: 2800rpm
• Abrasive wheel size:Dia250xthickness80mm,hole32mm
• Wheel motor:4kw
• Voltage:single-phase / 3-phase customized
• Standard with 1 set grinding wheel
• Gross weight:220kgs
• Dimension:1100x1200x1200mm (wooden case size)

Hangzhou wise machinery co., ltd. offers a complete line of finishing equipment for tube and pipe processing. Designed to limit your downtime and minimize material waste, our equipment is customized to fit your specifications and integrate seamlessly within your production line. We prioritize operator safety and efficiency by offering both manual and automatic pipe tube feeding solutions. Contact us to find the full finishing system or single machine to fit your needs.

Tube polishing machine – WSPR-1-180 – is the perfect choice for finishing the surface of round pipe and tubes.

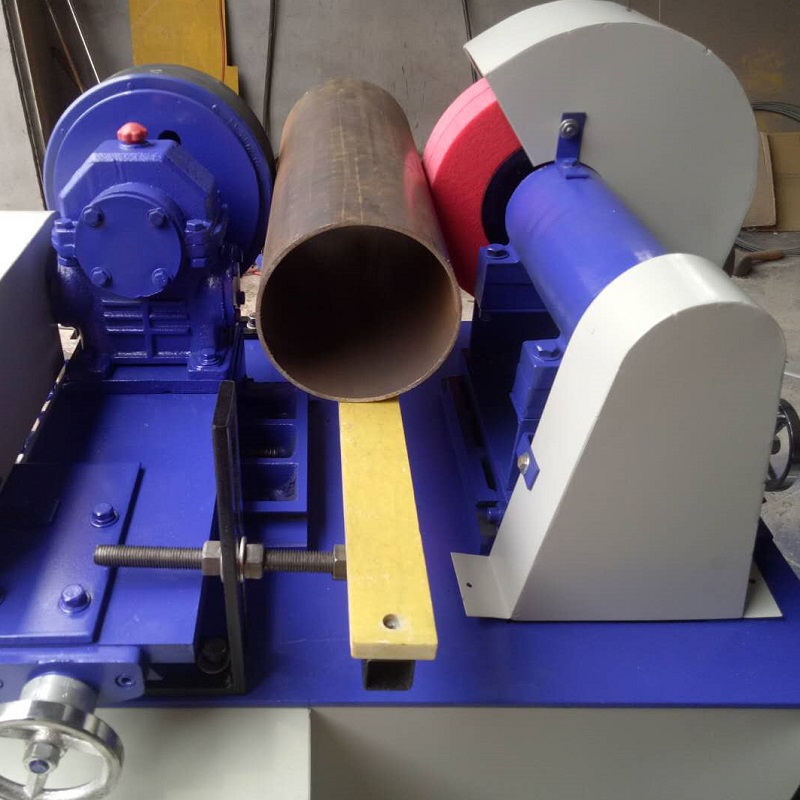

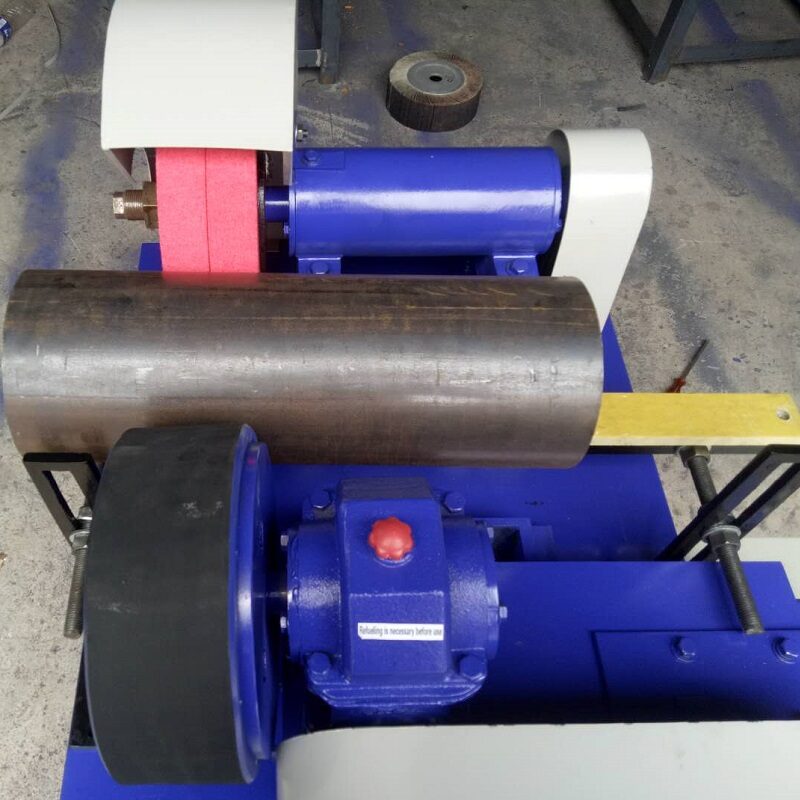

It is simple to work with. You only have to insert the pipe manually and the guide wheel will push the pipe go forward in the meantime the grinding wheel will polish the pipe automatically.
