Special irregular tube polishing machine
- Technical Details
- Special irregular tube polishing machine
- Model: WSPR-1-100P
- Working capacity (min.and max.diameter) : 3-100mm
- Working capacity (min.and max.pipe length): 1-3000mm
- Station no.: 1
- Feeding speed: 1-6m/min(adjustable, stepless speed adjusting)
- Abrasive wheel speed: 2800rpm
- Abrasive wheel size: Dia250xthickness80mm,hole32mm
- Wheel motor: 4kw
- Feeding motor: 0.4kw
- Total power: 4.4kw
- Consumption: 9A
- Voltage: single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight: 220kgs
- Dimension: 950x950x1100 (wooden case size)

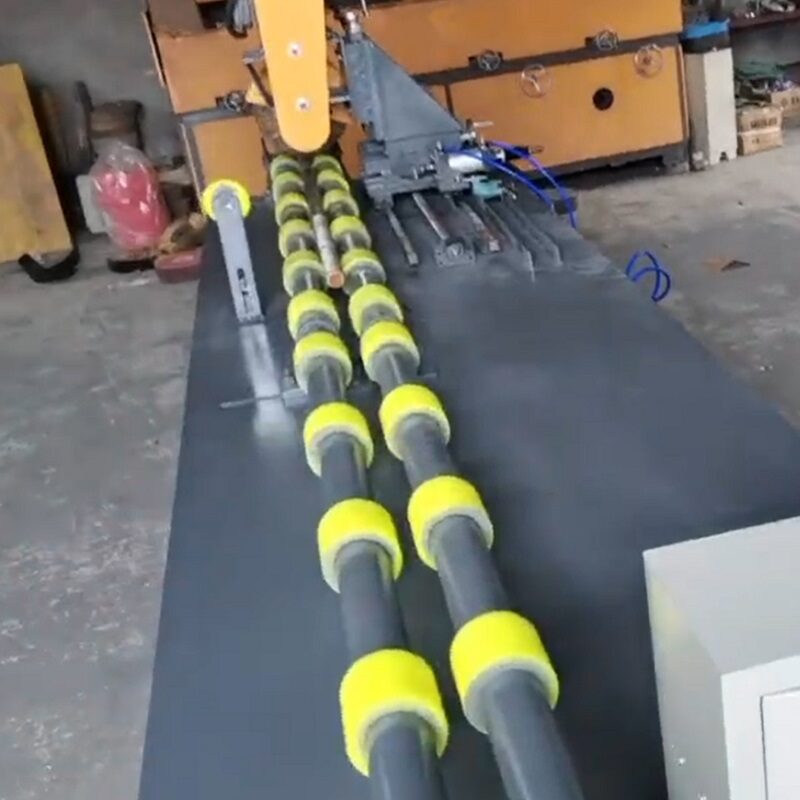

Special irregular tube polishing machine is a tube polishing machine with footedal, it is designed for special polish requirement for irregular tube to polish a certain position / section of your workpiece.
PRODUCT SPECIFICATION
- Special irregular tube polishing machine
- Model: WSPR-1-100P
- Working capacity (min.and max.diameter) : 3-100mm
- Working capacity (min.and max.pipe length): 1-3000mm
- Station no.: 1
- Feeding speed: 1-6m/min(adjustable, stepless speed adjusting)
- Abrasive wheel speed: 2800rpm
- Abrasive wheel size: Dia250xthickness80mm,hole32mm
- Wheel motor: 4kw
- Feeding motor: 0.4kw
- Total power: 4.4kw
- Consumption: 9A
- Voltage: single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight: 220kgs
- Dimension: 950x950x1100 (wooden case size)
| Content | Data | Content | Data | ||||
| Working capacity | 3-100mm diameter | Wheel motor | 4kw | ||||
| Working capacity | Length 1mm-3000mm | Feeding motor | 0.4kw | ||||
| Station no. | One Station | Voltage | single-phase / 3-phase | ||||
| Feeding speed | 0-6m/min(adjustable) | Gross weight | 220kgs | ||||
| Abrasive wheel speed | 2800rpm | Dimension | 950*950*1100mm |
APPLICATION
Application of pipe polishing machine
it is suitable for all kinds of axle, bar, pipe fittings cylindrical surface grinding and polishing; long stainless steel tube, boiler tube, high precision drawn tube, Ti-alloy bars; engineering machinery hydraulic lever, automobile and motorcycle shock absorber rod, valve rod, oil field pumping polished rod; polishing and grinding of various kinds of all kinds of metal/metal bar, pipe, plastic, plastic rubber tube, textile machinery polished rod and wire rod.
FAQ
- Is this pipe polishing machine working for both round hose and round rods?
- Yes, it works for both of them.
- What kind of grinding wheel do we use on our machine?
- We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.
- What is the life span of the abrasive wheel?
- 3500meters pipe polishing each.
- What is the assembly size of the abrasive wheel?
- Diameter 250mm, width 40x2mm, Inner hole diameter 32mm.
- Is thepneumatic sprinkler tube polishing machine requiring an air compressor?
- Yes.
- Do you have machine in stock?
- Yes, we have ready stock for regular machines, but if your voltage are different from what in China we will need 7-10days to customize motor for you.
- What accessories are included in machine?
- One set free polishwheel
- How is the packaging?
- We use wrapping film and wooden crate to pack each machine.
- How we guarantee the quality?
- We will test at least one pipes on every polishing machine before shipping out.Some of our heavy duty models of tube polishing machine works well after even 8 years according to our client feedback, for all of our machine we offer one year warranty.
