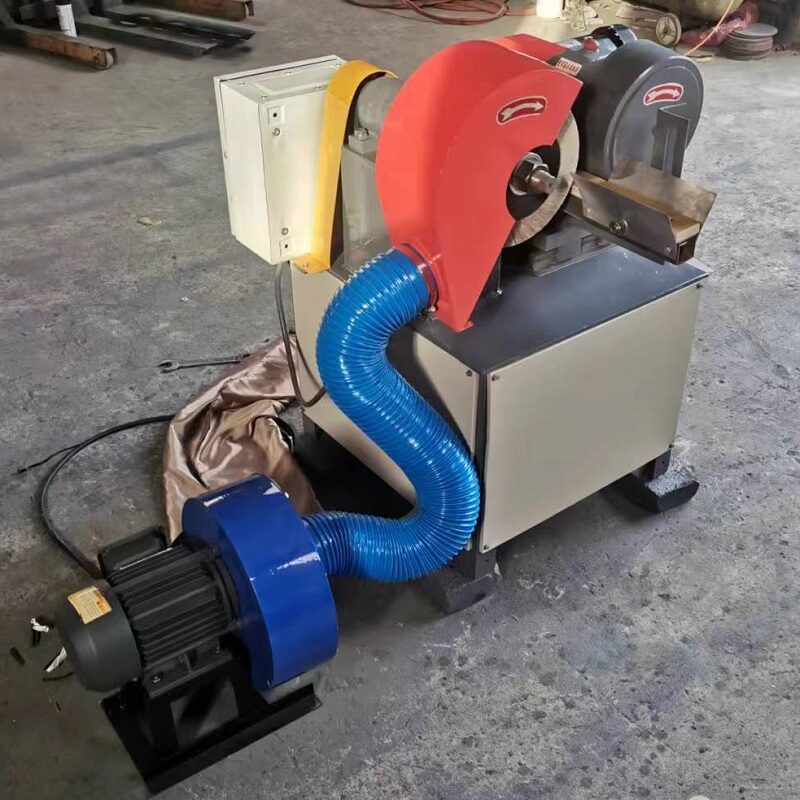

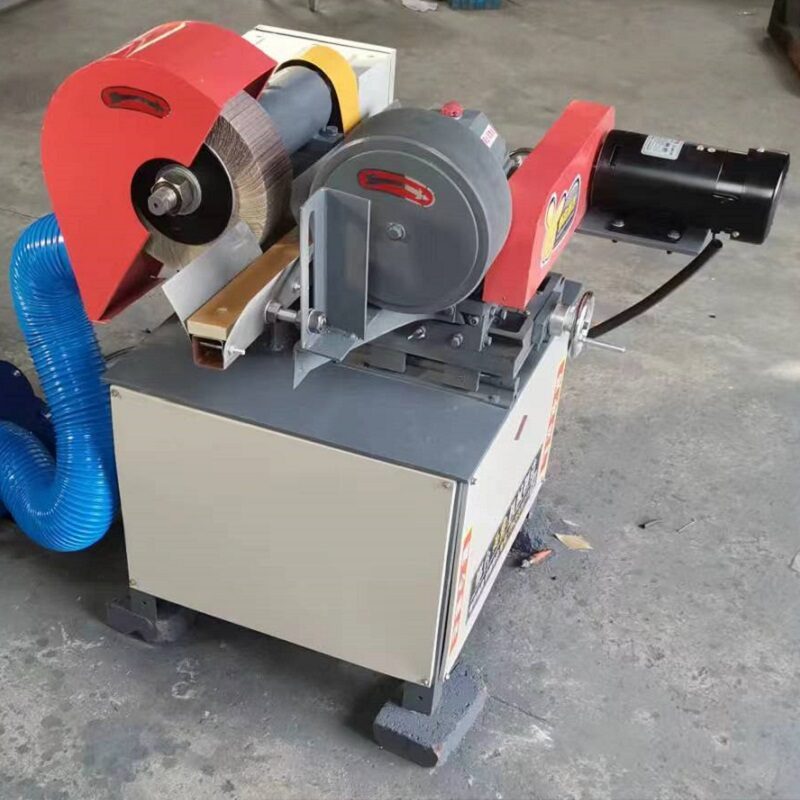

Steel Pipe Polishing Machine

Steel pipe polishing machine can be used for round metal pipe polishing, worker feed the pipe manually into machine head, there is a polishing wheel driven by the main motor which will polish the pipes and push the pipe to the outlet. By changing the speed and polishing wheel you can have different finish on the surface of the steel pipe.

PRODUCT SPECIFICATION

• Steel pipe polishing machine
• no: WSPR-1-100
• Working capacity (min.and max.diameter):2-100mm
• Station no.:1
• Feeding speed:0-6m/min(adjustable)
• Abrasive wheel speed:1400rpm
• Abrasive wheel size:Dia250xthickness80mm,hole32mm
• Wheel motor:4kw
• Feeding motor:0.4kw
• Total power:4.4kw
• Voltage:single-phase / 3-phase customized
• Standard with 1 set grinding wheel
• Gross weight:200kgs
• Dimension:950x950x1100(H) (wooden case size)

FEATURE

• Introduction
• Stainless steel tubes pipes polishing machine is for metal pipe, auto parts, machinery manufacturing, decoration of various shaft, pipe parts and rod outside round surface polishing. It offer solutions for removing rust ,paint removal, scratch ,peroxidation on the surface of metal tubes pipes .

• Features
• It is simple and easy to operate, suitable for polishing and polishing of slender, large and short diameter workpieces, meanwhile it is especially suitable for processing ultra-fine diameter workpieces. The speed of the guide wheels can be adjusted to meet the requirements of grinding and polishing of workpieces with different diameters and different speeds. Optional installation of dust removal system.

• Application
• Electroplating, hardware, mold processing, gas spring rod, hydraulic accessories, copper pipes, aluminum pipes, stainless steel pipes, handicraft processing, steel furniture, tracheon, vehicle accessories and other circular polishing. The equipment can be used for polishing, rust removal, wire finish, grinding, and deoxidize the pipes and rods of various materials, such as iron, copper, zinc alloy, aluminum alloy, stainless steel, titanium alloy etc.

FAQ

• Why should you buy from us not from other suppliers?
• We focus on metal pipe polishing machine and after-sale service.

• How we guarantee the quality?
• We will test at least one pipes on every polishing machine before shipping out.Some of our heavy duty models of tube polishing machine works well after even 8 years according to our client feedback, for all of our machine we offer one year warranty.

• For a taper shape metal pipe, can both big diameter side and smaller diameter side been polished well?
• Yes, this machine can polish all position on a cone shape pipe.

• What kind of grinding wheel do we use on our machine?
• We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.

• What is the life span of the abrasive wheel?
• 3500meters pipe polishing each.

• What is the assembly size of the abrasive wheel?
• Diameter 250mm, width 40x2mm, Inner hole diameter 32mm.

• Do you have machine in stock?
• Yes, we have ready stock for regular machines, but if your voltage are different from what in China we will need 7-10days to customize motor for you.

• What accessories are included in machine?
• One set free abrasive wheel and air blower, dust collector

• How is the packaging?
• We use wrapping film and wooden crate to pack each machine.
