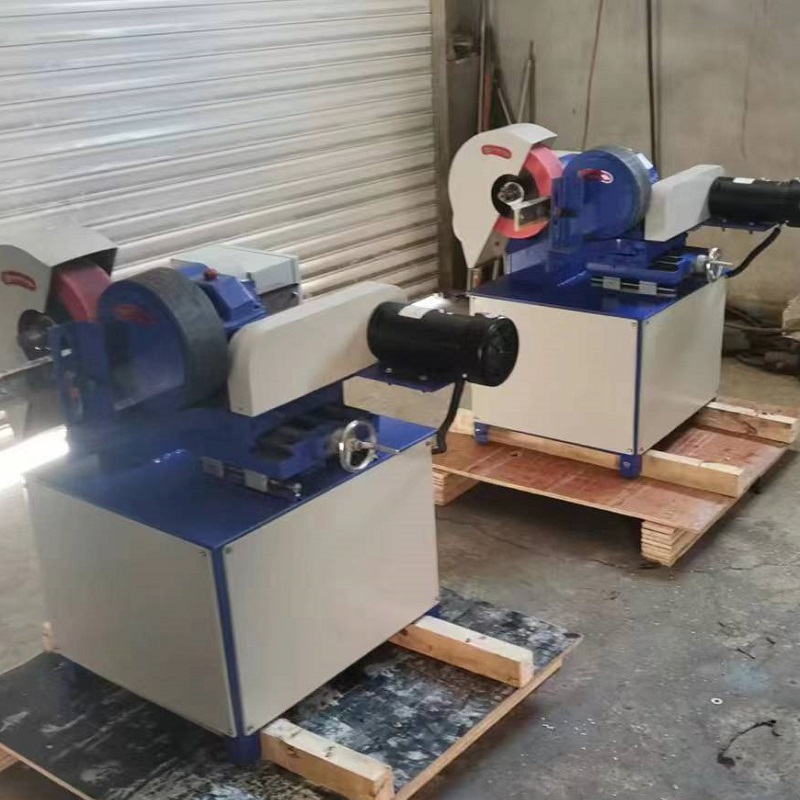

Steel Pipe Rust Removing Machine
- Technical Details
- Steel pipe rust removing machine
- Model:WSPR-1-100
- Working capacity (min.and max.diameter):3-100mm
- Working capacity (min.and max.pipe length):1-3000mm
- Station no.:1
- Feeding speed: 1-6m/min(adjustable, stepless speed adjusting)
- Abrasive wheel speed: 2800rpm
- Abrasive wheel size:Dia250xthickness80mm,hole32mm
- Wheel motor:4kw
- Feeding motor:0.4kw
- Total power:4.4kw
- Consumption:9A
- Voltage:single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:200kgs
- Dimension:950x950x1100mm (wooden case size)

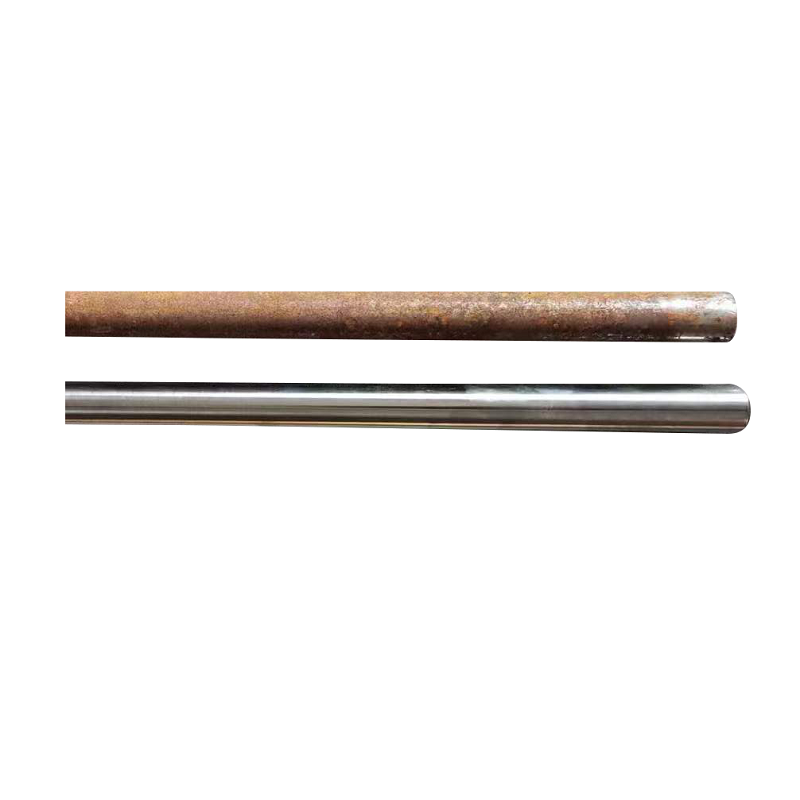

Our steel pipe rust removing machine are for rusty pipe outer surface polishing. Mainly used for rust removal and polishing in hardware manufacturing, vehicle parts, hydraulic cylinders, steel-wood furniture,instrument machinery, standard parts, and before and after electroplating, from rough polishing to fine polishing.
PRODUCT SPECIFICATION
- Steel pipe rust removing machine
- Model:WSPR-1-100
- Working capacity (min.and max.diameter):3-100mm
- Working capacity (min.and max.pipe length):1-3000mm
- Station no.:1
- Feeding speed: 1-6m/min(adjustable, stepless speed adjusting)
- Abrasive wheel speed: 2800rpm
- Abrasive wheel size:Dia250xthickness80mm,hole32mm
- Wheel motor:4kw
- Feeding motor:0.4kw
- Total power:4.4kw
- Consumption:9A
- Voltage:single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:200kgs
- Dimension:950x950x1100mm (wooden case size)
APPLICATION
Our steel pipe rust removing machine are generally used for below applications.
- Steel pipe derusting
- Steel pipe rust removal and pit grinding
- Slight rust cleaning on metal pipes
- Steel tube descaling
FAQ
- Who are we?
- We are professional pipe polishing machine company located in Xingtai city of China, we are close to Port Tianjin and Port Qingdao. We mainly sell to North America, Europe and the Middle East countries.
- What kind of grinding wheel do we use on our machine?
- We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.
- What is the life span of the abrasive wheel?
- 3500meters pipe polishing each.
- Is the tube polishing machine fully automatic?
- We have both manual feeding and automatic feeding.
- Do you have machine in stock?
- Yes, we have ready stock for regular machines, but if your voltage are different from what in China we will need 7-10days to customize motor for you.
- What accessories are included in machine?
- One set free abrasive wheel and air blower, dust collector
- How to place order?
- We accept T/T payment directly to our company account and we can also accept payment through Paypal and westernunion. We can ship by sea to sea port nearest to your city or ship to door. We do not have MOQ for our machines, we can ship any quantity.
