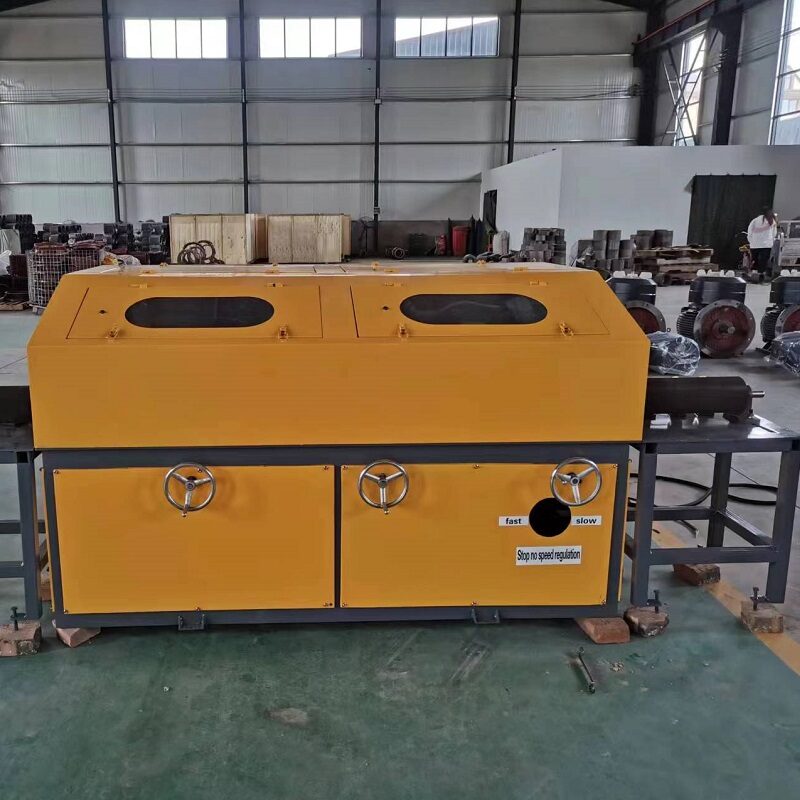

Tri-station carbon steel round pipe polishing machine
- Technical Details
- Tri-station carbon steel round pipe polishing machine
- Model no.: WSPR-3-160
- Working capacity (min.and max.diameter) :8-160mm
- Working capacity (min.and max.pipe length):500mm to any
- Station no.:3
- Feeding speed : 1-6m/min(adjustable, stepless speed adjusting)
- Abrasive wheel speed:2800rpm
- Abrasive wheel size:Dia250xthickness80mm,hole32mm
- Wheel motor:4kw * 3pieces
- Feeding motor:75kw
- Air blower motor:2kw *
- Total power:15kw
- Consumption:30A
- Voltage:3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:750kgs
- Dimension:1850x1100x1200 (wooden case size)

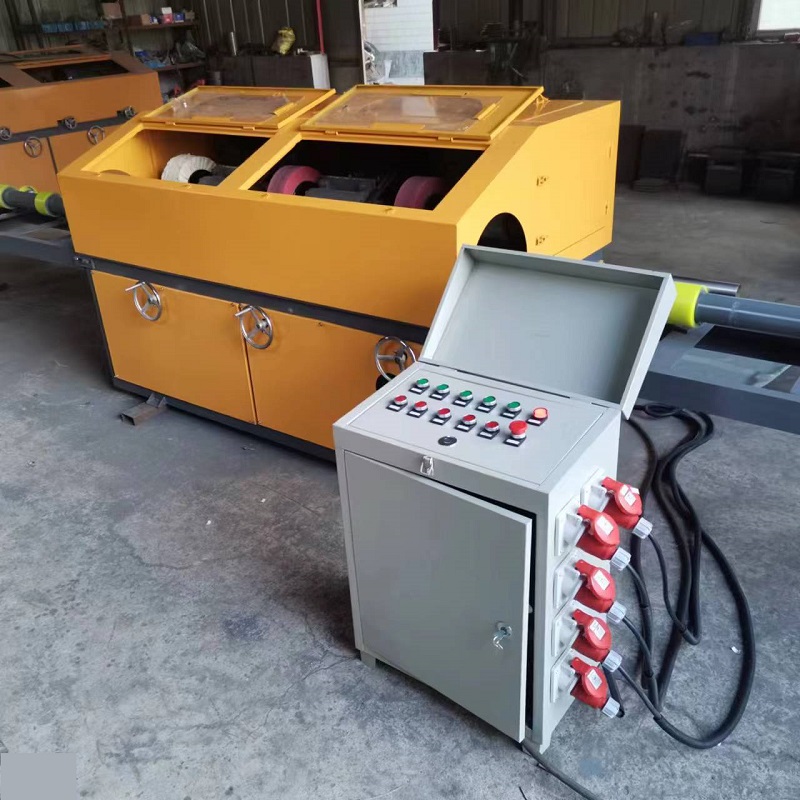

Tri-station carbon steel round pipe polishing machine are standard with three working position (polishing head) which makes it possible to polish one pipe 3 times in one time passing by. We can put different material buffing wheels in each working position so that we can get both rough polishing and fine polishing done in a short time.
PRODUCTION SPECIFICATION
- Tri-station carbon steel round pipe polishing machine
- Model no.: WSPR-3-160
- Working capacity (min.and max.diameter) :8-160mm
- Working capacity (min.and max.pipe length):500mm to any
- Station no.:3
- Feeding speed : 1-6m/min(adjustable, stepless speed adjusting)
- Abrasive wheel speed:2800rpm
- Abrasive wheel size:Dia250xthickness80mm,hole32mm
- Wheel motor:4kw * 3pieces
- Feeding motor:75kw
- Air blower motor:2kw *
- Total power:15kw
- Consumption:30A
- Voltage:3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:750kgs
- Dimension:1850x1100x1200 (wooden case size)
| Content | Data | Content | Data | ||||
| Working capacity | 8-160mm | Wheel motor | 4kw*3pcs | ||||
| Working capacity | Length 500mm-any | Feeding motor | 0.75kw | ||||
| Station no. | 3Station | Voltage | single-phase / 3-phase | ||||
| Feeding speed | 1-6m/min(adjustable) | Gross weight | 750kgs | ||||
| Abrasive wheel speed | 2800rpm | Dimension | 1850*1100*1200mm |
APPLICATION
Pipe polishing machine are widely used in below applications.
- Mirror effect for stainless steel pipe
- Steel pipe mirror polishing
- Aluminumpipe hairline effect
- Copper tube mirror finish polishing
- Plastic pipe burrs removing
- Glass fiber pipe
FAQ
- Is this pipe polishing machine working for both round pipe and round bolt?
- Yes, it works for both of them.
- What is the difference between single-station machine and 3-station polishing machine?
- Single-head machine means there is only single one grindingwheel, while for 3-head machine there is several working position with different material of buffing wheels.
- What kind of grinding wheel do we use on our machine?
- We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.
- What is the life span of the abrasive wheel?
- 3500meters pipe polishing each.
- What is the assembly size of the abrasive wheel?
- Diameter 250mm, width 40x2mm, Inner hole diameter 32mm.
- Is the tube polishing machine fully automatic?
- We have both manual feeding and automatic feeding.
- Do you have machine in stock?
- Yes, we have ready stock for regular machines, but if your voltage are different from what in China we will need 7-10days to customize motor for you.
- What accessories are included in machine?

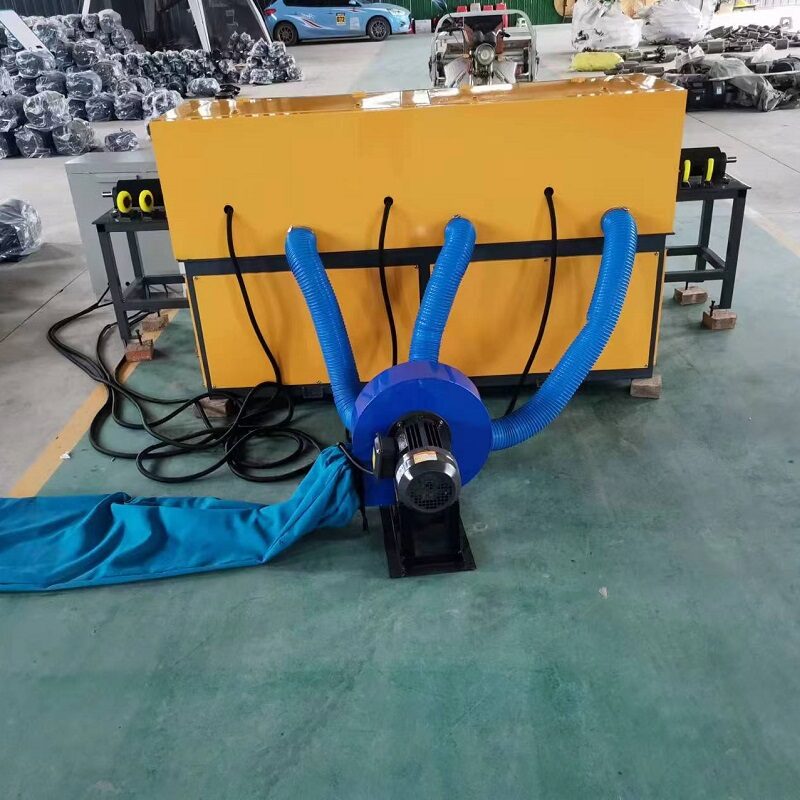

- One set free abrasive wheel and air blower, dust collector
- How is the packaging?
- We use wrapping film and wooden crate to pack each machine.
