Tube Polisher

The main purpose of tube polisher tube polishing machine is for polishing industry round rod parts and round tubes for such as hardware, electroplating, vehicle accessories, steel and wood furniture and standard parts. It can improve work efficiency, improve the surface finish of the workpiece. It can be used for polishing, removing rust, hair line finish, grinding, and descale pipes and bars of various materials, such as iron, copper, zinc alloy, aluminum alloy, stainless steel, titanium alloy and other materials.

PRODUCT SPECIFICATION

• Tube polisher
• Model:WSPR-1-100
• Working capacity (min.and max.diameter):2-100mm
• Working capacity (min.and max.pipe length):1-3000mm
• Station no.:1
• Feeding speed: 1-6m/min(adjustable, stepless speed adjusting)
• Abrasive wheel speed: 2800rpm
• Abrasive wheel size:Dia250xthickness80mm,hole32mm
• Wheel motor:4kw
• Feeding motor:0.4kw
• Total power:4.4kw
• Consumption:9A
• Voltage:single-phase / 3-phase customized
• Standard with 1 set grinding wheel
• Gross weight:200kgs
• Dimension:950x950x1100mm (wooden case size)

APPLICATION

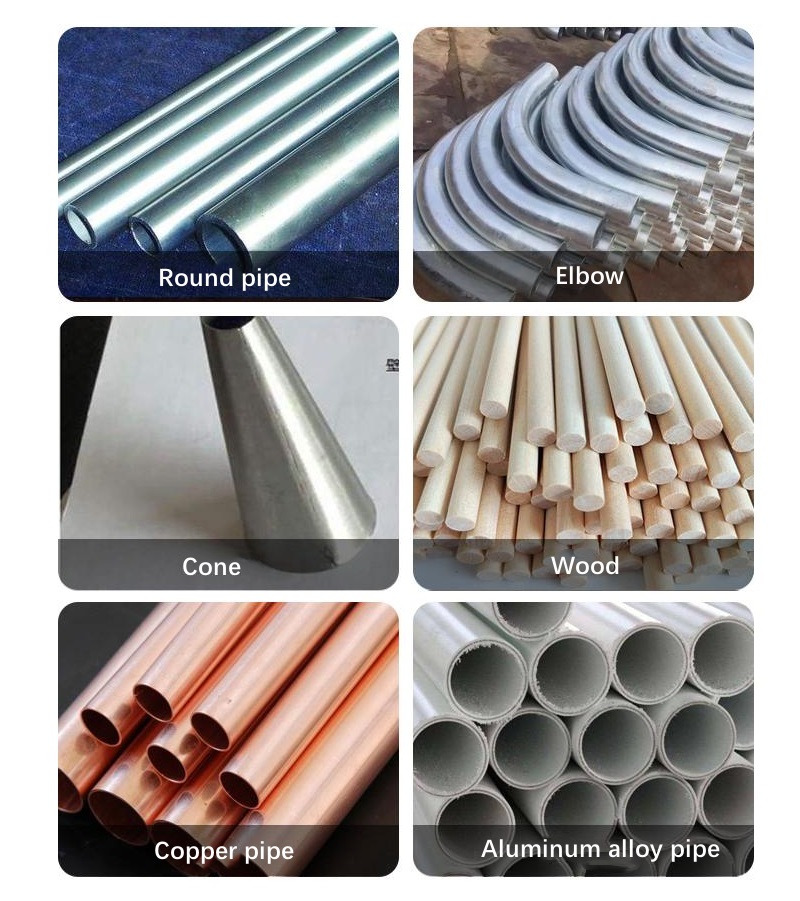

Tube polisher are widely used in below applications.

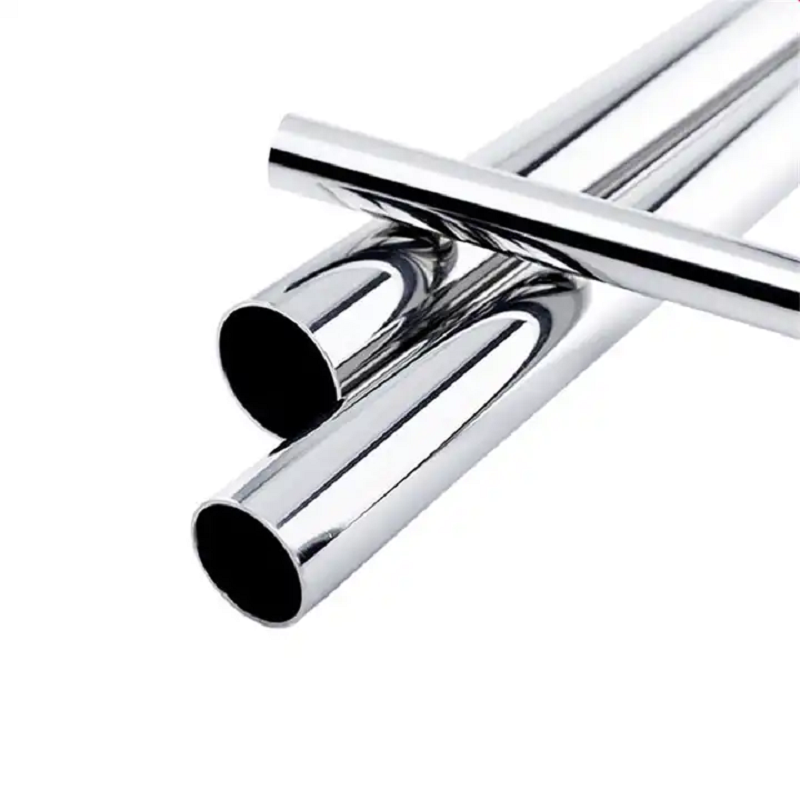

• stainless steel tube polishing
• steel tube polishing
• aluminum tube polishing
• copper tube polishing

FAQ

• Who are we?
• We are professional tubepolishing machine company located in Xingtai city of China, we are close to Port Tianjin and Port Qingdao. We mainly sell to North America, Europe and the Middle East countries.

• What is the difference between single-station machine and multi-station polishing machine?
• Single-head machine means there is only single one polishing wheel while for multi-head machine there is several working position with different material of polishing

• Can we add tube stands to the manual feeding polishing machine?
• Yes

• What kind of polishing wheels do we choose on our tubepolishing machine to get mirror finish?
• We will choose different material and grit wheels according to client requirement.For instance, if we use an 8-head tube polishing machine to polish a copper tube for getting mirror effect, we will probably use 600#,800#,1000#,1000#1200# in the first five wheels and hemp fiber wheels for the sixth and seventh wheels, at the last station we use a cloth wheel.

• What is the life span of the abrasive wheel?
• 3500meters tubepolishing each.

• Do you have machine in stock?
• Yes, we have ready stock for regular machines, but if your voltage are different from what in China we will need 7-10days to customize motor for you.
