Tube Polishing Machines With Vibrating Feeder
- Technical Details
- Tube polishing machines with vibrating feeder
- no: WSPR-1-100
- Working capacity (min.and max.diameter):2-100mm
- Station no.:1
- Feeding speed:0-6m/min(adjustable)
- Abrasive wheel speed:1400rpm
- Abrasive wheel size:Dia250xthickness80mm,hole32mm
- Wheel motor:4kw
- Feeding motor: 0.4kw
- Total power:4.4kw
- Voltage:single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:200kgs
- Dimension:950x950x1100(H) (wooden case size)
INTRODUCTION
The tube polishing machines with vibrating feeder can feed small and short tubings automatically to the polishing head of machine, it save the time for worker to insert short tubes one by one by hand to machine.
PRODUCT SPECIFICATION
- Tube polishing machines with vibrating feeder
- no: WSPR-1-100
- Working capacity (min.and max.diameter):2-100mm
- Station no.:1
- Feeding speed:0-6m/min(adjustable)
- Abrasive wheel speed:1400rpm
- Abrasive wheel size:Dia250xthickness80mm,hole32mm
- Wheel motor:4kw
- Feeding motor: 0.4kw
- Total power:4.4kw
- Voltage:single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:200kgs
- Dimension:950x950x1100(H) (wooden case size)
| Content | Data | Content | Data | ||||
| Working capacity | 2-100mm diameter | Wheel motor | 4kw | ||||
| Working capacity | Length 1mm-3000mm | Feeding motor | 0.4kw | ||||
| Station no. | One Station | Voltage | single-phase / 3-phase | ||||
| Feeding speed | 1-6m/min(adjustable) | Gross weight | 200kgs | ||||
| Abrasive wheel speed | 2800rpm | Dimension | 950*950*1100mm |
APPLICATION
Suitable for iron pipes, steel pipes, stainless steel pipes, copper pipes, aluminum pipes, etc.
Mainly used for rust removal and polishing in hardware manufacturing, vehicle parts, hydraulic cylinders, steel-wood furniture, instrument machinery, standard parts, and before and after electroplating, from rough polishing to fine polishing.
FAQ
- What can you purchase from us?
- All kind of grinding and polishing machines, such as round and rectangular pipe polishing machine, wire rod polishing machine, metal plate polishing machine etc..
- How we guarantee the quality?
- We will test at least one pipes on every polishing machine before shipping out.
- For a taper shape metal pipe, can both big diameter side and smaller diameter side been polished well?
- Yes, this machine can polish all position on a cone shape pipe.

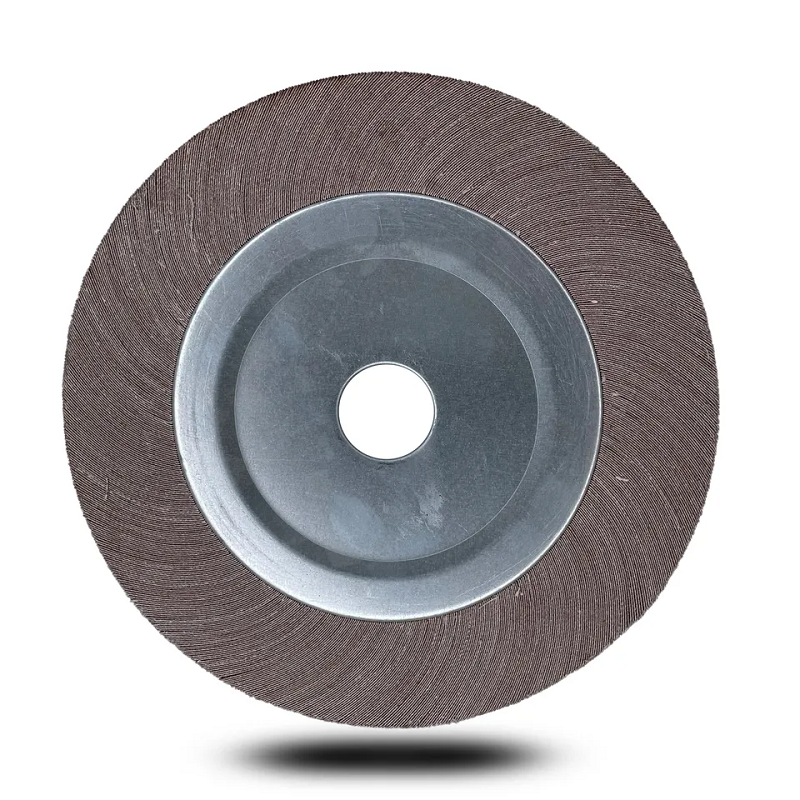

- What kind of grinding wheel do we use on our machine?

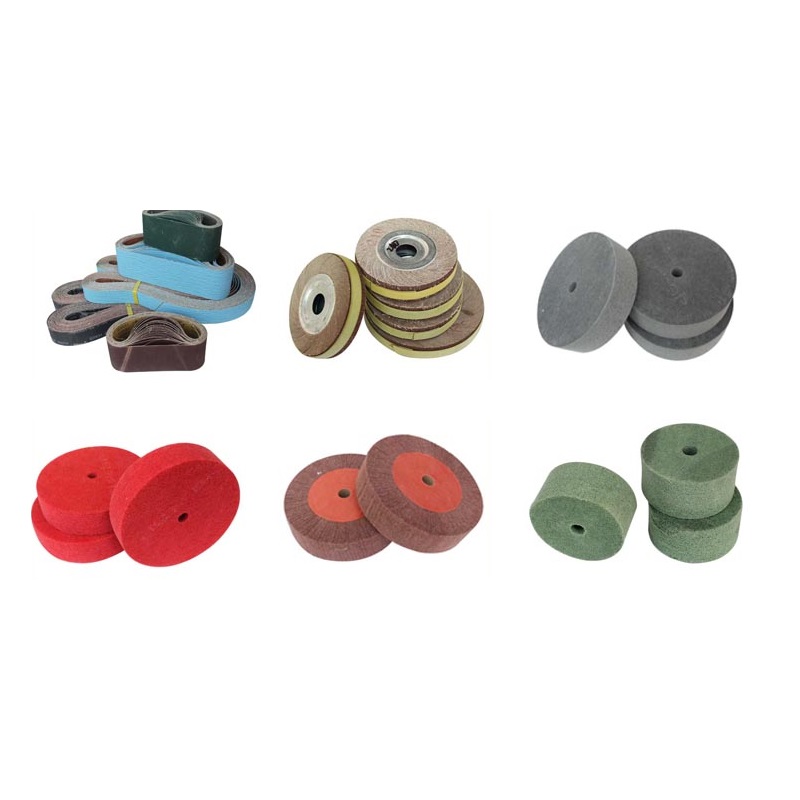

- We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.
- What is the life span of the abrasive wheel?
- 3500meters pipe polishing each.
- What is the assembly size of the abrasive wheel?
- Diameter 250mm, width 40x2mm, Inner hole diameter 32mm.
- Do you have machine in stock?
- Yes, we have ready stock for regular machines, but if your voltage are different from what in China we will need 7-10days to customize motor for you.
- What accessories are included in machine?
- One set free abrasive wheel and air blower, dust collector
- How is the packaging?
- We use wrapping film and wooden crate to pack each machine.
