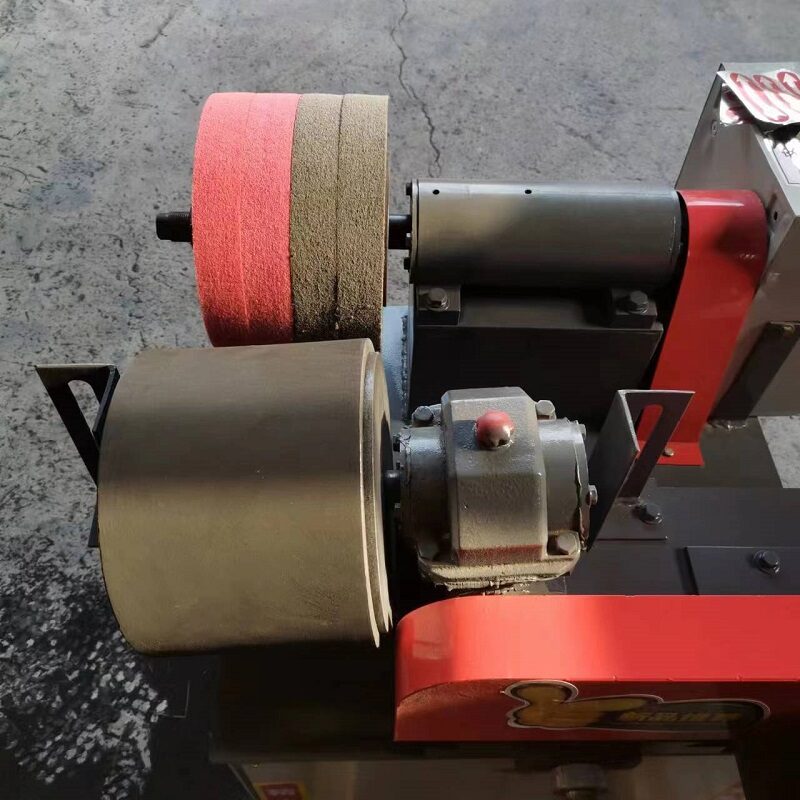

Tube rust removal machine
- Technical Details
- Tube rust removal machine
- Model no.: WSPR-1-100L
- Working capacity (min.and max.diameter) : 3-100mm
- Working capacity (min.and max.pipe length): 1-3000mm
- Station no.:1
- Feeding speed:1-6m/min(adjustable, stepless speed adjusting)
- Abrasive wheel speed:2800rpm
- Abrasive wheel size:Dia250xthickness customized,hole32mm
- Wheel motor:4kw
- Feeding motor:0.4kw
- Total power:4.4kw
- Consumption:9A
- Voltage:single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:220kgs
- Dimension:950x950x1100 (wooden case size)
- The abrasive wheel can be combined with several different grit wheels.
Our tube rust removal machine are for small tube polishing. For some extremely small and short tubes. Since it is difficult for small tubes to go through multi-station machine, we can customize this special machine with wider grinding wheel. In the meantime, the cost can be lower for a single head machine than a multi-head machine. In the regular machin, on each polishing head there is 2pcs 4cm abrasive wheel, but in this machine you can put on 4pcs 4cm wheels in different grit, for instance #320,#400,#600,#800.
PRODUCT SPECIFICATION
- Tube rust removal machine
- Model no.: WSPR-1-100L
- Working capacity (min.and max.diameter) : 3-100mm
- Working capacity (min.and max.pipe length): 1-3000mm
- Station no.:1
- Feeding speed:1-6m/min(adjustable, stepless speed adjusting)
- Abrasive wheel speed:2800rpm
- Abrasive wheel size:Dia250xthickness customized,hole32mm
- Wheel motor:4kw
- Feeding motor:0.4kw
- Total power:4.4kw
- Consumption:9A
- Voltage:single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:220kgs
- Dimension:950x950x1100 (wooden case size)
- The abrasive wheel can be combined with several different grit wheels.
| Content | Data | Content | Data | ||||
| Working capacity | 3-100mm diameter | Wheel motor | 4kw | ||||
| Working capacity | Length 1mm-3000mm | Feeding motor | 0.4kw | ||||
| Station no. | One Station | Voltage | single-phase / 3-phase | ||||
| Feeding speed | 1-6m/min(adjustable) | Gross weight | 220kgs | ||||
| Abrasive wheel speed | 2800rpm | Dimension | 950*950*1100mm |
APPLICATION
Pipe polishing machine are widely used in below applications.
- Mirror effect for stainless steel pipe
- Steel pipe mirror polishing
- Aluminumpipe hairline effect
- Copper tube mirror finish polishing
- Plastic pipe burrs removing
FAQ
- Is this pipe polishing machine working for both round pipe and round bolt?
- Yes, it works for both of them.
- What kind of grinding wheel do we use on our machine?
- We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.
- What is the life span of the abrasive wheel?
- 3500meters pipe polishing each.
- Is the tube polishing machine fully automatic?
- We have both manual feeding and automatic feeding.
- Do you have machine in stock?
- Yes, we have ready stock for regular machines, but if your voltage are different from what in China we will need 7-10days to customize motor for you.
- What accessories are included in machine?
- One set free abrasive wheel and air blower, dust collector
- How to place order?
- We accept T/T payment directly to our company account and we can also accept payment through Paypal and westernunion. We can ship by sea to sea port nearest to your city or ship to door. We do not have MOQ for our machines, we can ship any quantity.
