Tube Sander With Wire Brush
- Technical Details
- Tube sander with wire brush
- no: WSPR-1-100
- Working capacity (min.and max.diameter):2-100mm
- Station no.:1
- Feeding speed:0-6m/min(adjustable)
- Abrasive wheel speed:1400rpm
- Abrasive wheel size:Dia250xthickness80mm,hole32mm
- Wheel motor:4kw
- Feeding motor:0.4kw
- Total power:4.4kw
- Voltage:single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:200kgs
- Dimension:950x950x1100(H) (wooden case size)

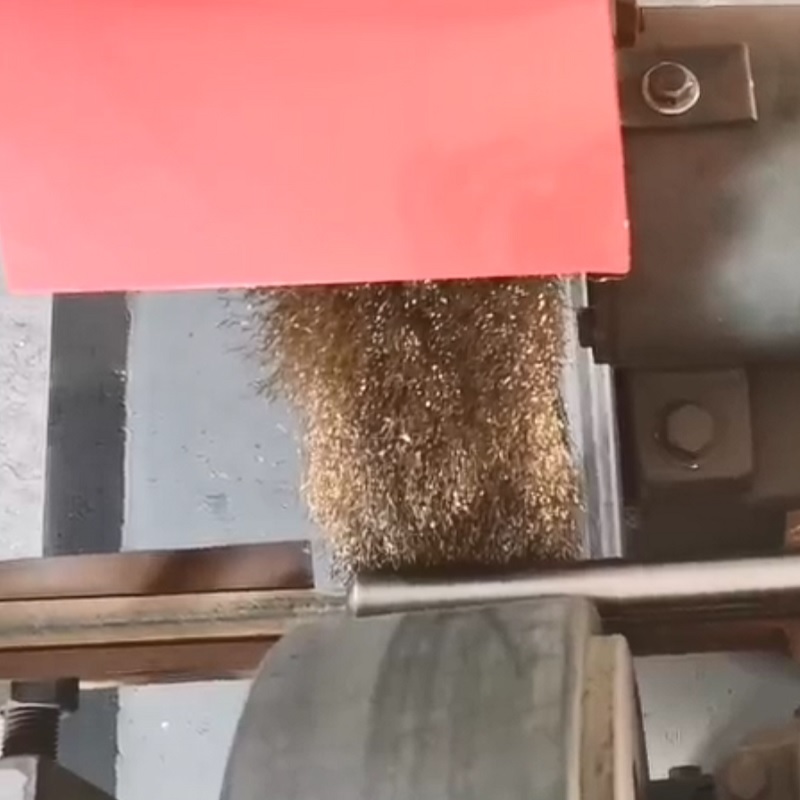

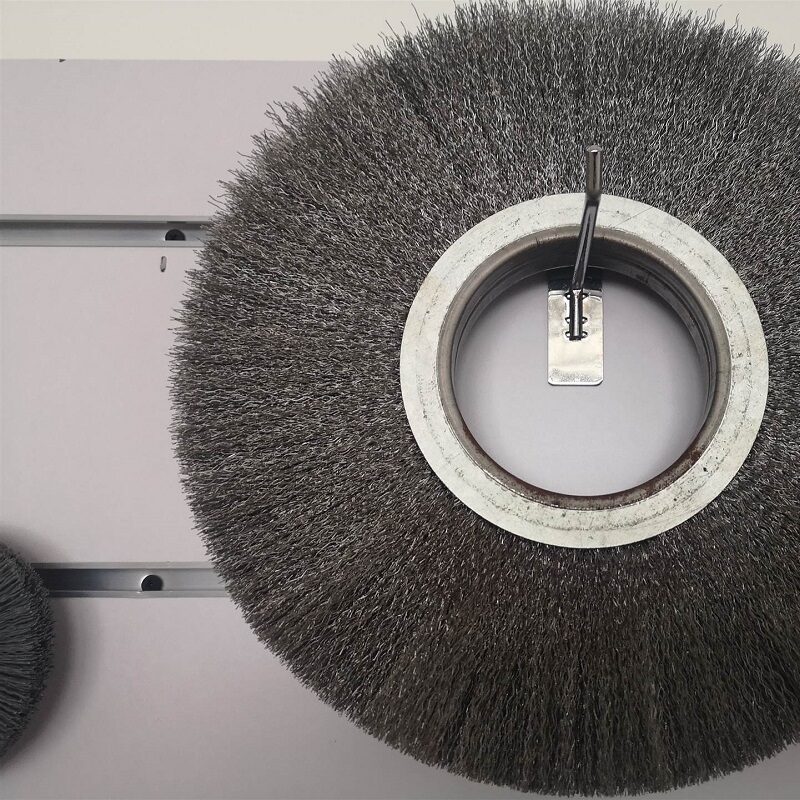

Tube sander with wire brush can be used for polishing various metal tubes, there is wire brush wheel, nylon wheel and cloth wheel for reaching different finish.
PRODUCT SPECIFICATION
- Tube sander with wire brush
- no: WSPR-1-100
- Working capacity (min.and max.diameter):2-100mm
- Station no.:1
- Feeding speed:0-6m/min(adjustable)
- Abrasive wheel speed:1400rpm
- Abrasive wheel size:Dia250xthickness80mm,hole32mm
- Wheel motor:4kw
- Feeding motor:0.4kw
- Total power:4.4kw
- Voltage:single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:200kgs
- Dimension:950x950x1100(H) (wooden case size)
| Content | Data | Content | Data | ||||
| Working capacity | 2-100mm diameter | Wheel motor | 4kw | ||||
| Working capacity | Length 1mm-3000mm | Feeding motor | 0.4kw | ||||
| Station no. | One Station | Voltage | single-phase / 3-phase | ||||
| Feeding speed | 1-6m/min(adjustable) | Gross weight | 200kgs | ||||
| Abrasive wheel speed | 2800rpm | Dimension | 950*950*1100mm |
FEATURE
- Suitable for iron pipes, steel pipes, stainless steel pipes, copper pipes, aluminum pipes etc..
- Mainly used for rust removal and polishing in hardware manufacturing, vehicle parts, hydraulic cylinders, steel-wood furniture, standard parts, and before and after electroplating, from rough polishing to fine polishing.

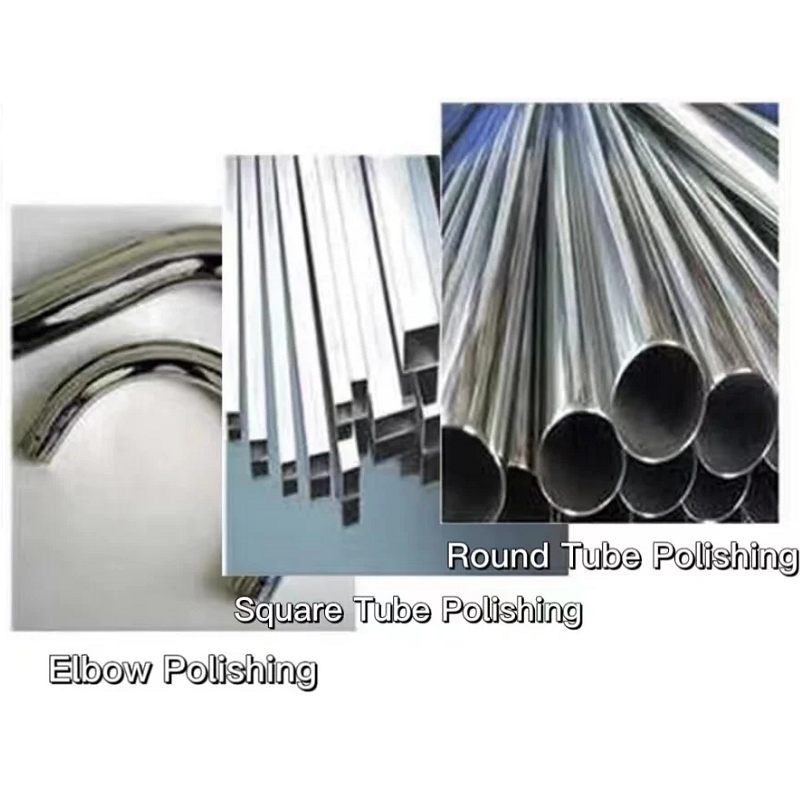

- The round pipe polishing machine is to polish round pipes, round sticks and slender shafts.
- Machine can be standard with various polishing wheels, such as flap wheels, hemp wheels, nylon wheels, wool wheels, cloth wheels, PVA wheel etc..
- The stepless speed control guide wheel is simple to operate.
- The optimized steel structure ensure machine stable and durable, the back side output hole connected with a dust removal blower.
FAQ
- Why should you buy from us not from other suppliers?
- We focus on metal pipe polishing machine and after-sale service.
- How we guarantee the quality?
- We will test at least one pipes on every polishing machine before shipping out.
- For a taper shape metal pipe, can both big diameter side and smaller diameter side been polished well?
- Yes, this machine can polish all position on a cone shape pipe.
- What kind of grinding wheel do we use on our machine?
- We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.
- What is the life span of the abrasive wheel?
- 3500meters pipe polishing each.
- What is the assembly size of the abrasive wheel?
- Diameter 250mm, width 40x2mm, Inner hole diameter 32mm.
- Do you have machine in stock?
- Yes, we have ready stock for regular machines, but if your voltage are different from what in China we will need 7-10days to customize motor for you.
- What accessories are included in machine?
- One set free abrasive wheel and air blower, dust collector
- How is the packaging?
- We use wrapping film and wooden crate to pack each machine.
